Packing Lithium-Ion Module With Module Status "Warning" (Critical)

Information

• The lithium-ion battery must only be packed by an appropriately trained and authorized person using the additional instructions "Packing critical batteries in new metal containers".
• Metal containers and hollow glass granulate (Extover® or PyroBubbles®) are required for packing a critical battery.
• The metal container and hollow glass granulate are supplied by a logistics expert named by Porsche, who will take away the packed battery (Europe).
• The metal container and hollow glass granulate are available from the dealer organization in the event of a critical battery (rest of the world).
• The critical battery must only be packed in a designated work area.
• The lithium-ion battery with battery status "Warning" (critical) must be disposed of i n accordance with local legal requirements and transport regulations.

1. Mask terminals of the lithium-ion module.
2. Open metal container.

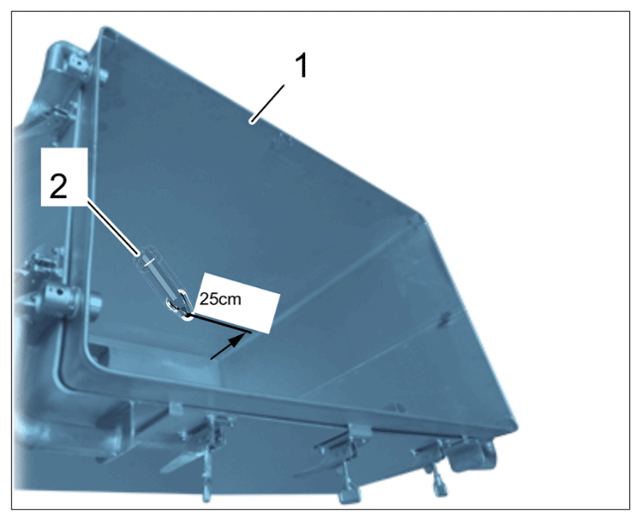

3. Measure 25 cm from the floor inside the metal container -1-  and mark this on the container wall (inside) using a water-resistant marker -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Height marking (shown as an example"

4. Wear protective clothing, breathing mask as wall as goggles and protective gloves.

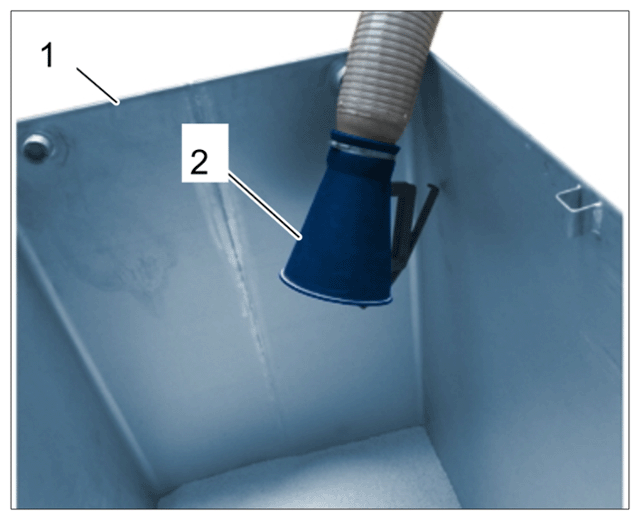

5. Position air extraction hose -2-  in the metal container -1-  in order to extract the dust and switch on the air extraction system.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Extraction (shown as an example)

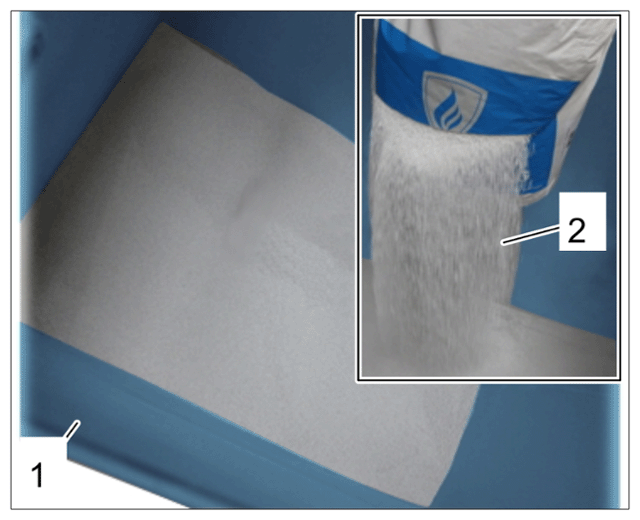

6. Fill hollow glass granulate -2-  into the metal container -1-  up to a height of 25 cm until the line marked on the inner wall of the container is completely covered by hollow glass granulate.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Filing hollow glass granulate

7. Place lithium-ion module on hollow glass granulate in the metal container.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sample illustration

   1. 7.1
      IMPORTANT: The gap -A-  between the lithium-ion module and metal container must be at least 12 cm.
   2. 7.2
      IMPORTANT: It must be possible to cover the lithium-ion module with at least 25 cm of hollow glass granulate from above.

   Information

   IMPORTANT: The metal container must be completely filled with hollow glass granulate, right up to the top edge.

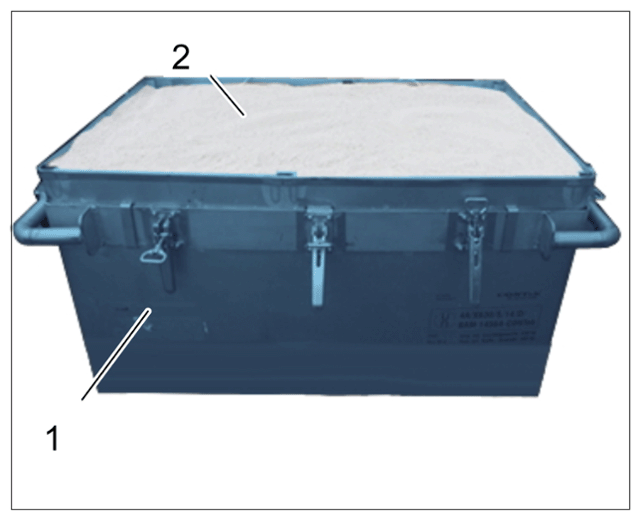

8. Fill the metal container up to the top edge with -1-  hollow glass granulate -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Filled metal container (shown as an example)

9. Close the metal container and secure it with the tension locks.

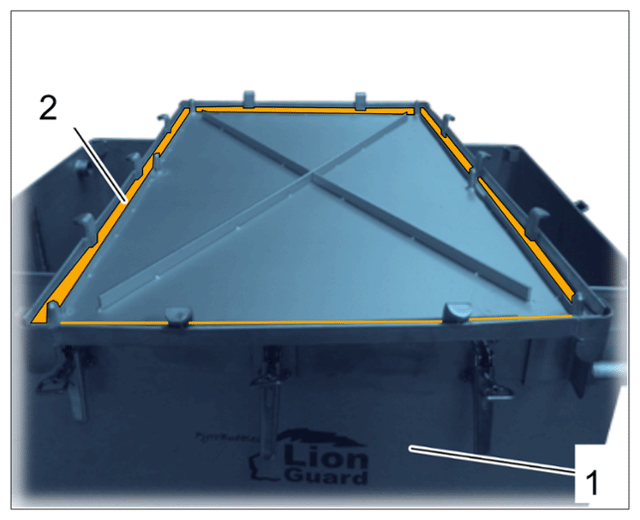

   1. 9.1 Visually inspect the lid seal on the -2-  metal container -1-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Visual inspection (shown as an example)

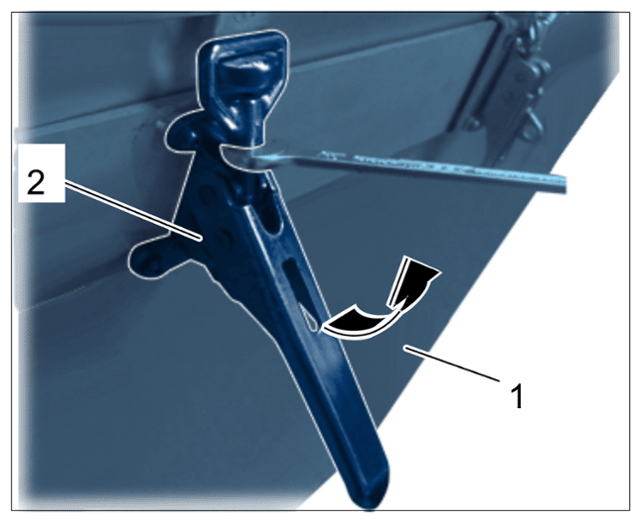

   2. 9.2 If necessary, adjust the tension locks -2-  using a lock nut so that the metal container lid -1-  is firmly sealed.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Adjust tension locks.

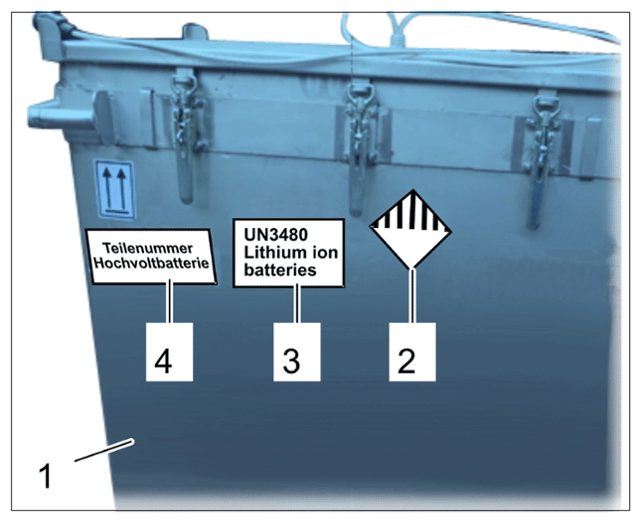

10. Affix hazardous goods stickers -2-  to the long side of the metal container -1-  in a clearly visible position.
11. Affix the UN 3480 sticker -3-  to the long side of the metal container -1-  next to the hazardous goods sticker.
12. Affix the part number (sticker) -4-  of the battery to the long side of the metal container -1-  next to the UN 3480 sticker, or write it in clearly legible writing using a water-resistant marker.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Labelling (shown as an example)
