Preliminary Work
- Disconnect the battery.
> WM, 2X00IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY
- Remove (side) luggage compartment trim panel (luggage compartment cover).
> 700619 REMOVING AND INSTALLING (SIDE) LUGGAGE COMPARTMENT TRIM PANEL (LUGGAGE COMPARTMENT COVER)
- Remove (centre) luggage compartment trim panel (luggage compartment cover).
> 700619 REMOVING AND INSTALLING (CENTRE) LUGGAGE COMPARTMENT TRIM PANEL (LUGGAGE COMPARTMENT COVER)
- Open power distributor (main fuse box) and disconnect cable for fuse elements and B+ line.
> WM, 978919 REMOVING AND INSTALLING POWER DISTRIBUTOR (HSB)
- Loosen fuse box in the luggage compartment.
> 978409 LOOSENING AND SECURING FUSE BOX IN THE LUGGAGE COMPARTMENT
- Remove tail light.
- Remove (lower part of) C-pillar trim panel.
> 706819 REMOVING AND INSTALLING (LOWER PART OF) C-PILLAR TRIM PANEL
- Remove PASM control unit.
- Remove trailer hitch control unit.
> 669619 REMOVING AND INSTALLING TRAILER HITCH CONTROL UNIT
Information
There is no need to remove the windscreen.
- Lower the headliner and set it down on the front seats.

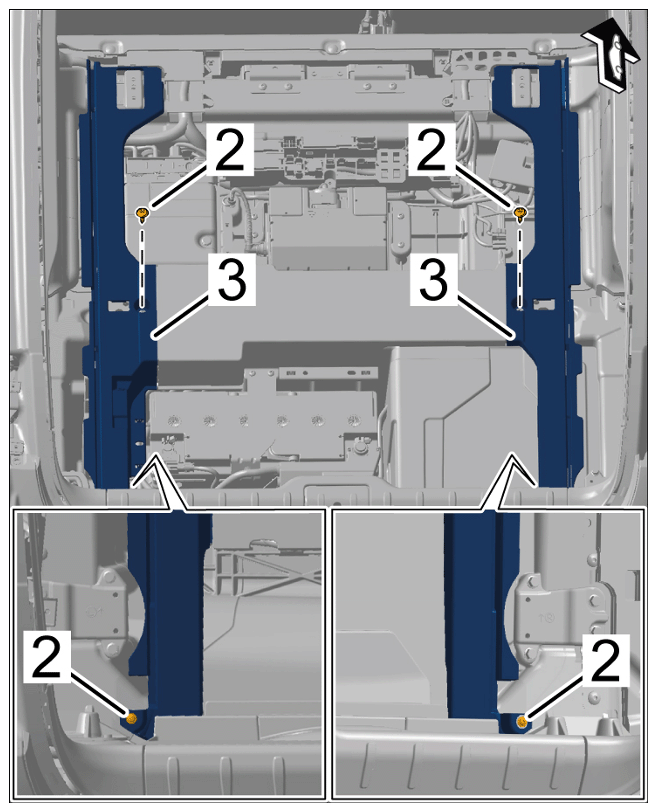

- Unscrew screws -2-
and unclip covers -3-
.
Luggage compartment covers
- Remove rear wheel housing liner.
> Removing and installing rear wheel housing liner
- Remove fuel tank.
> Removing and installing fuel tank
- Remove heat shields for rear bumper.
> Removing and installing rear heat shields
- Remove heat shields for rear silencer.
> Removing and installing rear heat shields
