Joining process

Information

Adhesive cartridges must only be used with piston-driven applicator guns.

1. Prepare bonding gun Hand-cartridge gun WE 1141  or Pneumatic gun, 18 bar WE 1672  or Pneumatic cartridge gun WE 1710  .

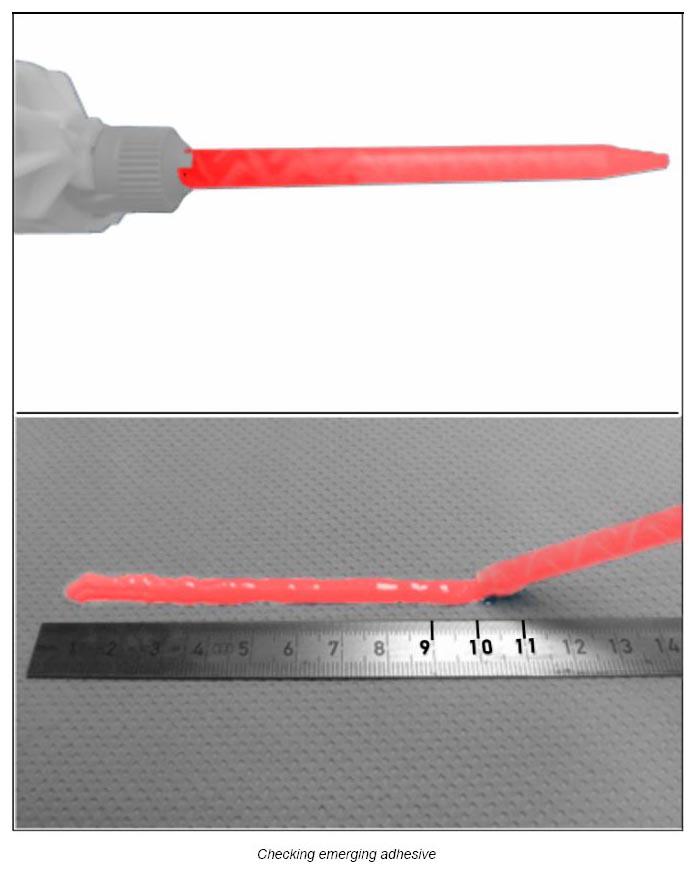

2. Press out adhesive without the mixing tube until both components emerge from the cartridge.
3. Fit mixing tube on the cartridge and check that adhesive comes out.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   1. 3.1. Make sure that the two-component adhesive is mixed evenly in the mixing tube.
   2. 3.2. Before applying adhesive to the joints, apply a 10-20 cm long bead of adhesive to a paper towel or similar item and dispose of it later. The hardening process can also be checked using this bead.
   3. 3.3. Also apply a bead of adhesive approx. 10 cm long to a paper towel or similar item for the sample test.

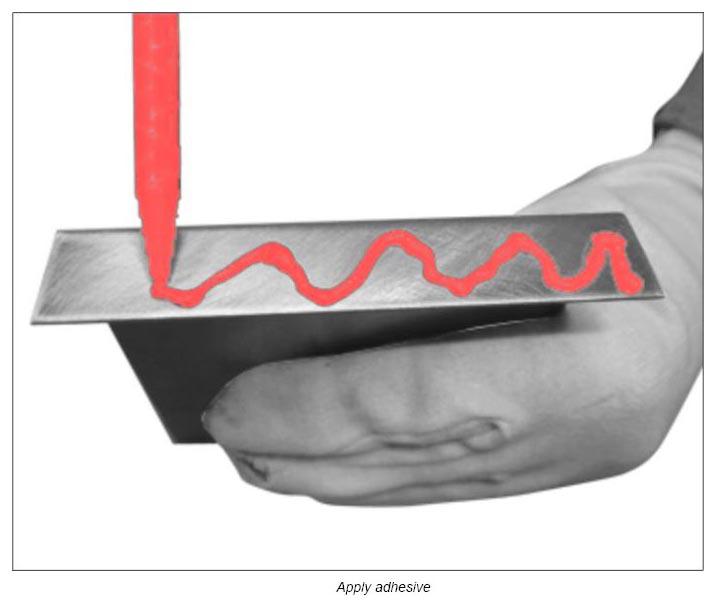

4. Apply adhesive.
   1. 4.1. Apply adhesive to both flanges of the joints.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

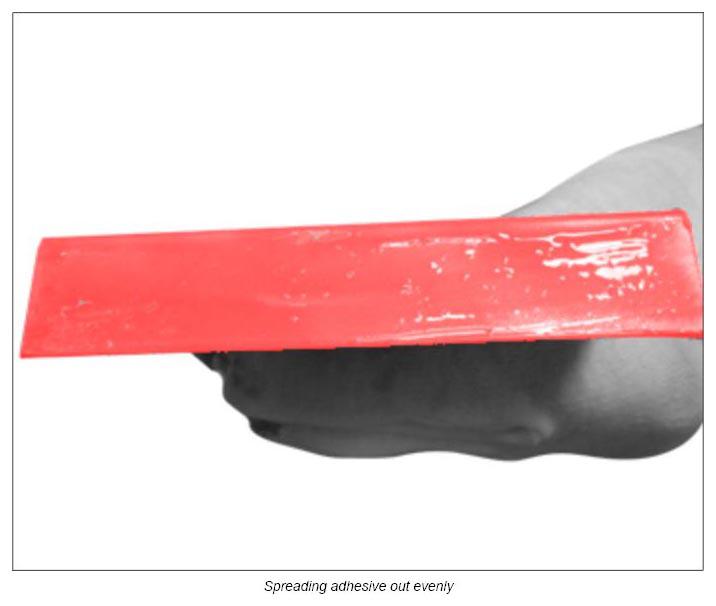

   2. 4.2. Spread adhesive over the surface of both flanges of the joint using a clean tool. → Application depth: 0.5 mm

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   3. 4.3. Areas without a cathodic-dip coating and exposed body panels in cavities must be brushed or filled with structural adhesive.

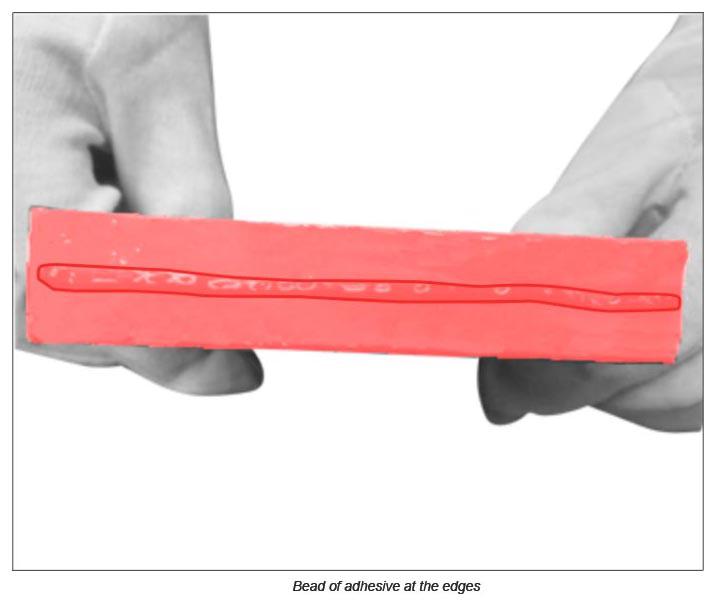

5. Apply an additional bead of adhesive in the center of the joint.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • When the adhesive oozes out along the entire length of the joint on both sides, enough adhesive has been applied  .
   • 1 195 ml cartridge is sufficient for a flange length of approx. 5 m  .

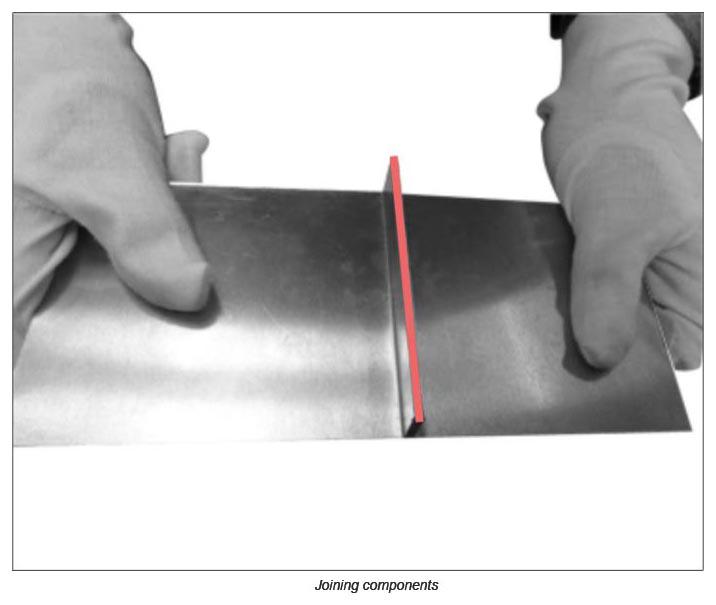

6. Join components.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   1. 6.1. Assemble parts, secure them and join them within the specified processing time.

      The joining process must take place immediately after applying adhesive in order to guarantee a high quality and reliable bond.

      Otherwise the adhesive bead must be removed and pre-treatment of the surface and application of the adhesive must be repeated.

      The layer thickness of the adhesive following joining must not be more than → Layer thickness: 1 mm  .

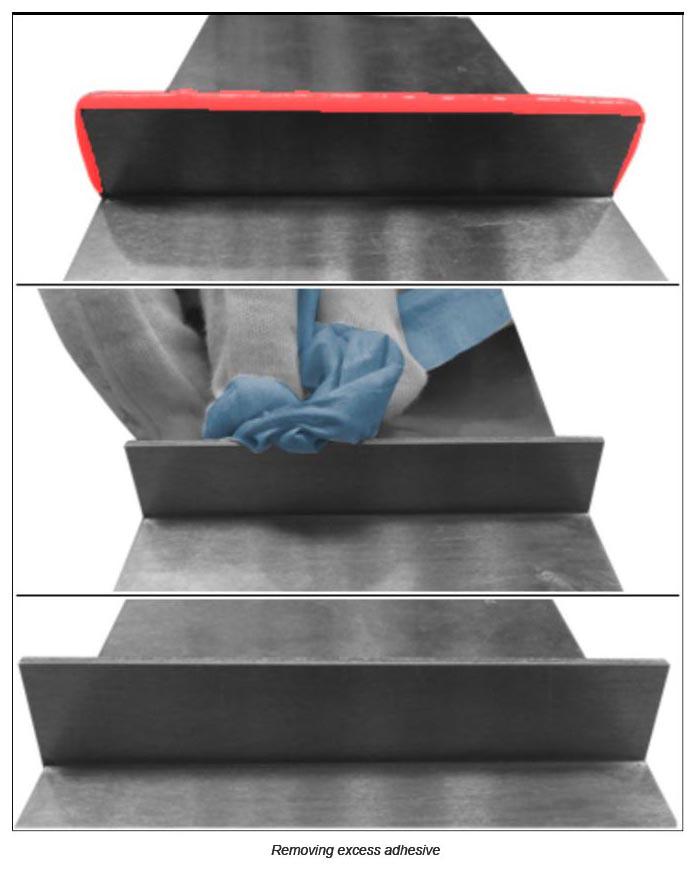

7. Remove any excess adhesive.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   1. 7.1. Remove excess adhesive with a clean cloth.
   2. 7.2. Give visible surfaces a final clean with a cloth soaked in acetone.

      Hardened material can only be removed by mechanical means.
