Welding aluminum

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Electric welding

Risk of electric shock or burns

→ Wear personal protective gear.

→ Disconnect both battery terminals.

→ Do not weld in a damp area or when it is wet under foot.

→ Move highly inflammable materials out of the work area. Vertilate the work area well.

→ Remove smoke gases with an extraction system.

→ Read specific safety information for the welder.

→ Check that welder is working perfectly before use.

Metal inert gas (MIG) welding is used for welding thin aluminum panels.
Argon is used as the inert gas.
The welder used is the welder WE 1784 .
The welding wire used is aluminum welding wire WE 1796 or aluminum welding wire WE 1797 .

Apply test welds to practice panels to make sure you are using the correct welder settings.
Information

Make the sheetmetal insert with a width of about → Width: 60 mm from the old or spare part.

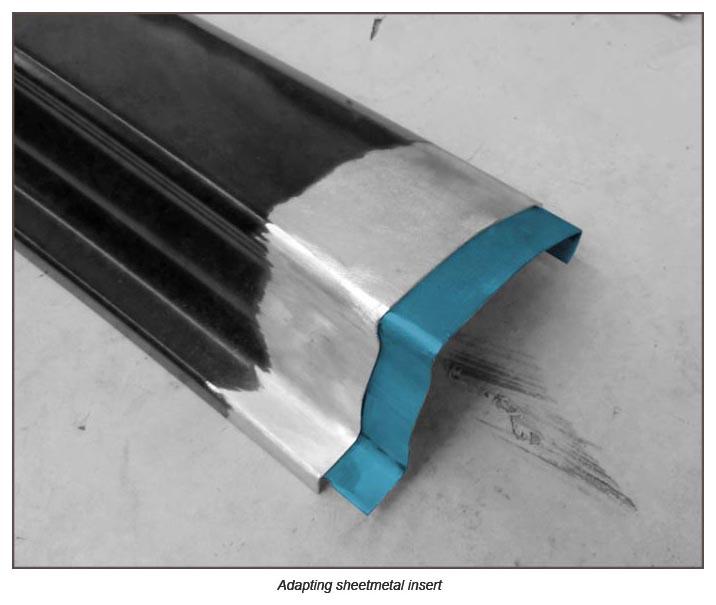

Adapt sheetmetal insert for welding backing strip to the contour of the repair area.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

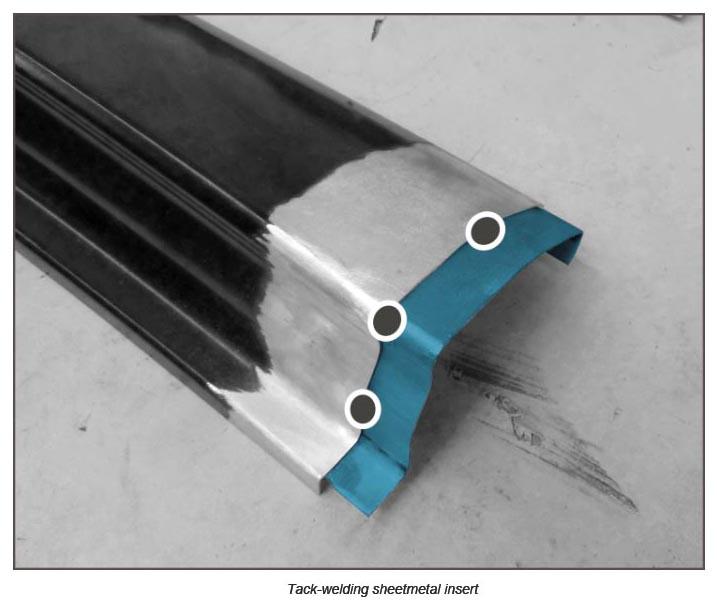

Secure sheetmetal insert to the body with tack-welds.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

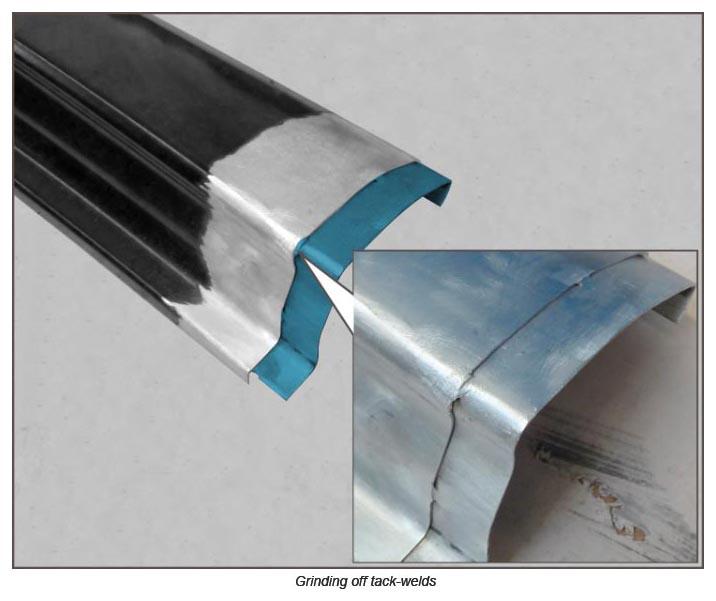

Grind off tack-welds on sheetmetal insert.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

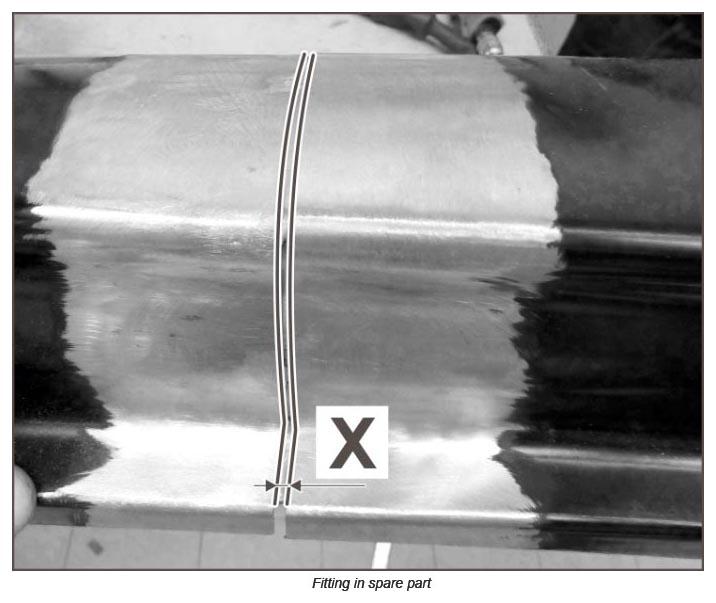

Always leave a gap -X- of → Width: 1 mm when fitting in the spare part.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

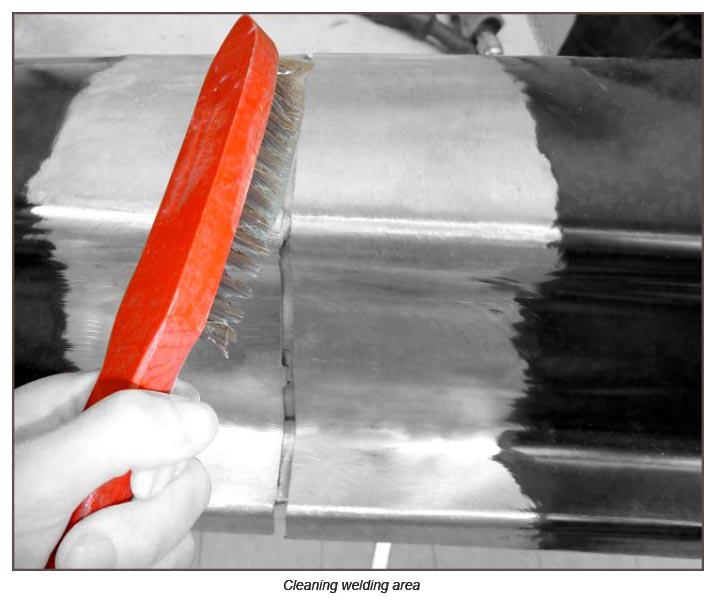

Grind the welding area down to bare metal.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

When joining spare parts, welding is always the last step.

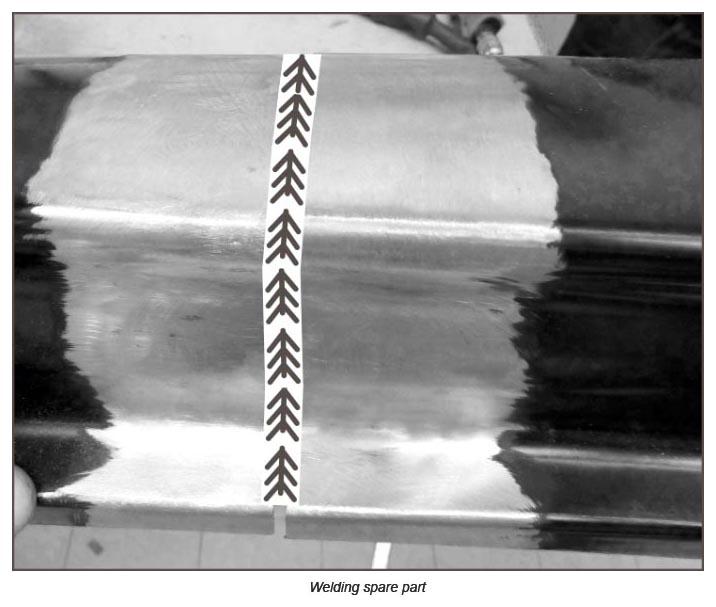

Weld spare part.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

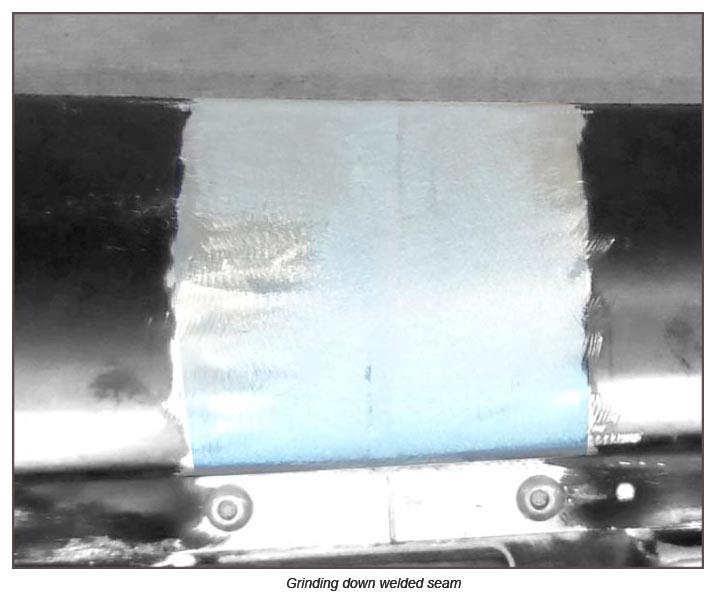

Grind down welded seam.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
After painting the repair area, apply cavity preservation on the entire area.
