Technical values

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

TORQUE SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1
Threaded joint		Tightening torque	6 Nm (4.5 ft. lb.)	+/- Nm (+/-0.5 ft. lb.)

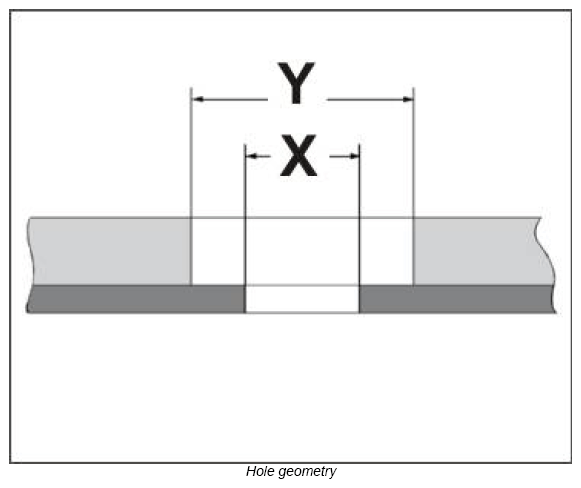

Predrilled hole	Dimension X	Diameter	3.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Through-bore	Dimension Y	Diameter	7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Threaded joint		Tightening torque	9.5 Nm (7 ft. lb.)	+/- Nm (+/-0.5 ft. lb.)
Predrilled hole	Dimension X	Diameter	4.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Through-bore	Dimension Y	Diameter	8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw	Screw in as far as head contact surface	Torque angle	+90°
Pilot bore	Dimension X	Diameter	3.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Through-bore	Dimension Y	Diameter	7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw	Screw in as far as head contact surface	Torque angle	+90°
Pilot bore	Dimension X	Diameter	3.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Through-bore	Dimension Y	Diameter	7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
