Seam seals

Information

Smooth off seam seal with a spatula after applying it to the marked areas.

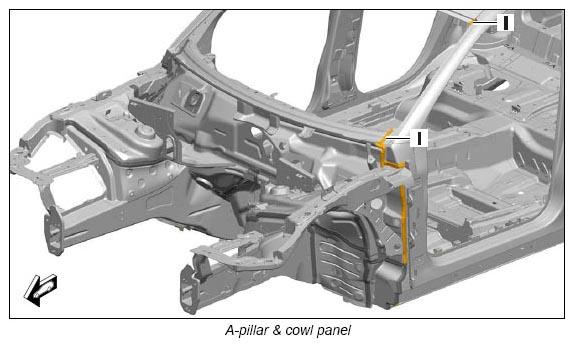

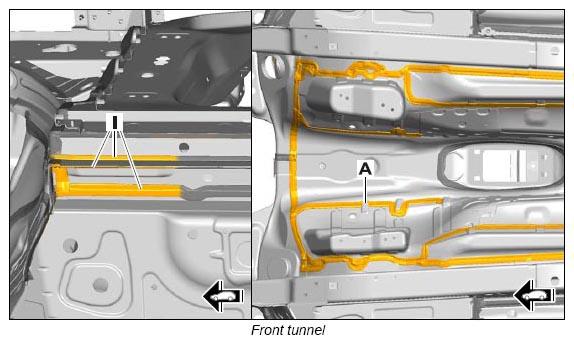

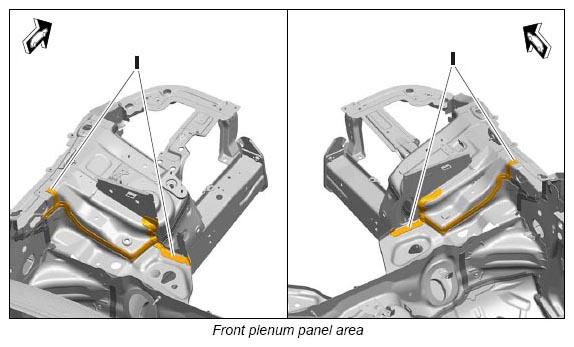

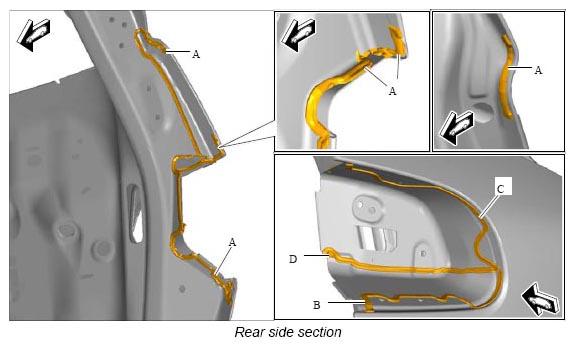

1. Coat area -I-  with body sealant.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Smooth off seam seal with a spatula after applying it to the marked areas.

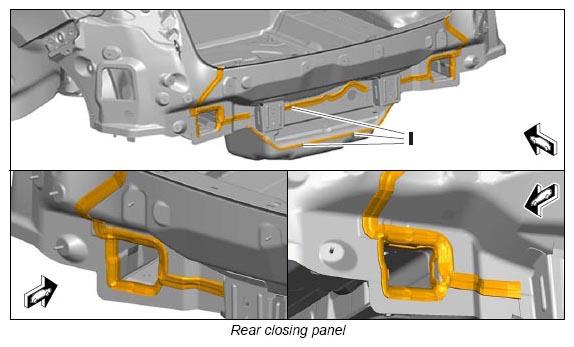

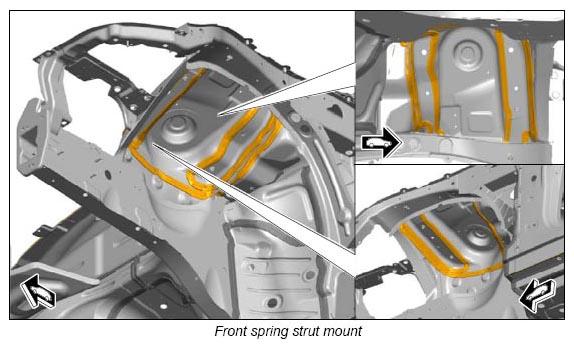

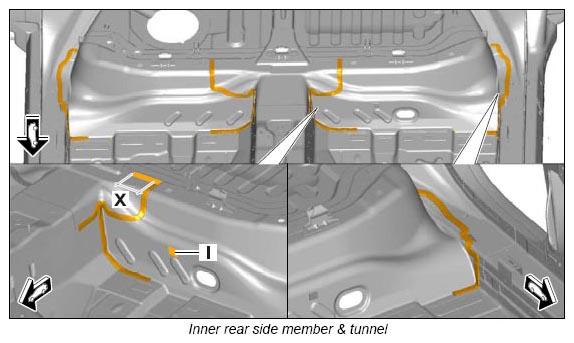

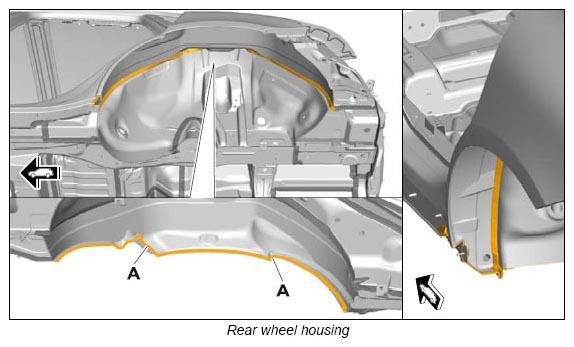

2. Apply body sealing compound in area -I-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Smooth off seam seal with a spatula after applying it to the marked areas.

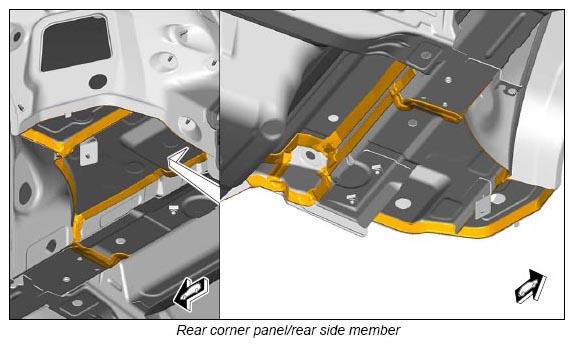

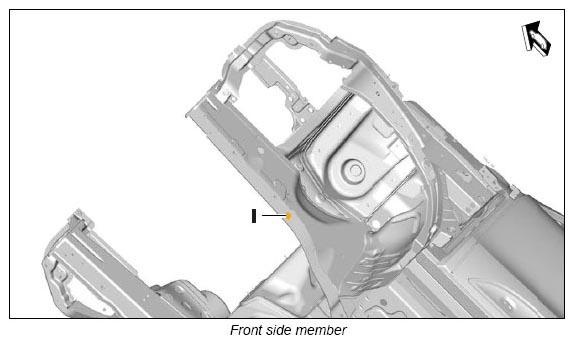

3. Apply body sealing compound in area -I-.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Smooth off seam seal with a spatula after applying it to the marked areas.

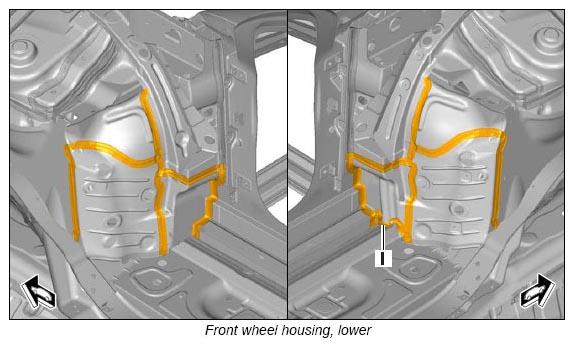

4. Apply body sealing compound in area -I-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

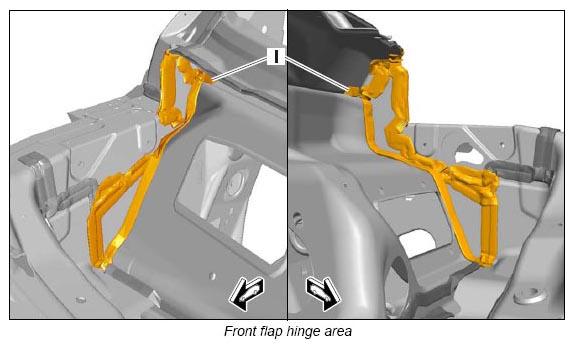

5. Seal fresh cut in area -A-  with body sealing compound.

   Information

   Smooth off seam seal with a spatula after applying it to the marked areas.

   1. 5.1. Apply body sealing compound in area -B;C & D-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

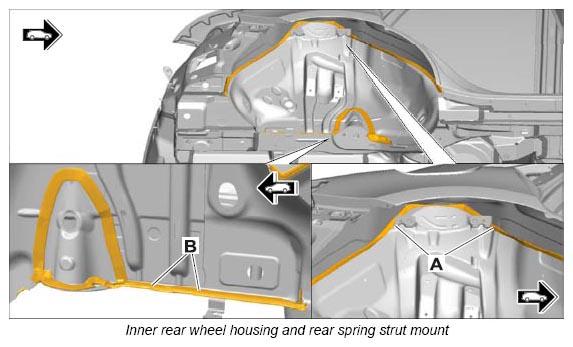

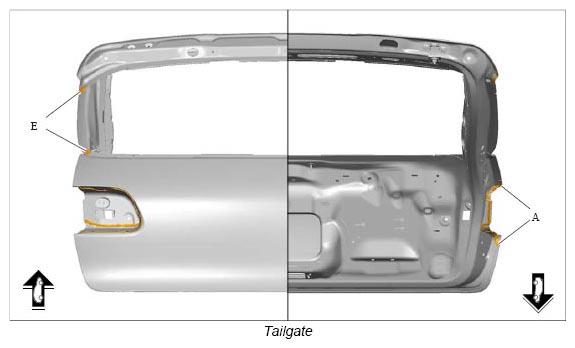

6. Seal fresh cut in area -E-  with body sealant → BODY SEALANT 000.043.303.60 and smooth it off.

   Information

   Smooth off seam seal with a spatula after applying it to the marked areas.

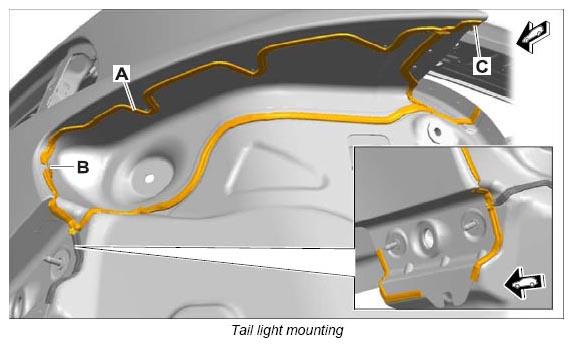

   1. 6.1. Coat area -A-  with body sealant.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

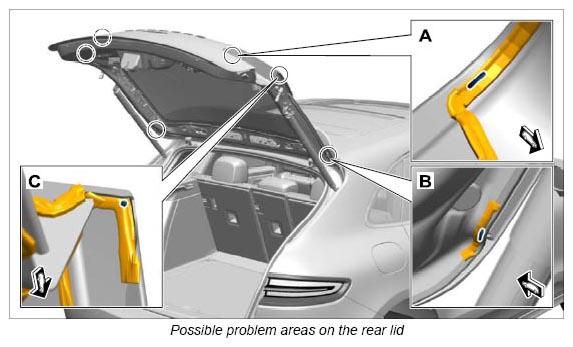

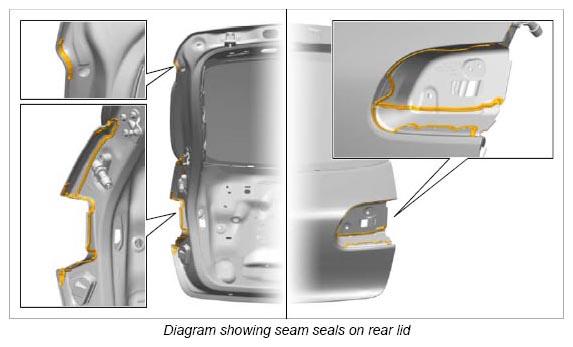

      If the sealing specifications are not observed, there is a higher risk of water leaking in  at the tailgate. The following overview shows the positions on the rear lid -A, B, C-  at which additional sealing measures are required.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Information

      Smooth off seam seal with a spatula after applying it to the marked areas.

7. Coat the areas of the rear lid shown with body sealant → BODY SEALANT 000.043.207.67.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Smooth off seam seal with a spatula after applying it to the marked areas.

8. Rework the rear lid at certain points on the cut-out for the tail light.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

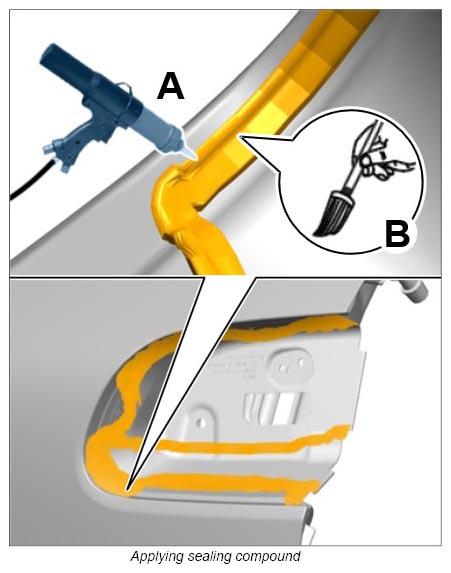

   1. 8.1. Apply body sealant → BODY SEALANT 000.043.303.60 as shown as an example and spread it out evenly.
   2. 8.2. Spread the body sealant → BODY SEALANT 000.043.303.60 towards the edges in order to guarantee leak-tightness. Smooth out even the smallest holes.
9. A leak test must be carried out on the rear lid after applying the seam seal. To do this, follow the instructions for carrying out the leak test in the document → WE9000 WE90 Workshop campaign - Checking rear lid and reworking it if necessary  .

   Information

   Smooth off seam seal with a spatula after applying it to the marked areas.

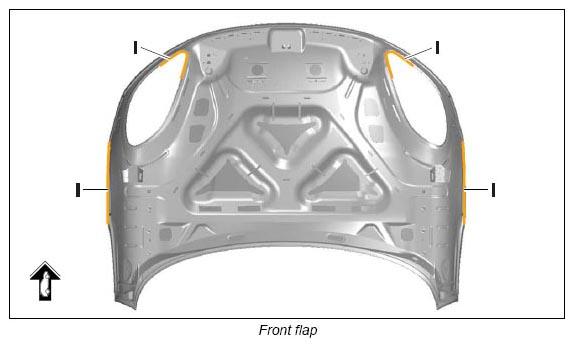

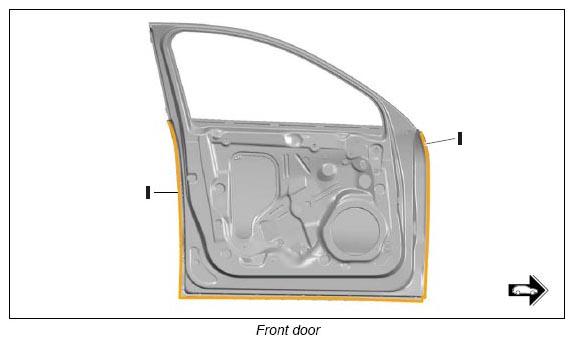

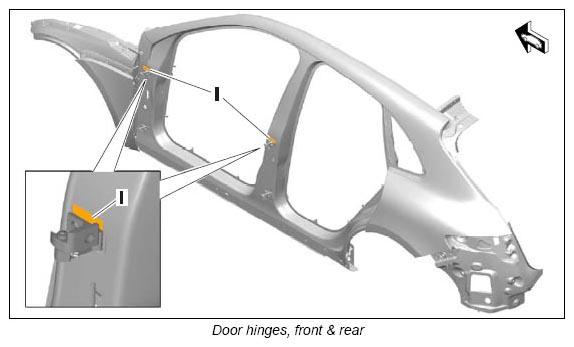

10. Coat area -I-  with body sealant.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

11. Area -I-  overlapping emerging adhesive.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Smooth off seam seal with a spatula after applying it to the marked areas.

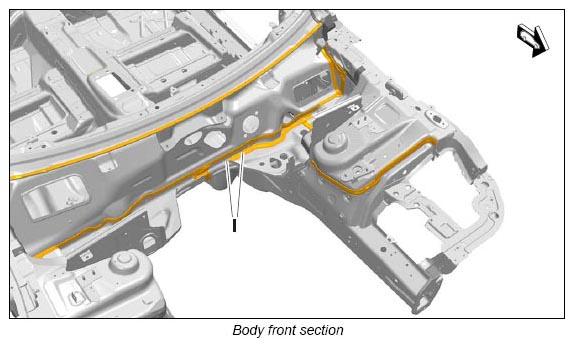

12. Apply body sealing compound in area -I-.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Smooth off seam seal with a spatula after applying it to the marked areas.

13. Apply body sealing compound in area -I-.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Smooth off seam seal with a spatula after applying it to the marked areas.

14. Apply body sealing compound in area -I-.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Smooth off seam seal with a spatula after applying it to the marked areas.

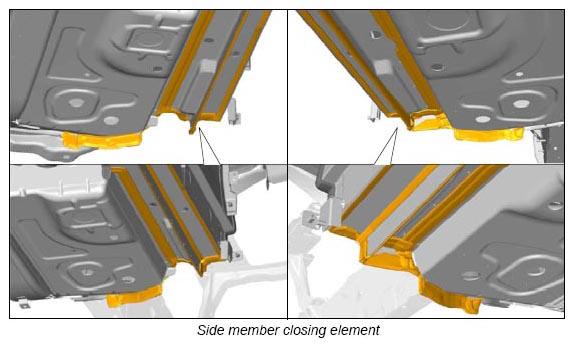

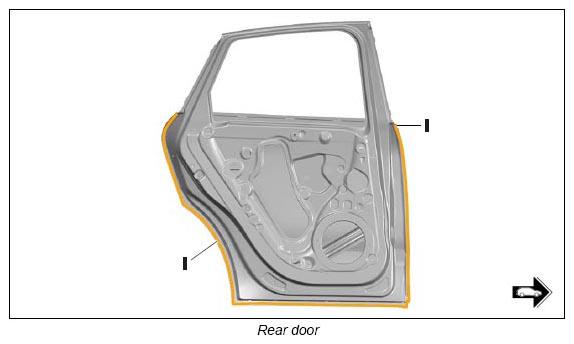

15. Apply body sealing compound in area -I-.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Smooth off seam seal with a spatula after applying it to the marked areas.

16. Apply body sealing compound in area -I-.
    1. 16.1. Area -X-  overlapping bonded seam. → Distance: 50 mm

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

17. Seal fresh cut in area -I-  with body sealing compound and smooth off.
    1. 17.1. Area -A-  - visible seam.

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

       Information

       Smooth off seam seal with a spatula after applying it to the marked areas.

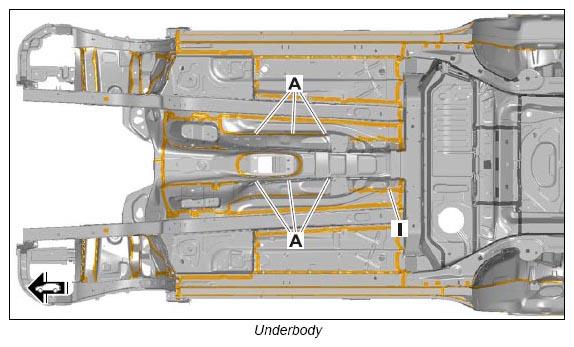

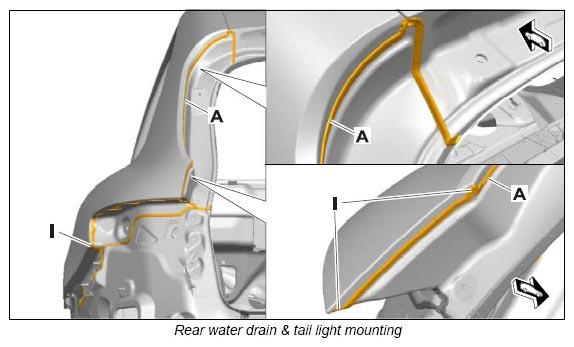

18. Apply body sealing compound in area -A;B-.
    1. 18.1. Seal fresh cut in area -C-  with body sealing compound and smooth off.

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

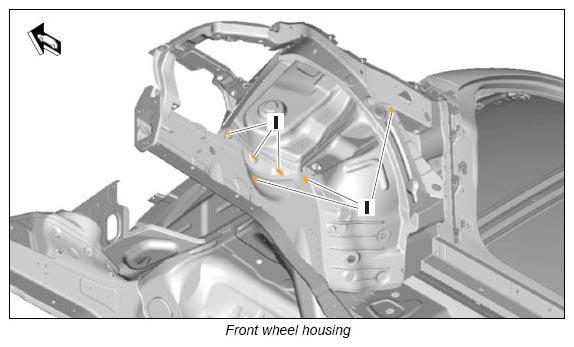

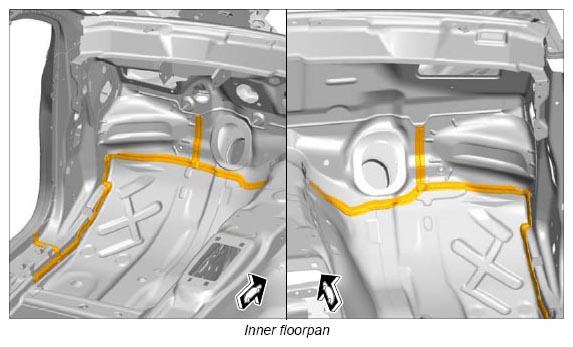

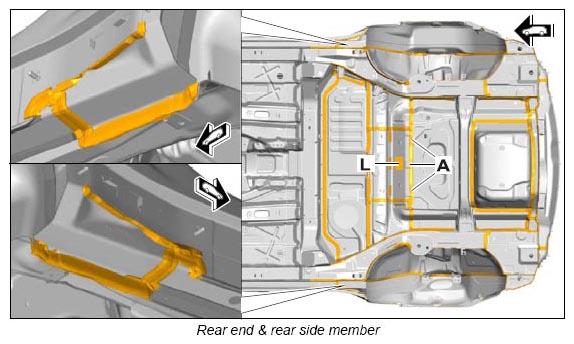

19. Seal off drain seams in area -I-.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Smooth off seam seal with a spatula after applying it to the marked areas.

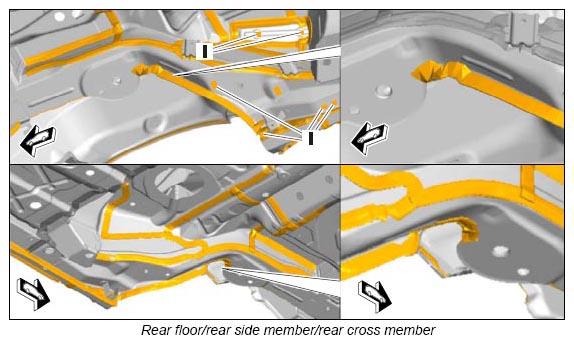

20. Apply body sealing compound in area -I-.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

21. Keep drain seams clear in area -A-.

    Information

    Smooth off seam seal with a spatula after applying it to the marked areas.

    1. 21.1. Apply body sealing compound in area -I-.

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

22. Keep drain seams clear in area -A-.

    Information

    Smooth off seam seal with a spatula after applying it to the marked areas.

    1. 22.1. Apply body sealing compound in area -I-.

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

23. Close off drain seams in area -A-.

    Information

    Smooth off seam seal with a spatula after applying it to the marked areas.

    1. 23.1. Apply body sealing compound in area -L-.

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

       Information

       Smooth off seam seal with a spatula after applying it to the marked areas.

24. Apply body sealing compound in area -I-.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

25. Remove body sealing compound in area -A-.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

26. Keep drain seams clear in area -B-.
    1. 26.1. Area -A-  overlapping bonded seam.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
