Pulling punch rivets

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

The following description is intended only as a guide. A description of the steps involved and the various areas of application can be found in the operating instructions provided with the respective device.

Set up stud welder and prepare components for welding. → 5X00IN11 STUD WELDING

PULLING PUNCH RIVETS WELDING PARAMETERS SPECIFICATIONS

Bolt	Welding time [ms]	Amperage rating [A]	Lift [mm]	Gas pre-flow time [ms]	Gas parameters [l/min]
Stainless-steel bolt, M6	32	650	1.0	1, 000
Stainless-steel bolt, M5	30	600	1.0	1, 000

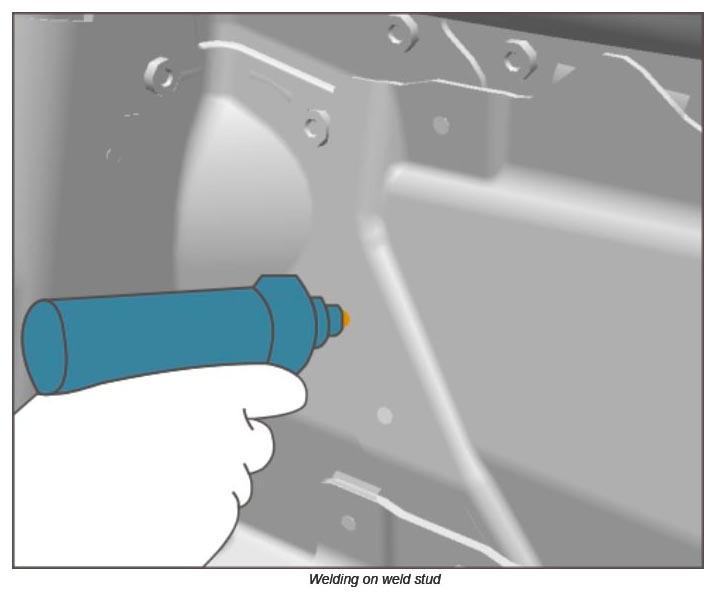

Weld the weld stud onto the rivet head of the punch rivet. → 5X00IN11 STUD WELDING

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

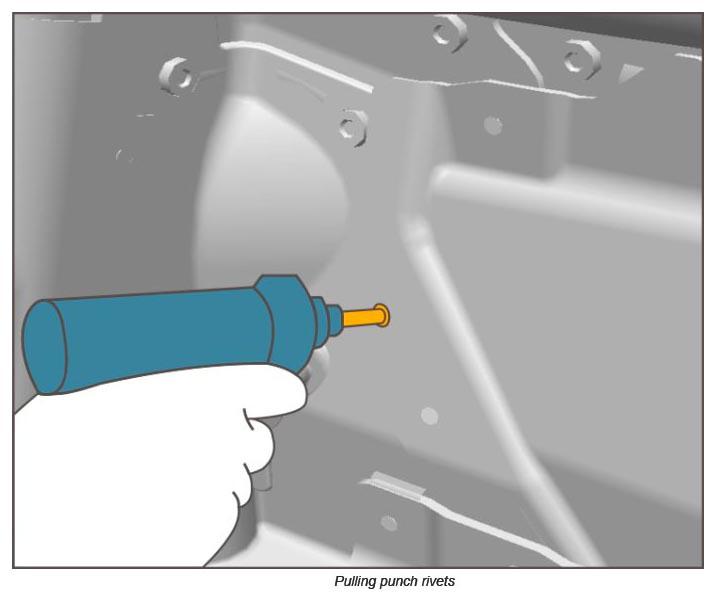

Pull out punch rivet at the welded-on weld stud using a hydraulic riveting tool Compact booster WE 1670 with tool attachment Extension for Compact booster rivet attachment WE 1728 .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
