Pressing out punch rivets

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

The following description is intended only as a guide. A description of the steps involved and the various areas of application can be found in the operating instructions provided with the respective device.

Punch and bottom die pairs

Punch rivet	Pressing punch rivet joints out of two-layered panel joints with restricted access	D3 + D5
	Pressing punch rivet joints out of three-layered panel joints with restricted access	D4 + D5
	Pressing punch rivet joints out of two-layered panel joints	S4 + D5
	Pressing punch rivet joints out of three-layered panel joints	S5 + D5

The correct punch and bottom die pair for the punch rivet joint is specified in the table above.
Information

The pressed-out punch rivet remains in the panel to be replaced and is removed together with the panel.

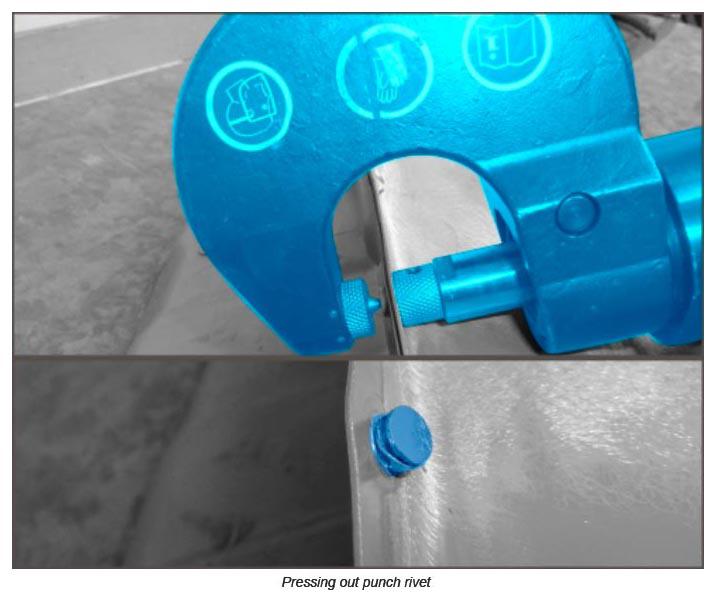

Press out punch rivet using a hydraulic riveting tool Compact booster WE 1670 .
