Technical values

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Location Description Type Basic value Tolerance 1 Tolerance 2
Mirror to door   Gap dimension 1.5 mm +/-1 mm
G12888573Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Strip to pillar   Gap dimension -0.5 mm +/-0.5 mm
G12888574Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Windscreen to roof   Gap dimension 3.2 mm +/-0.5 mm
G12888575Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Strip to side panel   Gap dimension 4.5 mm +/-2mm
G12888576Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Trim, front to rear   Gap dimension 4.2 mm +/-1 mm
G12888577Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Strip to side panel   Gap dimension 4.5 mm +/-2 mm
G12888578Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Strip to side panel   Gap dimension 3.8 mm +/-0.8 mm
G12888579Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rear door to side panel   Gap dimension 3.5 mm +/-0.5 mm
G12888580Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Handle to front door   Gap dimension 1 mm +/-0.5 mm
G12888581Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rear door to front door   Gap dimension 4.2 mm 0.5 mm
G12888582Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Trim, front to rear   Gap dimension 4.2 mm 1 mm
G12888583Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Trim to door   Gap dimension 1 mm +/-0.5 mm
G12888584Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Door sill to door   Gap dimension 4 mm +/-1.5 mm
G12888585Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Door to wing   Gap dimension 4.1 mm +/-0.5 mm
G12888586Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Front lid to wing   Gap dimension 3.5 mm 0.5 mm
G12888587Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Front lid to front apron   Gap dimension 3.5 mm 0.5 mm
G12888588Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Headlight to front lid   Gap dimension 4.7 mm +/-0.8 mm
G12888589Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Front lid to front apron   Gap dimension 4.8 mm +1 mm -0.6 mm
G12888590Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Door to front lid   Gap dimension 4.1 mm +/-0.5 mm
G12888591Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Light to side panel   Gap dimension 1 mm +/-0.8 mm
G12888592Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rear lid to side panel   Gap dimension 4 mm +0.7 mm -0.9 mm
G12888593Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Spoiler to side panel   Gap dimension 4 mm +/-0.5 mm
G12888594Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Spoiler to side panel   Gap dimension 6 mm +1 mm -0.5 mm
G12888595Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Roof to side panel   Gap dimension -3 mm +/-1 mm
G12888596Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Spoiler to roof   Gap dimension 6 mm +1 mm -0.5 mm
G12888597Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rear window to side panel   Gap dimension 4 mm +/-0.8 mm
G12888598Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tail light to rear lid   Gap dimension 1 mm +/-0.8 mm
G12888599Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rear window to rear lid   FugenmaB 4 mm +/-0.8 mm

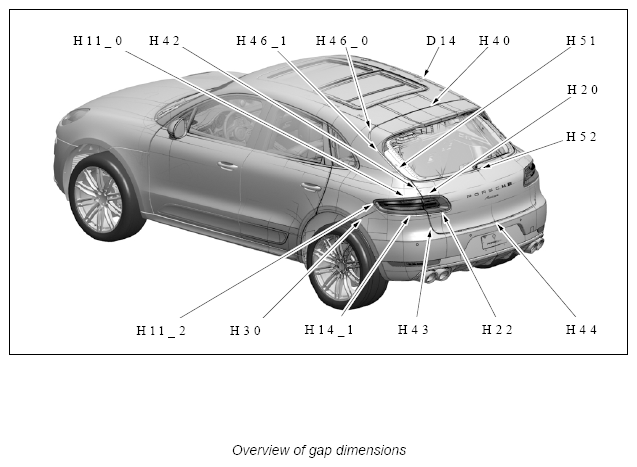

G12888600Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rear lid to rear apron   Gap dimension 4 mm +/-0.8 mm
G12888601Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Light to rear lid   Gap dimension 1 mm +/-0.8 mm
G12888602Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rear lid to rear apron   Gap dimension 4 mm +0.7 mm -0.9 mm
G12888603Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tail light to rear apron   Gap dimension 1 mm +/-0.8 mm
G12888604Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rear apron to side panel   Gap dimension 0 mm +0.5 mm -0 mm
G12888605Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tail light to side panel   Gap dimension 1 mm +/-0.8 mm
G12888606Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Front lid to front apron (x)   Gap dimension 4.8 mm +1 mm -0.6 mm
G12888607Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Front lid to front apron (x)   Gap dimension 4.8 mm +1 mm -0.6 mm
G12888608Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Front lid to front apron (x)   Gap dimension 3.5 mm +/-0.5 mm
G12888609Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Front lid to front apron (y)   Gap dimension 1.5 mm
G12888610Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Front lid to front apron (x)   Gap dimension 3.5 mm +/-0.5 mm
G12888611Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Front lid to front apron (y)   Gap dimension 1 mm
G12888612Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Front lid to wing (x)   Gap dimension 3.5 mm +/-0.5 mm
G12888613Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Front lid to wing (y)   Gap dimension 1 mm
G12888614Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Front lid to wing (x)   Gap dimension 3.5 mm +/-0.5 mm
G12888615Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Front lid to wing (y)   Gap dimension 1.5 mm
G12888616Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Front lid to side panel (x)   Gap dimension 4.5 mm
G12888617Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Windscreen to roof (x)   Gap dimension 3.2 mm +/-0.5 mm
G12888618Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Windscreen to roof (y)   Gap dimension 0.5 mm
G12888619Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Water drain strip to side panel (x)   Gap dimension 0.5 mm
G12888620Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Panoramic sliding roof to roof, front (x)   Gap dimension 10 mm +/-1.2 mm
G12888621Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Panoramic sliding roof to roof, front (y)   Gap dimension 1 mm
G12888622Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Panoramic sliding roof part 1 to part 2 (x)   Gap dimension 2 mm +/-0.5 mm
G12888623Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Panoramic sliding roof part 1 to part 2 (y)   Gap dimension 1 mm
G12888624Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Panoramic sliding roof to roof, rear (x)   Gap dimension 10 mm +/-1.2 mm
G12888625Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Panoramic sliding roof to roof, rear (y)   Gap dimension 1 mm
G12888626Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Roof to side panel (x)   Gap dimension 3 mm +/-1 mm
G12888627Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Panoramic sliding roof to roof, sides (x)   Gap dimension 22 mm +/-1.2 mm
G12888628Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Roof rail to roof, outer (x)   Gap dimension 1.5 mm +/-0.75 mm
G12888629Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Roof rail to roof, inner (x)   Gap dimension 1.5 mm +/-0.7 mm
G12888630Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Door molding, rear to front (x)   Gap dimension 4.2 mm +/-1 mm
G12888631Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Door molding, rear to front (y)   Gap dimension 1 mm
G12888632Courtesy of PORSCHE CARS NORTH AMERICA, INC.
B-pillar trim, rear to front (x)   Gap dimension 4.2 mm +/-1 mm
G12888633Courtesy of PORSCHE CARS NORTH AMERICA, INC.
B-pillar trim, rear to front (y)   Gap dimension 0 mm
G12888634Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Door molding, top rear to front (x)   Gap dimension 4.2 mm +/-1 mm
G12888635Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Door molding, top rear to front (y)   Gap dimension 0 mm
G12888636Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Door to front lid (x)   Gap dimension 4.1 mm +/-0.5 mm
G12888637Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Door to front lid (y)   Gap dimension 1 mm
G12888638Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Door to wing (x)   Gap dimension 4.1 mm +/-0.5 mm
G12888639Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Door to wing (y)   Gap dimension 0 mm
G12888640Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rear door to front door (x)   Gap dimension 4.2 mm +/-0.5 mm
G12888641Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rear door to front door (y)   Gap dimension 0 mm
G12888642Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Door molding, rear to front (x)   Gap dimension 4.2 mm +/-1 mm
G12888643Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Door molding, rear to front (y)   Gap dimension 0 mm
G12888644Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Door molding, top to side panel (x)   Gap dimension 4.5 mm +/-2mm
G12888645Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Door molding, top to side panel (y)   Gap dimension 0 mm
G12888646Courtesy of PORSCHE CARS NORTH AMERICA, INC.
B-pillar trim, front to glazing (x)   Gap dimension 4.5 mm +/-1 mm
G12888647Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Door molding, top to side panel (x)   Gap dimension 4.5 mm +/-2 mm
G12888648Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Door molding, top to side panel (y)   Gap dimension 0 mm
G12888649Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Triangular window bar to glazing (x)   Gap dimension 4.1 mm +/-1 mm
G12888650Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Door molding, front to outer door panel (x)   Gap dimension 0.8 mm +/-0.5 mm
G12888651Courtesy of PORSCHE CARS NORTH AMERICA, INC.
B-pillar trim, rear to glazing (x)   Gap dimension 4.5 mm +/-1 mm
G12888652Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Door molding, rear to outer door panel (x)   Gap dimension 0.8 mm +/-0.5 mm
G12888653Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rear door to side panel (x)   Gap dimension 3.5 mm +/-0.5 mm
G12888654Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rear door to side panel (y)   Gap dimension 0 mm
G12888655Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rear door molding to rear window molding (x)   Gap dimension 3.5 mm +/-1 mm
G12888656Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rear door molding to rear window molding (y)   Gap dimension 0 mm
G12888657Courtesy of PORSCHE CARS NORTH AMERICA, INC.
C-pillar trim to door window (x)   Gap dimension 4.6 mm +/-1 mm
G12888658Courtesy of PORSCHE CARS NORTH AMERICA, INC.
C-pillar trim to rear window (x)   Gap dimension 3.5 mm +/-1 mm
G12888659Courtesy of PORSCHE CARS NORTH AMERICA, INC.
C-pillar trim to rear window (y)   Gap dimension 4.2 mm +/-1 mm
G12888660Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Door molding, top to rear window molding (x)   Gap dimension 3.5 mm +/-1 mm
G12888661Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Door molding, top to rear window molding (y)   Gap dimension 0.3 mm
G12888662Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rear window molding to side panel (x)   Gap dimension 4.5 mm +/-1.5 mm
G12888663Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rear window molding to side panel (y)   Gap dimension 0.8 mm +/-1 mm
G12888664Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rear window molding to side panel (x)   Gap dimension 3.8 mm +/-0.8 mm
G12888665Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Door sill to wing (x)   Gap dimension 4 mm +/-1.5 mm
G12888666Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Door sill to wing (y)   Gap dimension 5 mm +/-1.5 mm
G12888667Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Door sill to wing (x)   Contact force 4 mm +/-1.5 mm
G12888668Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Door sill to wing (y)   Gap dimension 5 mm +/-1.5 mm
G12888669Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Door sill to front door (x)   Gap dimension 4 mm +/-1.5 mm
G12888670Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Door sill to front door (y)   Gap dimension 5 mm +/-1.5 mm
G12888671Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Door sill to rear door (x)   Gap dimension 4 mm +/-1.5 mm
G12888672Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Door sill to rear door (y)   Gap dimension 5 mm +/-1.5 mm
G12888673Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Door sill to rear door (x)   Gap dimension 4 mm +/-1.5 mm
G12888674Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Door sill to rear door (y)   Gap dimension 5 mm +/-1.5 mm
G12888675Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Filler flap to side panel (x)   Gap dimension 2 mm +/-0.5 mm
G12888676Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Filler flap to side panel (y)   Gap dimension 0.25 mm
G12888677Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Filler flap to side panel (x)   Gap dimension 2.3 mm +/-0.5 mm
G12888678Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Filler flap to side panel (y)   Gap dimension 0.25 mm
G12888679Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Filler flap to side panel (x)   Gap dimension 2.3 mm +/-0.5 mm
G12888680Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Filler flap to side panel (y)   Gap dimension 0.25 mm
G12888681Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Filler flap to side panel (x)   Gap dimension 2.3 mm +/-0.5 mm
G12888682Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Filler flap to side panel (y)   Gap dimension -0.25 mm
G12888683Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tail/brake/direction indicator/reversing lights Part 1 to side panel (x)   Gap dimension 1 mm +/-0.8 mm
G12888684Courtesy of PORSCHE CARS NORTH AMERICA, INC.
SBBR-Leuchte Part 1 to side panel (y)   Gap dimension -4.5 mm +/-0.5 mm
G12888685Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tail/brake/direction indicator/reversing lights Part 1 to side panel (x)   Gap dimension 1 mm +/-0.8 mm
G12888686Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tail/brake/direction indicator/reversing lights Part 1 to side panel (y)   Gap dimension -2 mm +/-0.5 mm
G12888687Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tail/brake/direction indicator/reversing lights Part 1 to side panel (x)   Gap dimension 1 mm +/-0.8 mm
G12888688Courtesy of PORSCHE CARS NORTH AMERICA, INC.

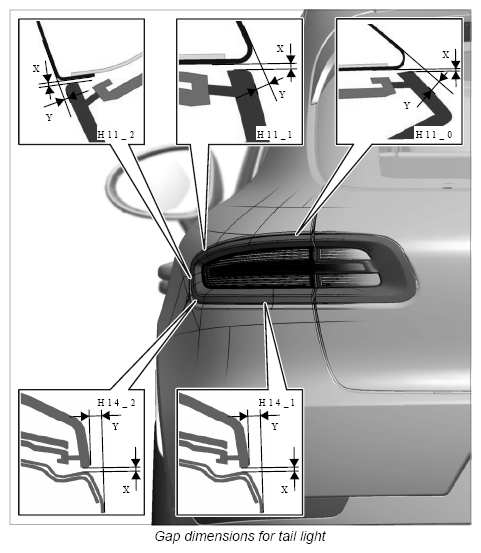

Tail/brake/direction indicator/reversing lights Part 1 to side panel (y)   Gap dimension 1 mm +/-0.8 mm
G12888689Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tail/brake/direction indicator/reversing lights Part 1 to rear apron (x)   Gap dimension 1 mm +/-0.8 mm
G12888690Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tail/brake/direction indicator/reversing lights Part 1 to rear apron (y)   Gap dimension -3.8 mm +/-0.5 mm
G12888691Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tail/brake/direction indicator/reversing lights Part 1 to rear apron (x)   Gap dimension 1 mm +/-0.5 mm
G12888692Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tail/brake/direction indicator/reversing lights Part 1 to rear apron (y)   Gap dimension 1 mm +/-0.5 mm
G12888693Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tail/brake/direction indicator/reversing lights Part 1 to part 2 (x)   Gap dimension 4 mm +/-0.8 mm
G12888694Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tail/brake/direction indicator/reversing lights Part 1 to part 2 (y)   Gap dimension 0 mm +/-0.8 mm
G12888695Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tail/brake/direction indicator/reversing lights Part 2 to rear lid (x)   Gap dimension 1 mm +/-0.8 mm
G12888696Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tail/brake/direction indicator/reversing lights Part 2 to rear lid (y)   Gap dimension -4.5 mm +/-0.5 mm
G12888697Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tail/brake/direction indicator/reversing lights Part 2 to rear lid (x)   Gap dimension 1 mm +/-0.8 mm
G12888698Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tail/brake/direction indicator/reversing lights Part 2 to rear lid (y)   Gap dimension -2 mm +/-0.5 mm
G12888699Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tail/brake/direction indicator/reversing lights Part 2 to rear lid (x)   Gap dimension 1 mm +/-0.8 mm
G12888700Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tail/brake/direction indicator/reversing lights Part 2 to rear lid (y)   Gap dimension -3.8 mm +/-0.5 mm
G12888701Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rear apron to side panel (x)   Gap dimension 0 mm +0.5 mm
G12888702Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rear apron to side panel (y)   Gap dimension 0 mm +/-0.8 mm
G12888703Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rear lid to side panel (x)   Gap dimension 4 mm +0.7 mm -0.9 mm
G12888704Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rear lid to side panel (x)   Gap dimension 4 mm +/-0.8 mm
G12888705Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rear lid to side panel (y)   Gap dimension 4 mm +/-0.8 mm
G12888706Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rear lid/rear spoiler to roof R1 (gap) Gap dimension 6 mm +/-1.1 mm
G12888707Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rear lid/rear spoiler to roof R2 (offset) Gap dimension -1.5 mm +/-1.1 mm
G12888708Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rear lid to side panel R3 (gap) Gap dimension 4 mm +0.7 mm -0.9 mm
G12888709Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rear lid to side panel R3b (offset) Gap dimension 0 mm +/-0.6 mm
G12888710Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rear lid to rear apron R4 (gap) Gap dimension 4 mm +/-0.8 mm
G12888711Courtesy of PORSCHE CARS NORTH AMERICA, INC.
scientia non olet · About LEMON Manuals
