Overview of outer gap dimension for body

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

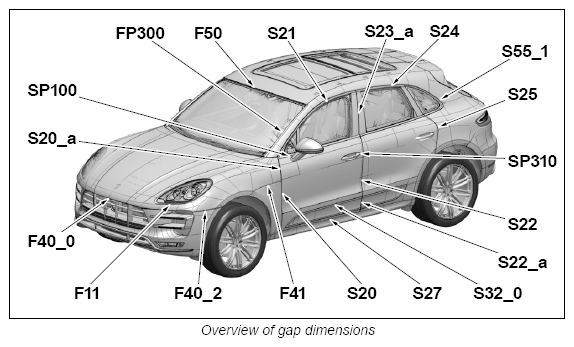

G12888712Courtesy of PORSCHE CARS NORTH AMERICA, INC.
SP100 → Gap dimension: 1.5 mm+/-1 mm
G12888713Courtesy of PORSCHE CARS NORTH AMERICA, INC.
FP300 → Gap dimension: -0.5 mm+/-0.5 mm
G12888714Courtesy of PORSCHE CARS NORTH AMERICA, INC.
F50 → Gap dimension: 3.2 mm+/-0.5 mm
G12888715Courtesy of PORSCHE CARS NORTH AMERICA, INC.
S21 → Gap dimension: 4.5 mm+/-2 mm
G12888716Courtesy of PORSCHE CARS NORTH AMERICA, INC.
S23_a → Gap dimension: 4.2 mm+/-1 mm
G12888717Courtesy of PORSCHE CARS NORTH AMERICA, INC.
S24 → Gap dimension: 4.5 mm+/-2 mm
G12888718Courtesy of PORSCHE CARS NORTH AMERICA, INC.
S55_1 → Gap dimension: 3.8 mm+/-0.8 mm
G12888719Courtesy of PORSCHE CARS NORTH AMERICA, INC.
S25 → Gap dimension: 3.5 mm+/-0.5 mm
G12888720Courtesy of PORSCHE CARS NORTH AMERICA, INC.
SP310 → Gap dimension: 1 mm+/-0.5 mm
G12888721Courtesy of PORSCHE CARS NORTH AMERICA, INC.
S22 → Gap dimension: 4.2 mm0.5 mm
G12888722Courtesy of PORSCHE CARS NORTH AMERICA, INC.
S22_a → Gap dimension: 4.2 mm1 mm
G12888723Courtesy of PORSCHE CARS NORTH AMERICA, INC.
S32_0 → Gap dimension: 1 mm+/-0.5 mm
G12888724Courtesy of PORSCHE CARS NORTH AMERICA, INC.
S27 → Gap dimension: 4 mm+/-1.5 mm
G12888725Courtesy of PORSCHE CARS NORTH AMERICA, INC.
S20 → Gap dimension: 4.1 mm+/-0.5 mm
G12888726Courtesy of PORSCHE CARS NORTH AMERICA, INC.
F41 → Gap dimension: 3.5 mm0.5 mm

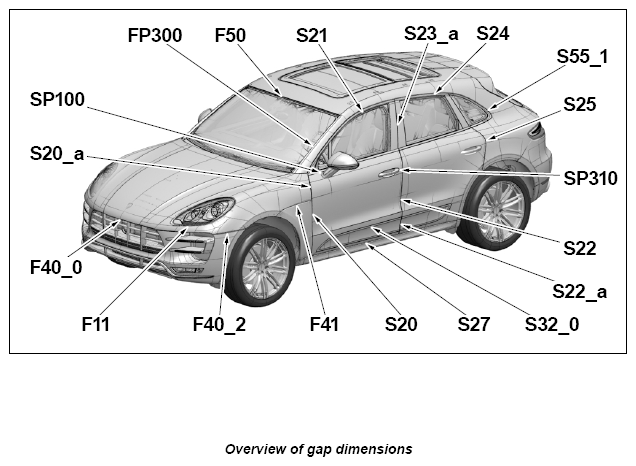

G12888727Courtesy of PORSCHE CARS NORTH AMERICA, INC.
F40_2 → Gap dimension: 3.5 mm0.5 mm
G12888728Courtesy of PORSCHE CARS NORTH AMERICA, INC.
F11 → Gap dimension: 4.7 mm+/-0.8 mm
G12888729Courtesy of PORSCHE CARS NORTH AMERICA, INC.
F40_0 → Gap dimension: 4.8 mm+1 mm-0.6 mm
G12888730Courtesy of PORSCHE CARS NORTH AMERICA, INC.
S20_a → Gap dimension: 4.1 mm+/-0.5 mm
G12888731Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Overview of gap dimensions.

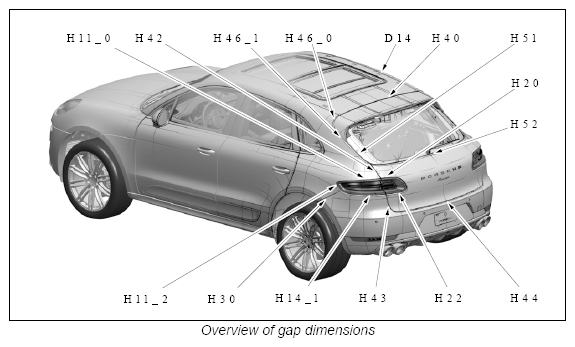

G12888732Courtesy of PORSCHE CARS NORTH AMERICA, INC.
H11_0 → Gap dimension: 1 mm+/-0.8 mm
G12888733Courtesy of PORSCHE CARS NORTH AMERICA, INC.
H42 → Gap dimension: 4 mm+0.7 mm-0.9 mm
G12888734Courtesy of PORSCHE CARS NORTH AMERICA, INC.
H46_1 → Gap dimension: 4 mm+/-0.5 mm
G12888735Courtesy of PORSCHE CARS NORTH AMERICA, INC.
H46_0 → Gap dimension: 6 mm+1 mm-0.5 mm
G12888736Courtesy of PORSCHE CARS NORTH AMERICA, INC.
D14 → Gap dimension: -3 mm+/-1 mm
G12888737Courtesy of PORSCHE CARS NORTH AMERICA, INC.
H40 → Gap dimension: 6 mm+1 mm-0.5 mm
G12888738Courtesy of PORSCHE CARS NORTH AMERICA, INC.
H51 → Gap dimension: 4 mm+/-0.8 mm
G12888739Courtesy of PORSCHE CARS NORTH AMERICA, INC.
H20 → Gap dimension: 1 mm+/-0.8 mm

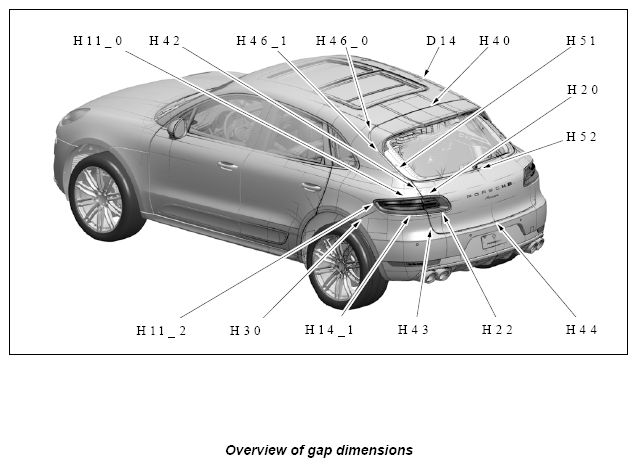

G12888740Courtesy of PORSCHE CARS NORTH AMERICA, INC.
H52 → FugenmaB: 4 mm+/-0.8 mm
G12888741Courtesy of PORSCHE CARS NORTH AMERICA, INC.
H44 → Gap dimension: 4 mm+/-0.8 mm
G12888742Courtesy of PORSCHE CARS NORTH AMERICA, INC.
H22 → Gap dimension: 1 mm+/-0.8 mm
G12888743Courtesy of PORSCHE CARS NORTH AMERICA, INC.
H43 → Gap dimension: 4 mm+0.7 mm-0.9 mm
G12888744Courtesy of PORSCHE CARS NORTH AMERICA, INC.
H14_1 → Gap dimension: 1 mm+/-0.8 mm
G12888745Courtesy of PORSCHE CARS NORTH AMERICA, INC.
H30 → Gap dimension: 0 mm+0.5 mm-0 mm
G12888746Courtesy of PORSCHE CARS NORTH AMERICA, INC.
H11_2 → Gap dimension: 1 mm+/-0.8 mm
