Unpainted bodyshell
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removing stoppers
- Risk of corrosion
- Uncontrolled water leakage
→ Body apertures that are sealed with stoppers at the factory must be re-sealed with the stoppers provided following disassembly or repair work.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| 8 |
Front side member, left & right (2x) |
| 16 |
Plenum panel, left side (2x) |
| 40 |
Firewall, left only (1x) |
| 42a |
Lower part of plenum panel, left (1x) |
| 42b |
Front side member, left & right (2x) |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

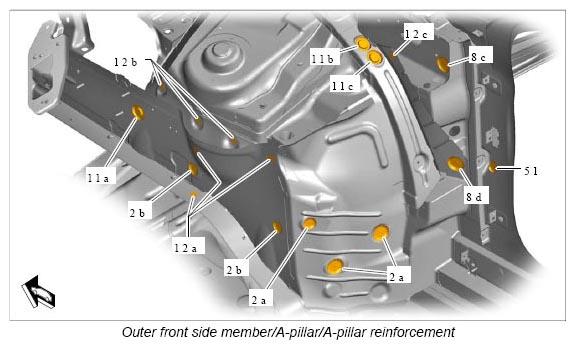

| 2a |
Wheel arch extension, left & right (2x) |
| 2b |
Closing element, left & right (4x) |
| 8a |
Wheel arch extension, left & right (4x) |
| 8c |
Reinforcement, left & right (2x) |
| 8d |
Upper closing element, left & right (2x) |
| 11a |
Closing element, left (2x) |
| 11b |
Closing element for A-pillar node, left & right (2x) |
| 11c |
Closing element for A-pillar node, left (2x) |
| 12a |
Closing element, left & right (6x) |
| 12b |
Spring strut mount, left & right (6x) |
| 12c |
Closing element for A-pillar node, left & right (2x) |
| 51 |
Outer side panel (2x) |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| 8 |
Inner A-pillar, left & right (6x) |
| 11 |
Inner A-pillar, left & right (2x) |
| 77 |
Firewall (LHD vehicles only) (1x) |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| 2 |
Floor, rear left (1x) |
| 8 |
Transverse lock support (1x) |
| 12 |
Longitudinal member extension, left & right (4x) |
Information
Do not install stoppers until after you have applied wax.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| 42a |
Inner side member, left & right (6x) |
| 42b |
Side member reinforcement, left & right (6x) |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| 2a |
Tunnel insert (1x) |
| 2b |
Tunnel insert (1x) |
| 8 |
Front floor section, left & right (2x) |
| 20 |
Inner side member, left & right (2x) |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| 2a |
Bumper holder, left & right (2x) |
| 2b |
Outer side panel, left & right (2x) |
| 2c |
Outer rear wheel housing, left & right (2x) |
| 11a |
Outer rear wheel housing, left & right (2x) |
| 11b |
Inner rear wheel housing, left & right (2x) |
| 11c |
Rear wheel housing closing element, left & right (2x) |
| 11e |
Inner rear wheel housing, left & right (2x) |
| 12a |
Rear side member, left & right (10x) |
| 12b |
Floor reinforcement, left only (2x) |
| 12c |
Rear side member, left (1x) |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| 1 |
Connecting piece (2x) |
| 2 |
Holder, left & right (2x) |
| 8a |
Centre part of cross member (5x) |
| 8b |
Floor, rear (1x) |
| 8c |
Floor, right (1x) |
| 12 |
Longitudinal member, left (1x) |
| 16 |
Centre part of cross member (1x) |
| 41 |
Battery console (3x) |
| 51 |
Floor, rear (1x) |
| 57 |
Battery console (2x) |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| 2a |
Front & rear floor section, left & right (6x) |
| 2b |
Floor end section (2x) |
| 2c |
Front & rear floor section, right only (1x) |
| 8a |
Front floor section, left & right (2x) |
| 8b |
Front floor section, right (1x) |
| 16a |
Floor end section, left only (1x) |
| 16b |
Closing element, left only (1x) |
| 34 |
Rear floor section, left only (1x) |
| 41 |
Front floor section, left (1x) & right (2x) |
