Diagram - keys to symbols for welding work
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

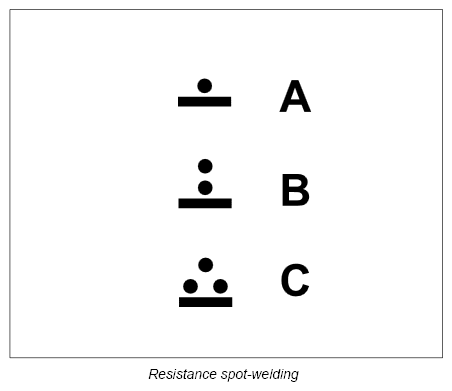

Diagram - keys to symbols for welding work
| A |
Spot seam, single row |
| B |
Spot seam, double row |
| C |
Spot seam, double row offset |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

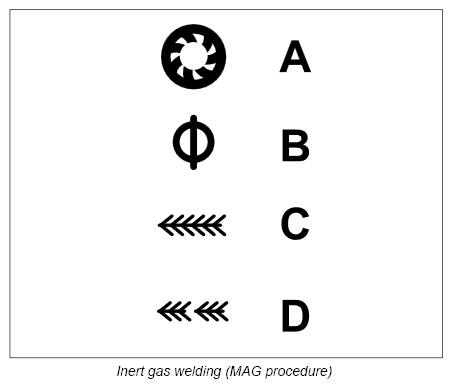

Inert gas welding (MAG procedure)
| A |
Plug weld |
| B |
Stitch weld |
| C |
Full weld |
| D |
Intermittent full weld |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

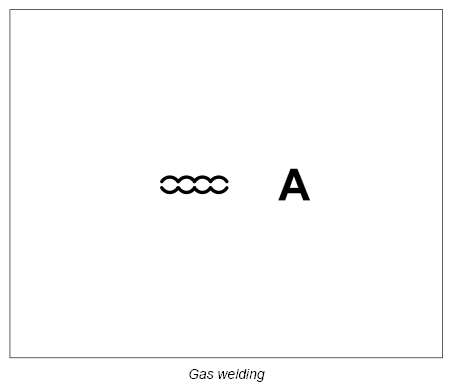

Gas welding
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
