Cavity preservation
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Cavity preservation
Information

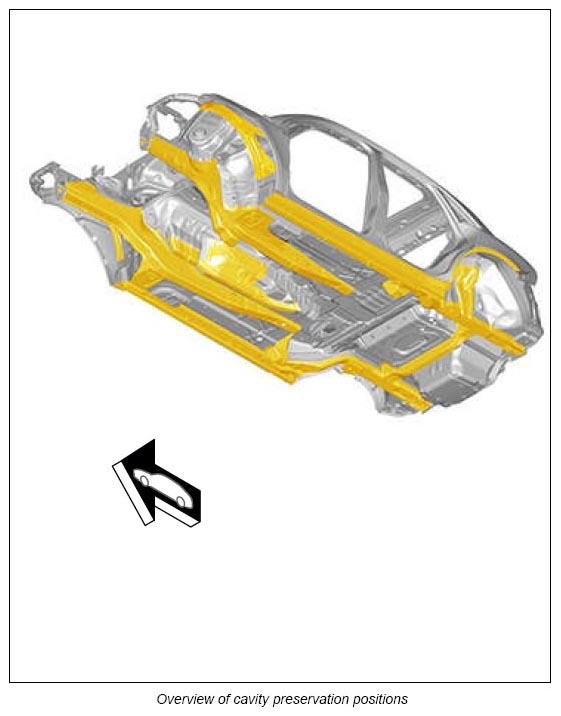

- In the event of repairs, standard cavity preservation must be applied to the accessories on the body according to the following illustrations
.
- Do not apply cavity preservation until you have completed the required assembly work
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

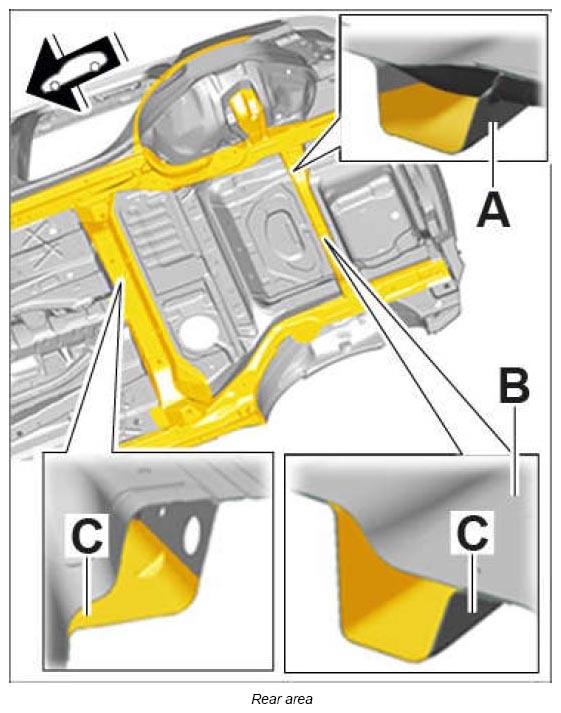

| A |
Cross member |
| B |
Rear floor |
| C |
Cross member |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

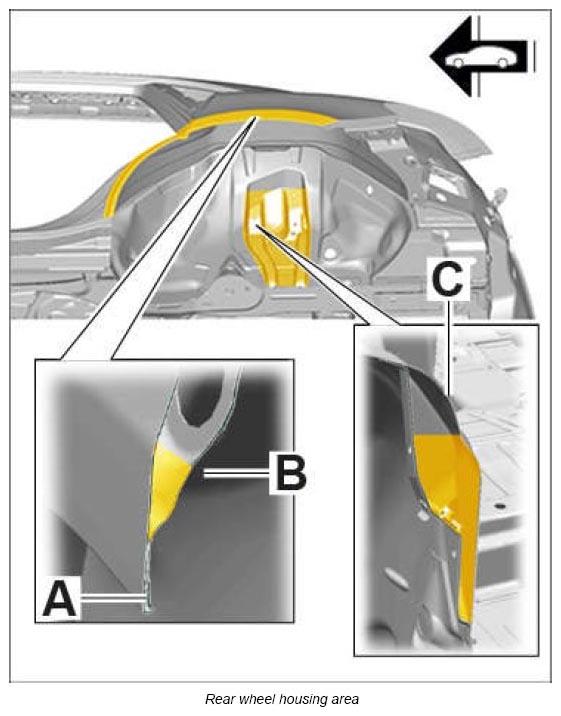

| A |
Side panel |
| B |
Rear wheel housing, outer |
| C |
Rear wheel housing, inner |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

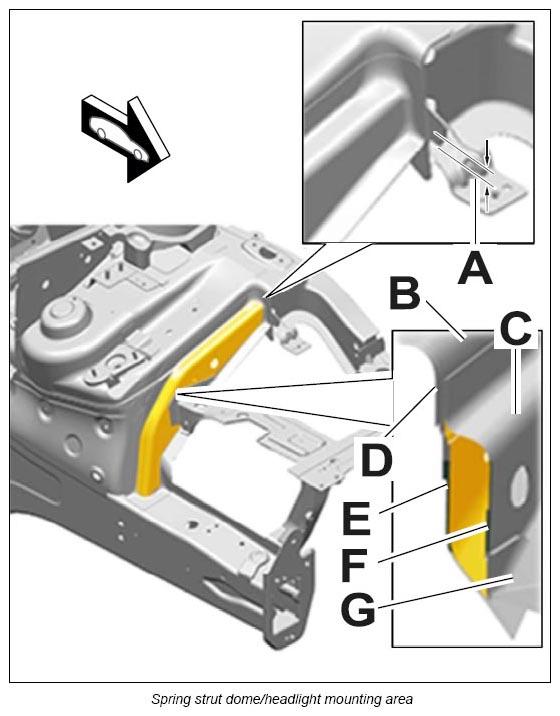

| A |
Connecting piece |
| B |
Lower A-pillar, inner |
| C |
Reinforcement part |
| D |
Connecting piece |
| E |
Upper side member closing element |
| F |
Closing element |
| G |
Lower A-pillar, inner |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

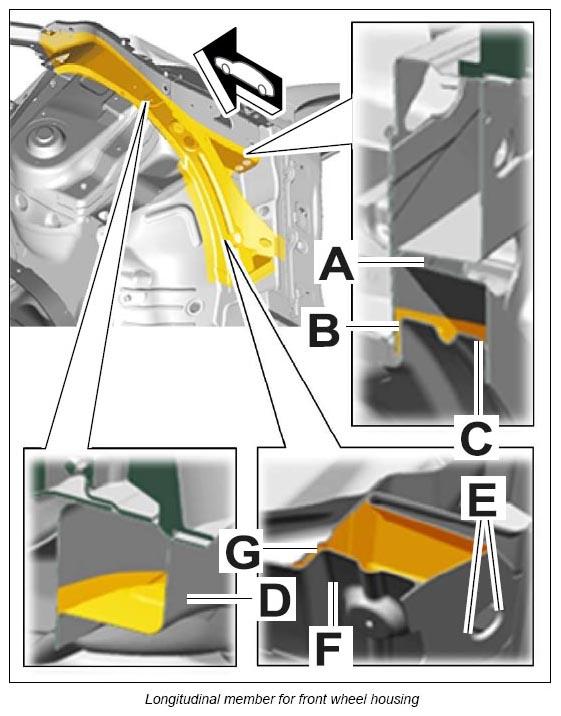

| B |
Closing element |
| C |
Support |
| D |
Reinforcement |
| E |
Reinforcement |
| F |
Support reinforcement |
| G |
ABS support block |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

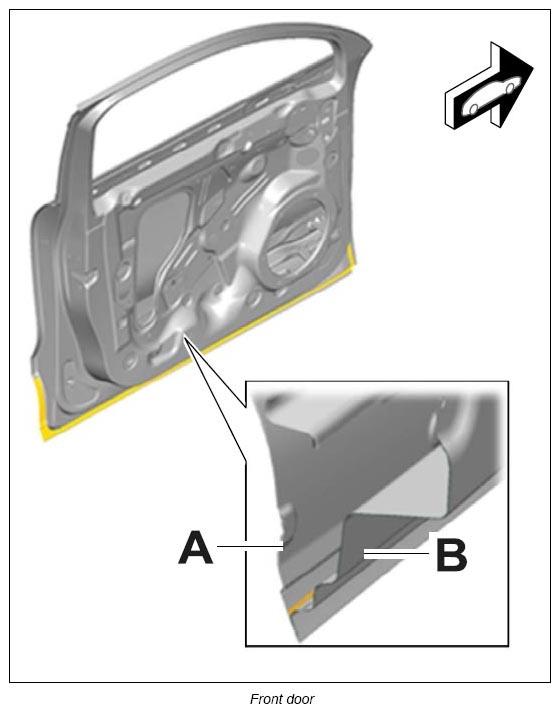

| A |
Door, outer part |
| B |
Door, inner part |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

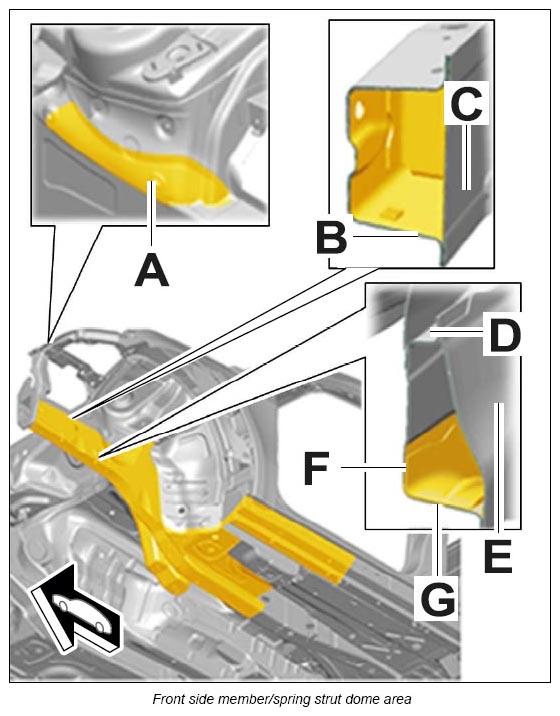

| A |
Front side member/spring strut mount, left & right (coat surface with wax) |
| B |
Front side member |
| C |
Closing element |
| D |
Front side member/spring strut mount, left & right (coat surface with wax) |
| E |
Closing element |
| F |
Front side member |
| G |
Bulkhead part |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

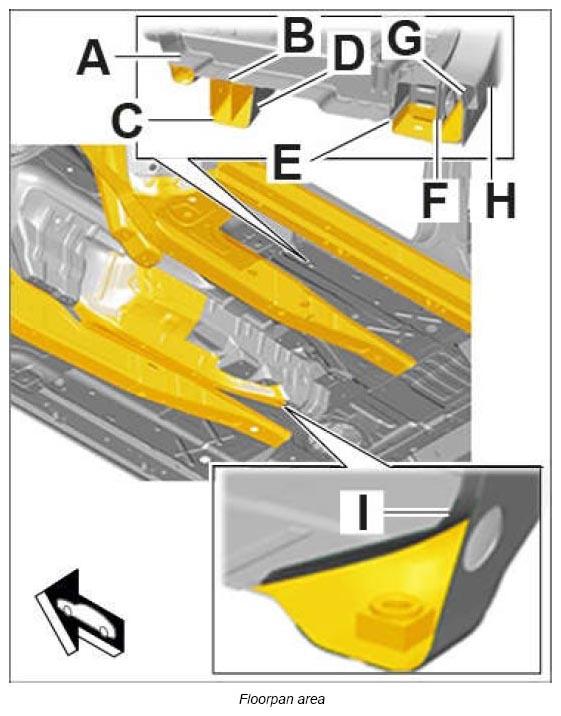

| A |
Tunnel insert |
| B |
Transmission bracket reinforcement |
| C |
Bracket reinforcement, left & right |
| D |
Wheel arch extension |
| E |
Reinforcement |
| F |
Front suspension/stabilizer suspension, left & right |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

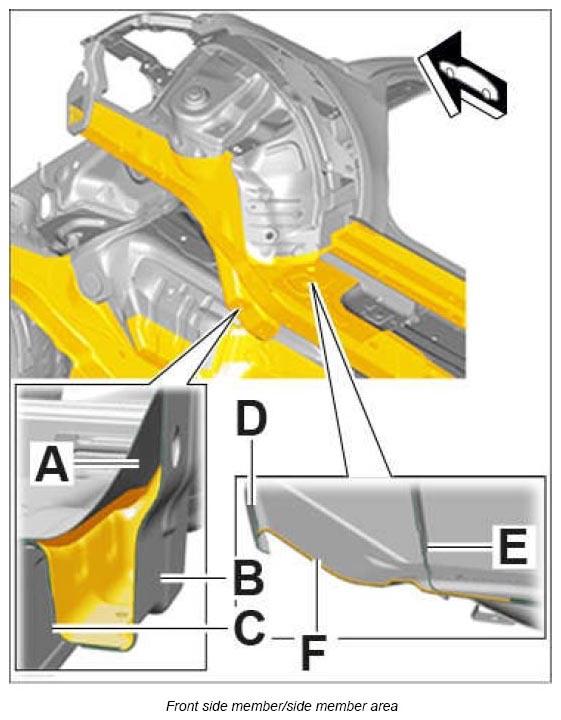

| A |
Tunnel insert |
| B |
Front floor section, left & right |
| C |
Front side member, left & right |
| D |
Closing element |
| E |
Inner side member, left & right |
| F |
Bar element of rear side member |
| G |
Side member reinforcement, left & right |
| H |
Outer side panel, left & right |
| I |
Tunnel insert |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

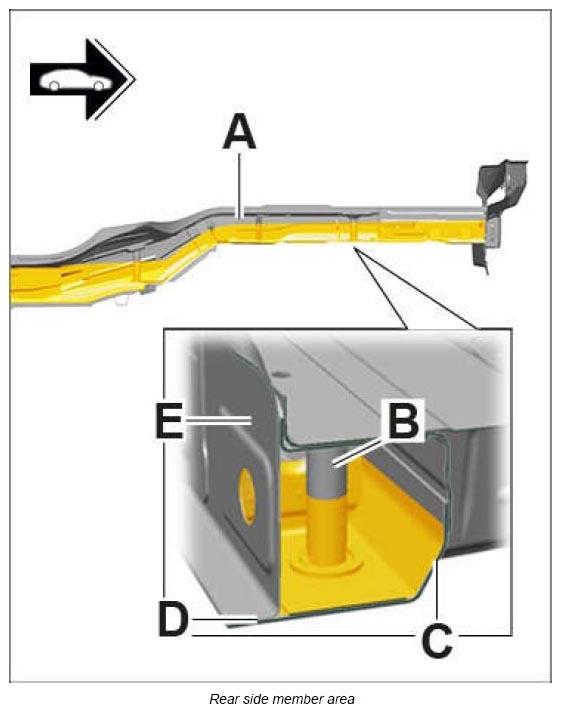

| A |
Rear side member, left & right |
| B |
Reinforcement |
| C |
Rear side member |
| D |
Rear side member, outer edge |
| E |
Rear wheel housing, inner |
