Removing fresh air/recirculated air/ram air housing

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
G12837454Courtesy of PORSCHE CARS NORTH AMERICA, INC.

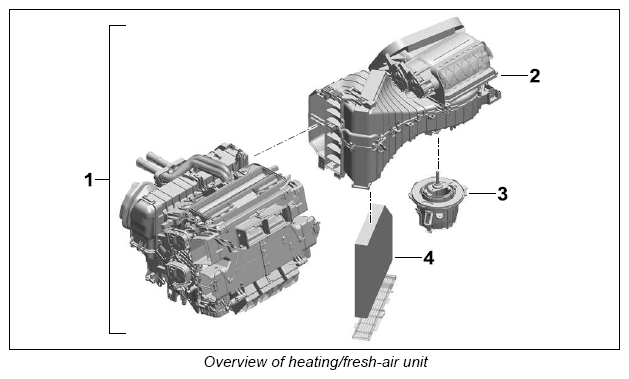

  1. Heating/fresh-air unit
  2. Fresh air/recirculated air/ram air housing
  3. Heating/fresh-air blower motor → 853019 REMOVING AND INSTALLING HEATING/FRESH-AIR BLOWER MOTOR
  4. Particle filter

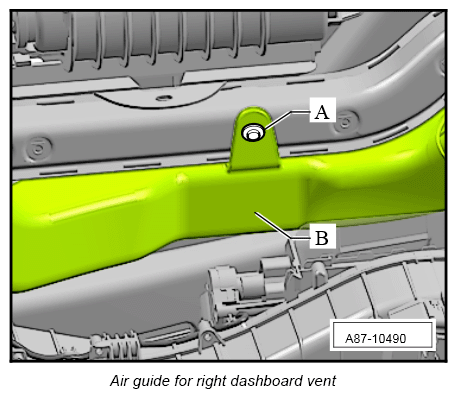

  1. Remove fastening screw -A-  .
  2. Loosen air guide for the right dashboard vent from the retaining frame.
  3. Remove air guide duct -B-  for the right dashboard vent.
    G12837455Courtesy of PORSCHE CARS NORTH AMERICA, INC.

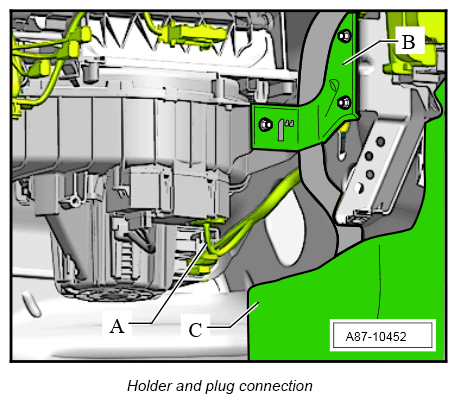

  4. Disconnect connector -A-  from the fan control.
  5. Remove holder -B-  .
    G12837456Courtesy of PORSCHE CARS NORTH AMERICA, INC.

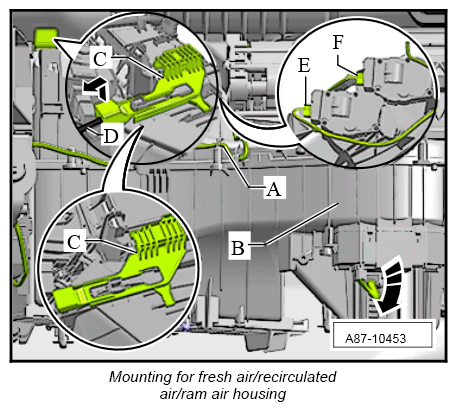

  6. Disconnect wiring -A-  .
  7. Loosen locking mechanism -C-  .
  8. Pull fresh air/recirculated air/ram air housing at the right down.
  9. Disconnect connector for servo motors -E and F-  .
    G12837457Courtesy of PORSCHE CARS NORTH AMERICA, INC.

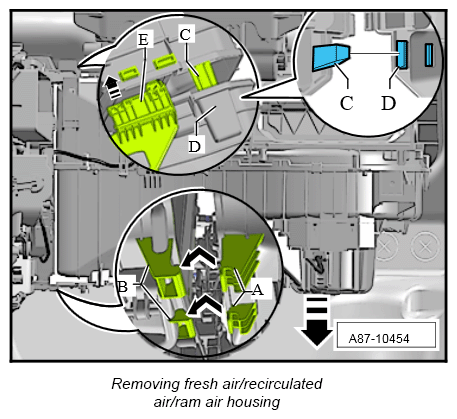

  10. Disengage upper tab -E-  of the heating/fresh-air unit from the mounting -D-  for the fresh air/recirculated air/ram air housing.
  11. Loosen lower mounting points -A and B-  .
    G12837458Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  12. Remove fresh air/recirculated air/ram air housing.
  13. If the fresh air/recirculated air/ram air housing is replaced, the following work must still be carried out:
    1. 13.1. Convert heating/fresh-air blower motor → 853019 REMOVING AND INSTALLING HEATING/FRESH-AIR BLOWER MOTOR .
    2. 13.2. Convert fan control → 877819 REMOVING AND INSTALLING FAN CONTROL .
