Removing fan control

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

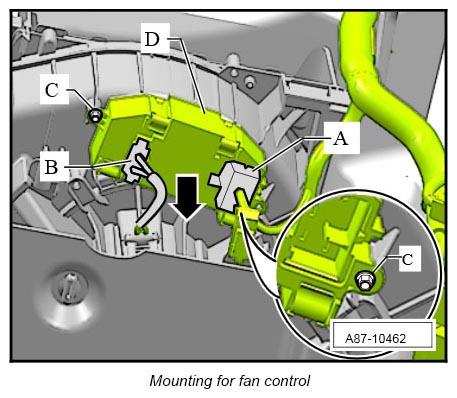

  1. Disconnect connectors -A and B-  .
  2. Unscrew fastening screws -C-  .
  3. Remove fan control -D-  .
    G12890734Courtesy of PORSCHE CARS NORTH AMERICA, INC.
