Removing condenser

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

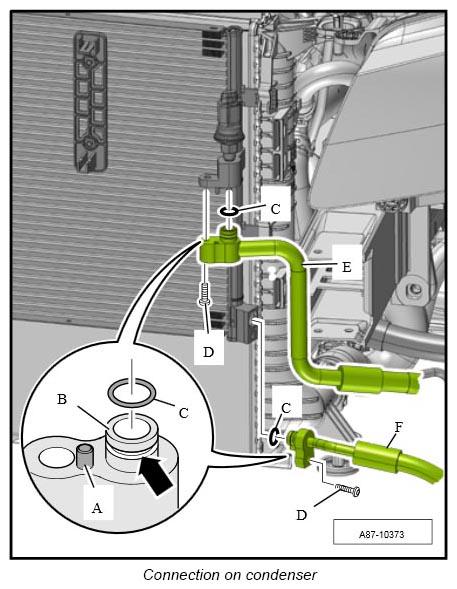

  1. Unscrew fastening screws -D-  .
  2. Remove air-conditioning lines -E and F-  from the condenser.
    G12890726Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Close off air-conditioning lines using suitable stoppers.

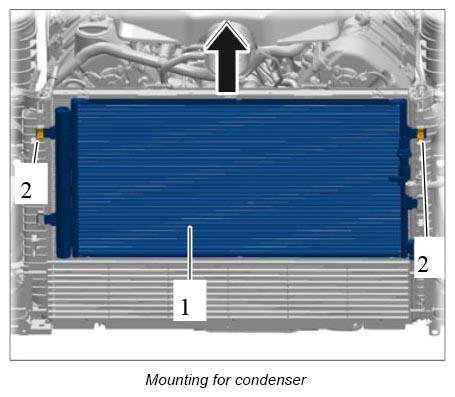

  4. Release locks -2-  and remove condenser -1-  by pulling it upwards.
    G12890727Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. If the condenser is replaced, convert the pressure switch → 878319 REMOVING AND INSTALLING PRESSURE SWITCH .
