Removing compressor/condenser line section from wheel housing to condenser

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

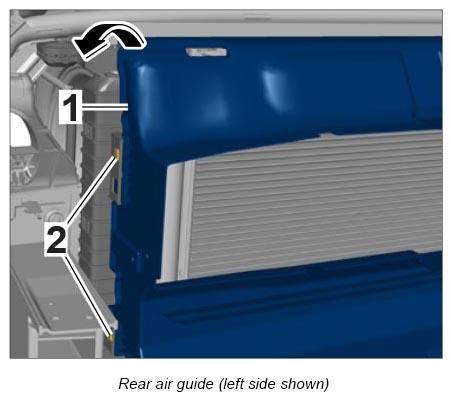

Unclip rear air guide -1- from the locking lugs -2- on the right side only.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

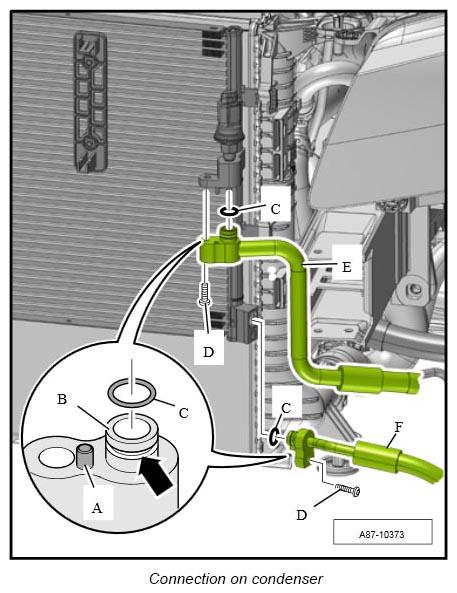

Unscrew fastening screw -D- .
Disconnect air-conditioning line -E- from the condenser.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Applies only to the Macan Diesel:

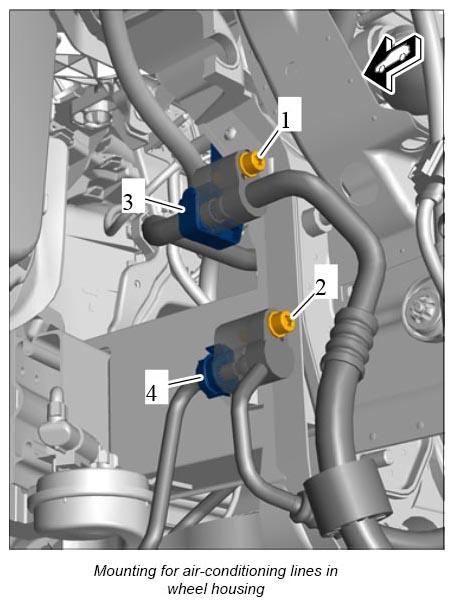

Unscrew fastening screw -1- .
Remove refrigerant line for the condenser from the holder -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Applies to all other Macan vehicles:
Disconnect air-conditioning line in the front left wheel housing.

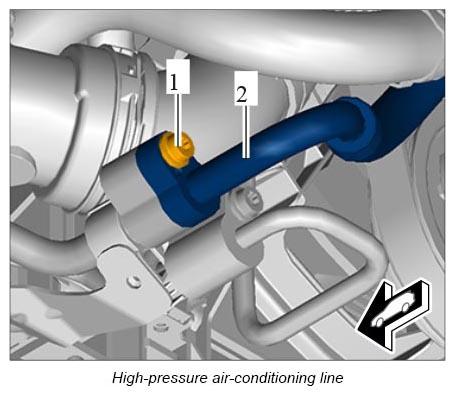

1. 6.1. Unscrew screw -1- and pull off air-conditioning line -2- .
2. 6.2. Take air-conditioning line for the condenser out of the holder.
3. 6.3. Close off air-conditioning lines using suitable stoppers.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close off air-conditioning lines using suitable stoppers.
