Installing windscreen

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

The removed windscreen can be reinstalled if there was no prior damage to the windscreen and the windscreen was removed without damage .

Information

Two persons are needed to insert and adjust the windscreen .

CAUTION: Danger of material damage if specified curing time of adhesive is not observed! In order to ensure that the bonded joint is sufficiently strong, the following conditions must be adhered to:

The vehicle must not be used until the curing time has elapsed.
Curing time: 2 hours
Temperature: at least 10°C
Fixing time: approx. 1 hour

Prepare 2-component adhesive for processing. → WM 6X00IN GENERAL INFORMATION ON REMOVING CAR WINDOWS .
Information

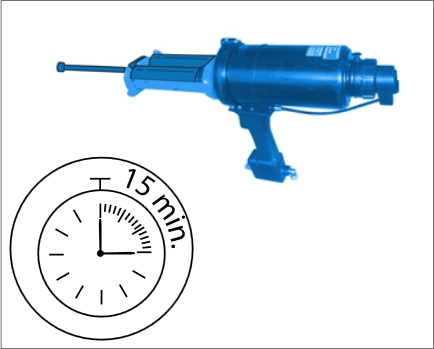

- The adhesive has an open time of -15 min- , which means that the bonding material must be applied and the component must be affixed within this period of time .
- To ensure that the substance is completely mixed, apply a 30-mm long bead of fresh adhesive to a piece of cardboard before processing .
Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- When applying the adhesive, always ensure that the adhesive bead overlaps by approx. 30 mm at the beginning and at the end .
Apply adhesive to the windscreen.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

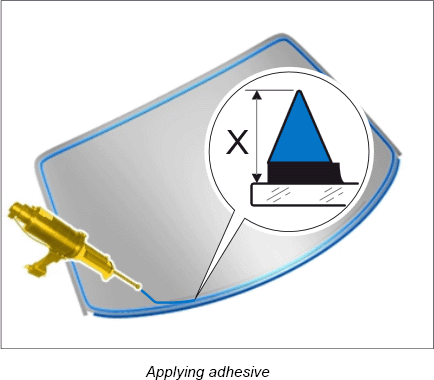

1. 2.1. Using a bonding gun -A- , apply 2-component adhesive to the rear window along the preliminary coat and on the primer in the form of a triangular bead measuring -X = approx. 15 mm- .
Insert the windscreen into the body.
1. 3.1. Affix suction cups to the windscreen.
2. 3.2. Guide the windscreen into the window aperture.
3. 3.3. Push the windscreen up against the seal.
4. 3.4. Insert the windscreen at the sides of the window aperture and lower it (do not press at the sides ).
5. 3.5. Adjust gap dimension of windscreen with respect to the roof. → 5X00IN41 GAP DIMENSIONS

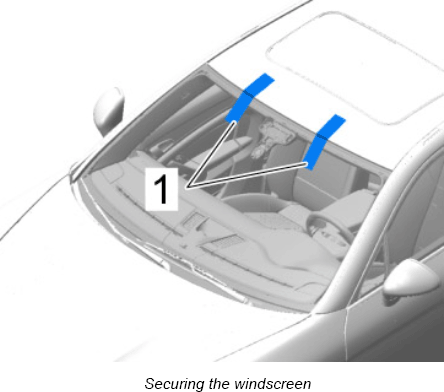

6. 3.6. Secure the windscreen with adhesive tape -1- to prevent it from slipping.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

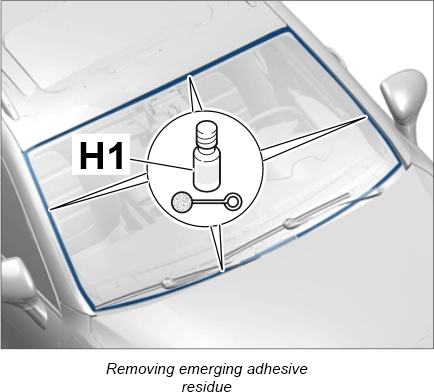

Adhesive that has oozed out must be removed immediately and the affected fields of vision must be cleaned using cleaning solution -H1- .
