Changing brake fluid

Information

• Observe brake fluid quality. Use only new DOT 4 brake fluid.
• The brake fluid change interval is two years using Super DOT 4 brake fluid.
• This brake fluid is available under the following part numbers: Quantity supplied: 1 litre = 000.043.203.66; 30 litres = 000.043.203.67.
• Drain brake fluid from every brake calliper at both bleeder valves.
• There are two bleeder valves on the brake calliper. Brake fluid must be drained at both bleeder valves. Observe specified sequence: Bleed the outer bleeder valve first.

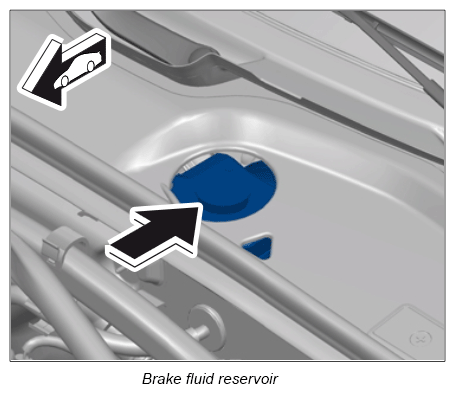

1. Open threaded cover on brake fluid reservoir.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

2. Connect bleeding device to the brake fluid reservoir.
3. Switch on the bleeding device. Bleeding pressure is approx. 2.0 bar.
4. Continue changing the brake fluid at the brake callipers. Do so in the following sequence: rear right/rear left/front right/front left.
5. Open every bleeder valve until clear, bubble-free brake fluid emerges and until the corresponding change quantity per brake calliper is reached (approx. 250 cm³ ).
6. Use a transparent hose and a collecting bottle to check the escaping brake fluid for cleanliness, absence of air bubbles and to determine the amount of brake fluid used.
7. Tighten the bleeder valves to the specified tightening torque → 47 TIGHTENING TORQUES FOR BRAKE HYDRAULIC SYSTEM " and remove the bleeder hoses.
8. Switch off the bleeding device and remove the adapter at the reservoir. The brake fluid level in the reservoir must be between the MIN and MAX markings once the vehicle has been filled and bled. Correct the brake fluid level if necessary.
