Completing reconditioned engine

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

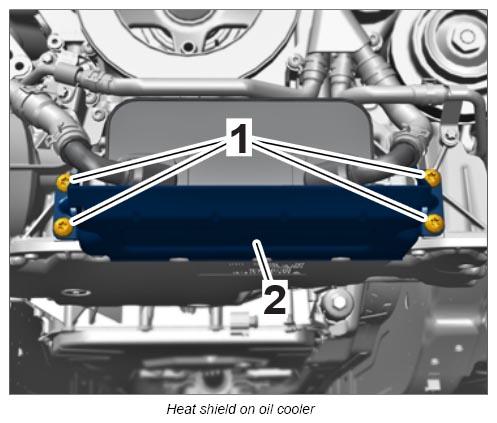

  1. Convert heat shield for oil cooler.
    1. 1.1. Loosen fastening screws -1-  and remove heat shield -2-  .
    2. 1.2. Fit heat shield -2-  using new  fastening screws -1-  .
    3. 1.3. Tighten fastening screws -1 -  . Tightening torque 23 Nm (17 ft lb.)
      G12833258Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove drive belt. → 137819 REMOVING AND INSTALLING DRIVE BELT
  3. Convert pressure pipe on both sides. → 214119 REMOVING AND INSTALLING PRESSURE PIPE
  4. Convert air-conditioning compressor. → 873419 REMOVING AND INSTALLING AIR-CONDITIONING COMPRESSOR

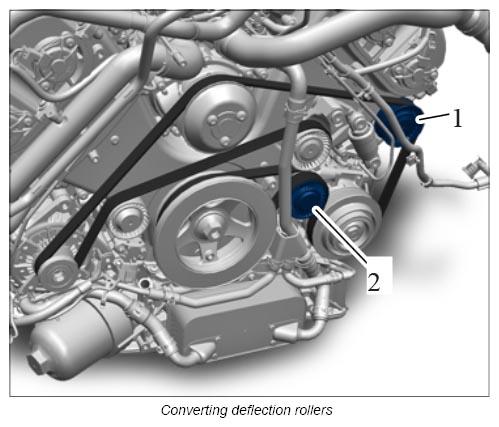

  5. Convert deflection rollers for drive belt -1 and 2-  .

    Use new  fastening screws for installation. Tightening torque 32 Nm (24 ft lb.)

    G12833259Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Install drive belt. → 137819 REMOVING AND INSTALLING DRIVE BELT

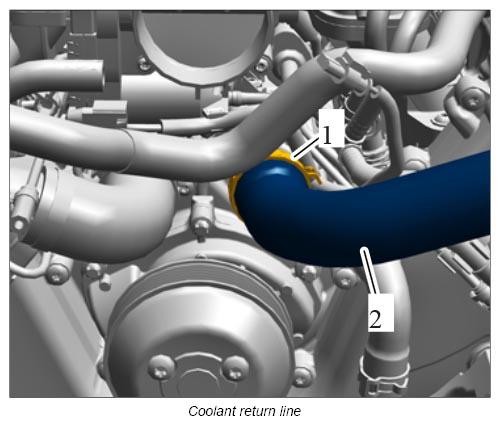

  7. Loosen spring band clamp -1-  and convert coolant return line -2-  .
    G12833260Courtesy of PORSCHE CARS NORTH AMERICA, INC.

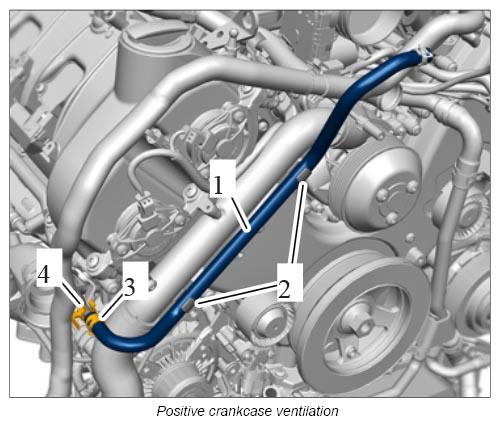

  8. Loosen single-lug clip -2-  and take positive crankcase ventilation line -1-  out of the holders -2 and 3-  .
    G12833261Courtesy of PORSCHE CARS NORTH AMERICA, INC.

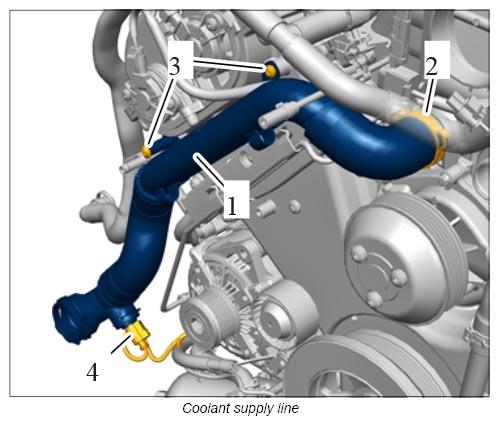

  9. Convert coolant supply line.
    1. 9.1. Disconnect electric plug connection -4-  .
    2. 9.2. Loosen spring band clamp -2-  .
    3. 9.3. Unscrew fastening screws -3-  and remove coolant supply line.
    4. 9.4. Install coolant supply line on reconditioned engine.

      Tightening torque for fastening screws -3- Tightening torque 5 Nm (3.5 ft lb.)

      G12833262Courtesy of PORSCHE CARS NORTH AMERICA, INC.

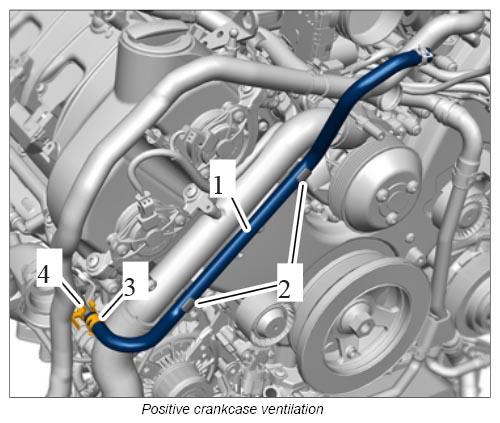

  10. Insert positive crankcase ventilation line -1 -  into holders -2 and 4-  and secure with a new  single-lug clip -4-  .

    Check markings during installation.

    G12833263Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  11. Convert drive plate. → 136319 REMOVING AND INSTALLING DRIVE PLATE
  12. Convert secondary-air pump with lines. → 266519 REMOVING AND INSTALLING SECONDARY-AIR PUMP
  13. Convert shut-off valve. → 266919 REMOVING AND INSTALLING SHUT-OFF VALVE
  14. Convert air injection line.

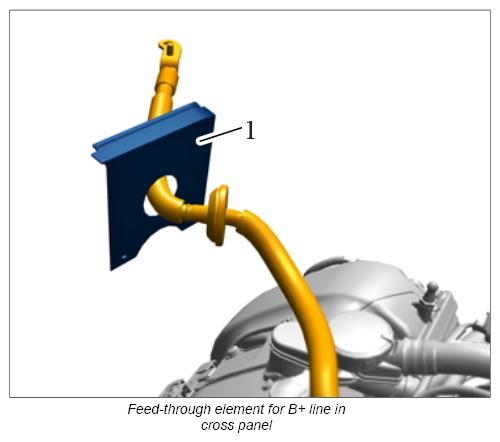

  15. Convert feed-through element -1-  for B+ line.
    G12833264Courtesy of PORSCHE CARS NORTH AMERICA, INC.

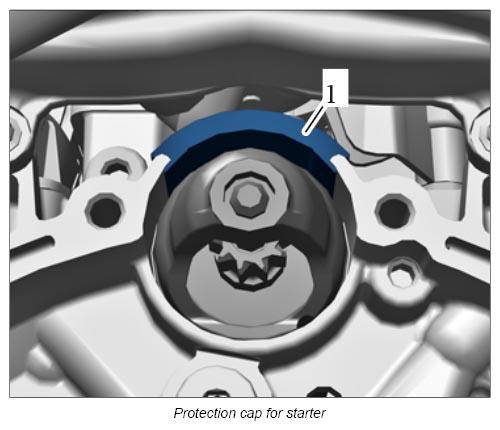

  16. Convert protection cap for starter -1-  .
    G12833265Courtesy of PORSCHE CARS NORTH AMERICA, INC.

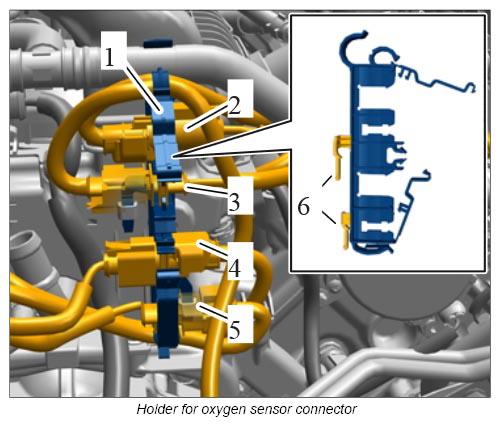

  17. Convert holder for oxygen sensor cable.
    1. 17.1. Disconnect electric plug connections -2...5-  and remove connector from holder.
    2. 17.2. Unclip holder -1-  (-6-  ) and convert it.
    3. 17.3. Secure electric plug connections -2...5-  in holder.

      Position of plug connections:

      • Plug connection for oxygen sensor upstream of catalytic converter (cylinders 1-3) -2-
      • Plug connection for oxygen sensor downstream of catalytic converter (cylinders 1-3) -3-
      • Plug connection for oxygen sensor upstream of catalytic converter (cylinders 4-6) -4-
      • Plug connection for oxygen sensor downstream of catalytic converter (cylinders 4-6) -5-
      G12833266Courtesy of PORSCHE CARS NORTH AMERICA, INC.

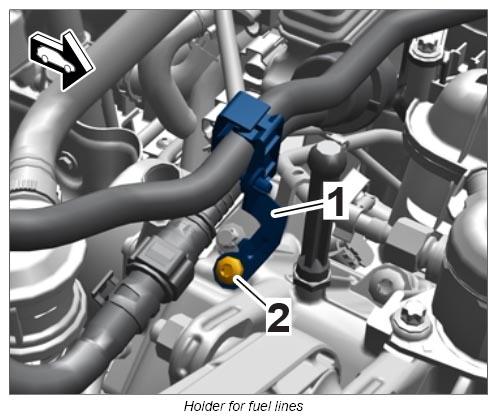

  18. Convert fuel line holder.
    1. 18.1. Loosen fastening screws -2-  and remove holder -1-  .
    2. 18.2. Fit holder -1-  with fastening screw -2-  .
    3. 18.3. Tighten fastening screw -2-  . Tightening torque 4.5 Nm (3.25 ft lb.)
      G12833267Courtesy of PORSCHE CARS NORTH AMERICA, INC.
