Installing wiring for backrest

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

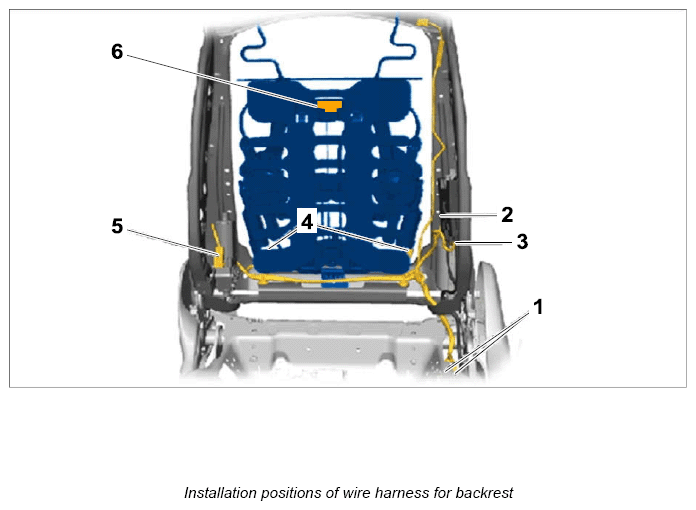

1	Two connectors for backrest wire harness
2	Connector for motor for air cushion 3 - Connector for control valve for air cushion 4 - Two connectors for lumbar support
5	Connector for motor for backrest adjustment
6	Connector for motor for seat ventilation

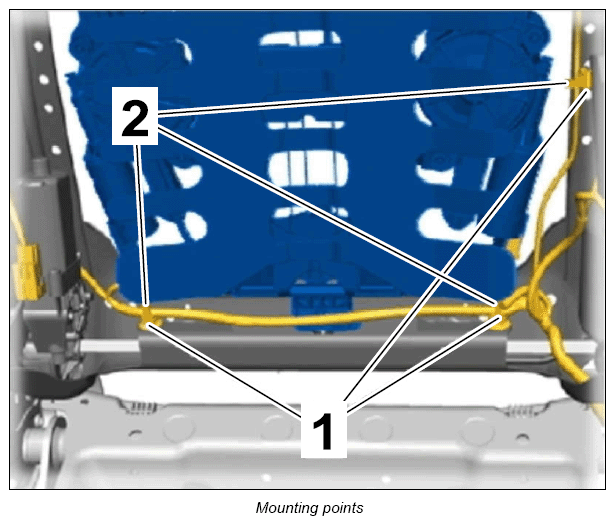

First fit the wire harness loosely in the backrest, ensuring that it is positioned correctly.
Clip in clips -1- on the backrest frame.
Fit tie-wraps -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Plug in electric plug connections -1- to -6- until the connectors engage securely.
Screw in two fastening screws for the backrest air cushion. → 721719 REMOVING AND INSTALLING AIR CUSHION FOR BACKREST
