Installing air cushion for backrest
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

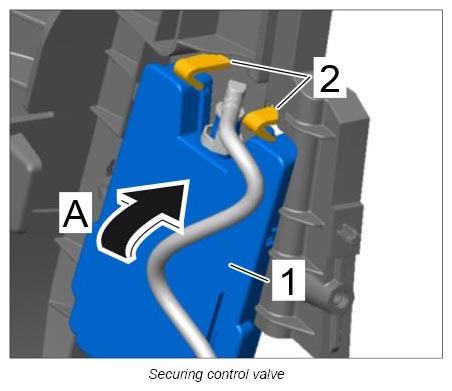

- On the left side, fit the control valve -1- (-A-)
and engage it in the locking mechanisms -2-
.

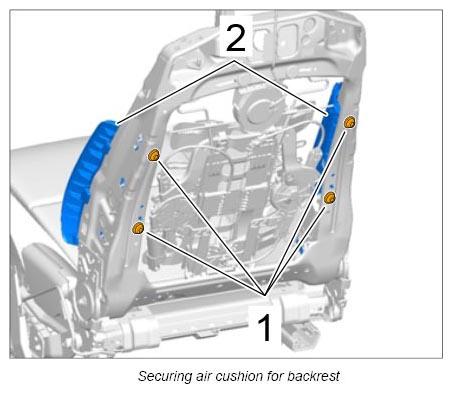

- Position holder for air cushion for backrest -2-
and tighten the fastening screws -1-
until secure Tightening torque 2.5 Nm (2 ft lb.) +/-0.3 Nm (+/-0.2 ft lb.)
.

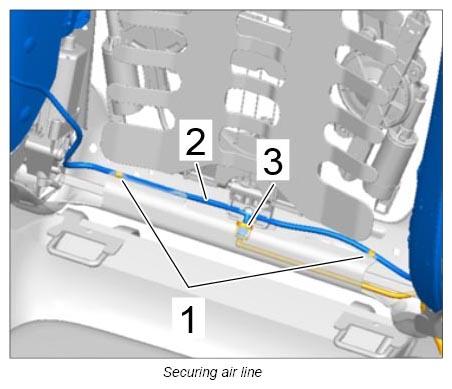

- Connect pressure line -2-
for air cushions at the connection point -3-
.
- Fit tie-wrap -1- on the pressure line.
