Installing motor for air cushion

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

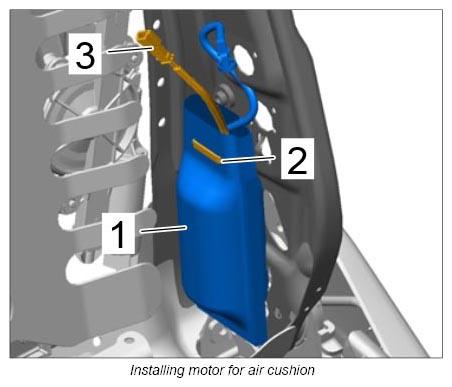

  1. Clip in fixing clip -2-  for the motor -1-  .
    G12890572
  2. Plug in electric plug connection -3-  .

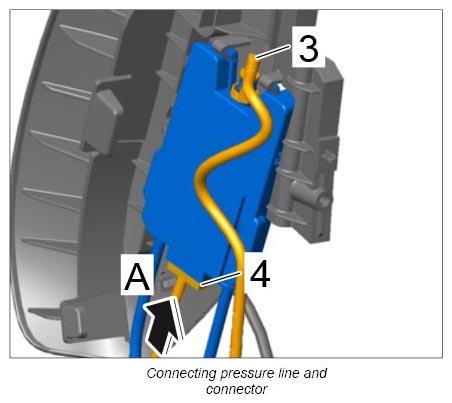

  3. Connect the pressure line (blue) -3-  to the control valve.
    G12890573
  4. Screw in two fastening screws for the backrest air cushion. → 721719 REMOVING AND INSTALLING AIR CUSHION FOR BACKREST - "REMOVING"
