Installing control valve for air cushion

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

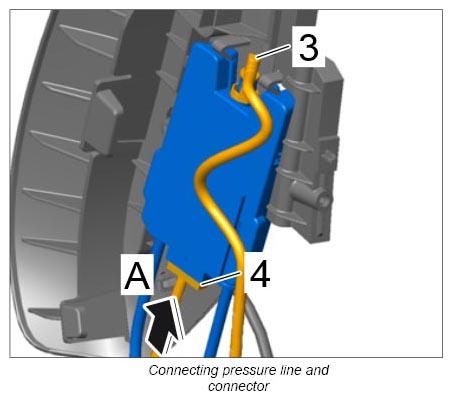

  1. Connect the pressure line (blue) -3-  to the control valve.
    G12890565
  2. Insert electric plug connection -4-  (-A-  ) until the connector engages securely.

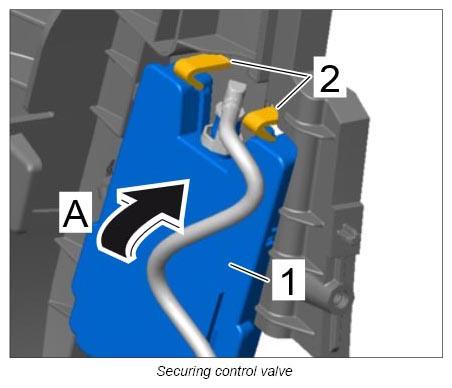

  3. Fit the control valve -1- (-A-  ) and engage it in the locking mechanisms -2-  .
    G12890566
  4. Screw in two fastening screws for the backrest air cushion. → 721719 REMOVING AND INSTALLING AIR CUSHION FOR BACKREST - "INSTALLING"

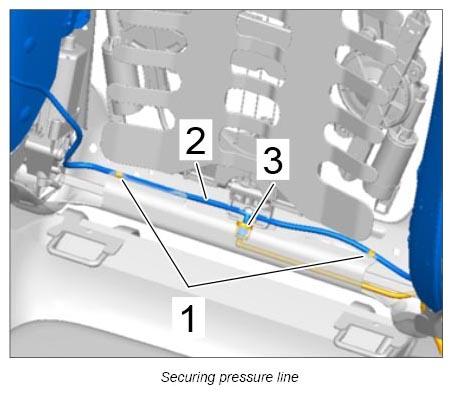

  5. Connect control valve pressure line (green) -3-  to the air cushion pressure line (green) -2-  .
    G12890567
  6. Pull the pressure line (red) through between the backrest frame and seat.

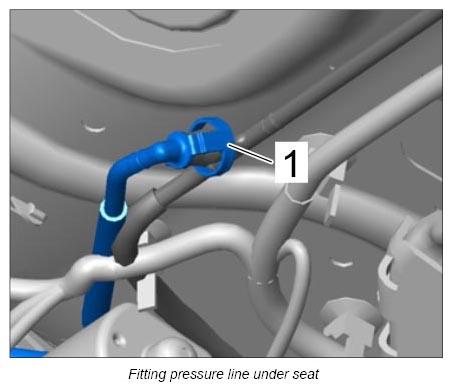

  7. Fit the pressure line (red) -1-  under the seat.
    G12890568
