Removing trim panel for rear lid

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

To reduce the forces during removal and thereby the risk of damage, the removal steps must be carried out at the accessible connection points using a suitable tool.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

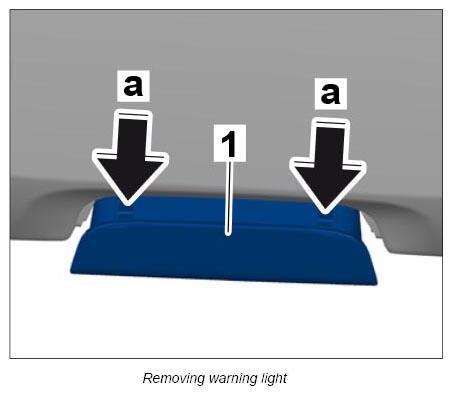

Release light -1- using a small screwdriver -a- and pull it out of the trim panel.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

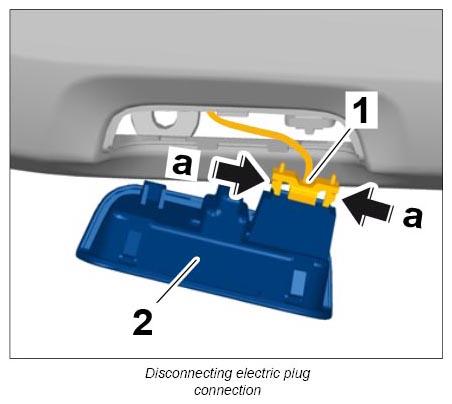

Release electric plug connection -1- (-a- ) and pull off the light -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

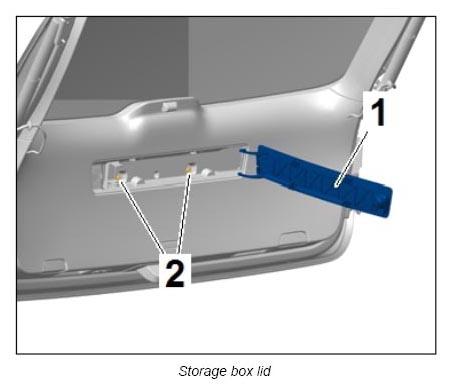

Open lid of storage box -1- for warning triangle and unscrew and remove fastening screws -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove lid release switch. → 558219 REMOVING AND INSTALLING REAR LID RELEASE SWITCH

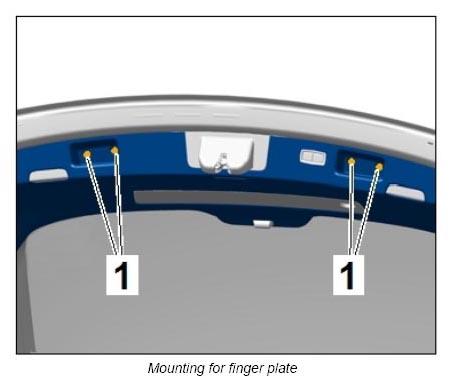

Unscrew and remove fastening screws -1- for finger plate at the left and right.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

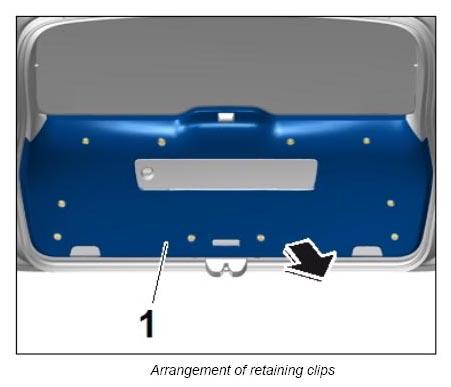

Carefully loosen the clips -marking- on the lower part of the trim panel -1- at the marked areas using a suitable tool.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

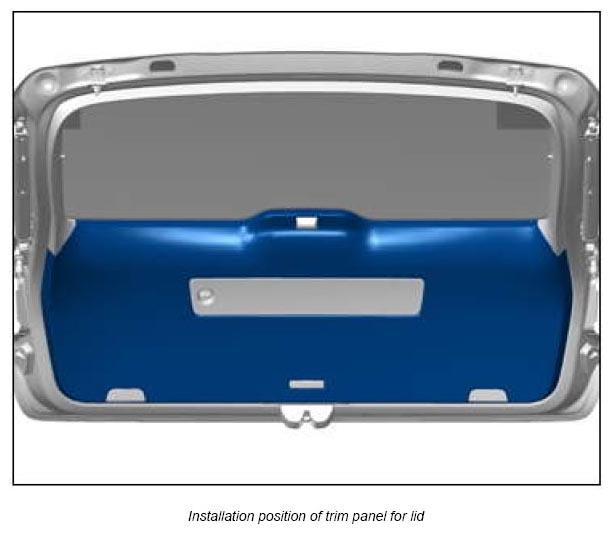

Remove trim panel.
