Installing Upper Front Roof Frame

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive  .
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed  .
• Do not begin bonding work until all materials and tools necessary for later repair work are available  .

1. Fit in lower part of roof frame.
   1. 1.1. Resistance spot-weld lower part of roof frame.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

2. Install upper front roof frame and check that it fits perfectly. Check gap dimensions. → WM 5X00IN GAP DIMENSIONS

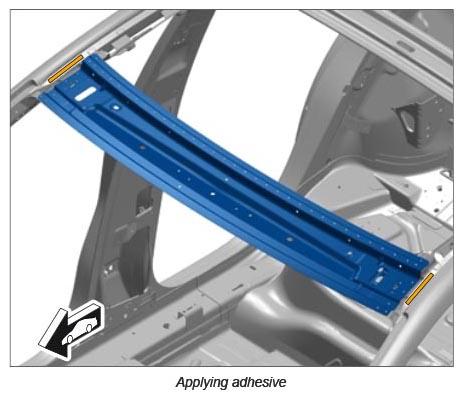

   1. 2.1. Apply adhesive to the areas marked in yellow. → 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE → Application depth: 3.0 mm

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

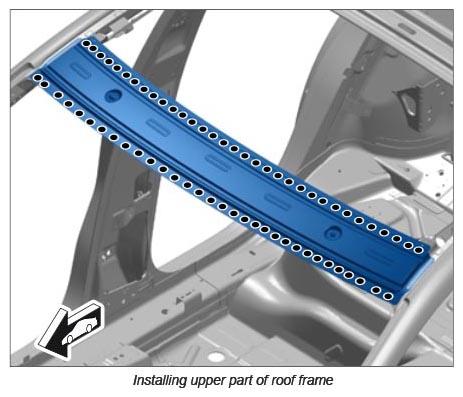

3. Resistance spot-weld upper part of roof frame.
