Removing Control Valve For Air Cushion

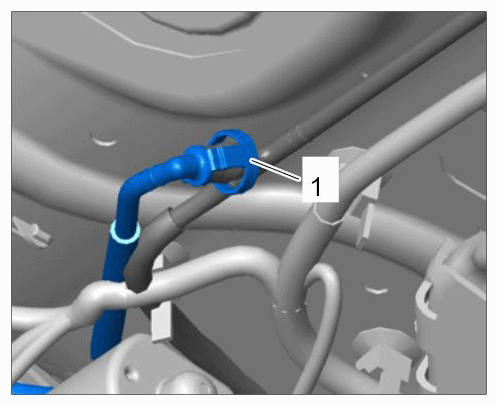

  1. Release and pull off the pressure line (red) -1-  under the seat.
    G11981908

    Disconnecting pressure line under seat

  2. Pull the pressure line (red) through between the backrest frame and seat.

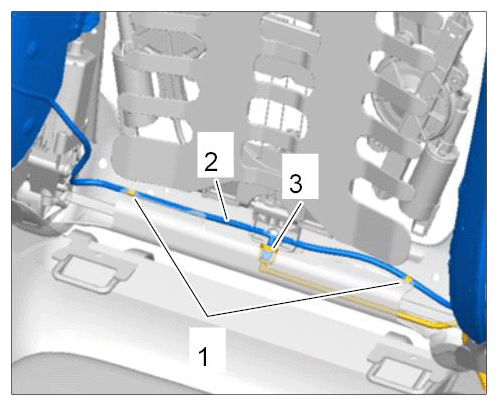

  3. Release control valve pressure line (green) -3-  from the air cushion pressure line (green) -2-  and pull it off. Do not loosen tie-wraps -1-  .
    G11981909

    Disconnecting pressure line for air cushion

  4. Unscrew two fastening screws from the backrest air cushion. → 721719 REMOVING AND INSTALLING AIR CUSHION FOR BACKREST - SECTION ON "REMOVING"

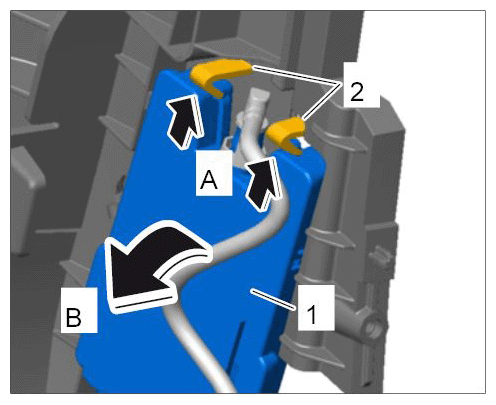

  5. Release locking mechanisms -2-  on the control valve -1- (-A-)  and remove the control valve -B-  .
    G11981910

    Disconnecting control valve

  6. Release pressure line (blue) -3-  from the control valve and pull it off.
    G11981911

    Disconnecting pressure line and connector

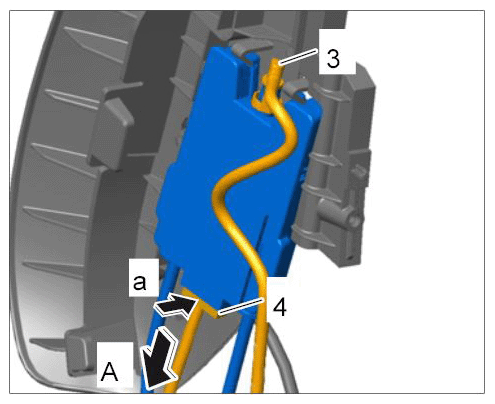

  7. Release electric plug connection -4-  (-a-  ) and disconnect it -A-  .
