Converting Reconditioned Engine

Information

• Some modifications are required in order to replace the old, removed engine with a new one.
• Starting point for conversion work: Old engine is secured to assembly support and the new one is in the transport cradle.
• At higher mileages, components (coolant hoses, clips, etc.) must be checked for damage and replaced if necessary.
• Seals must be checked and replaced if necessary.

> 100127 REMOVING ENGINE FROM TRANSMISSION AND MOUNTING ENGINE ON TRANSMISSION

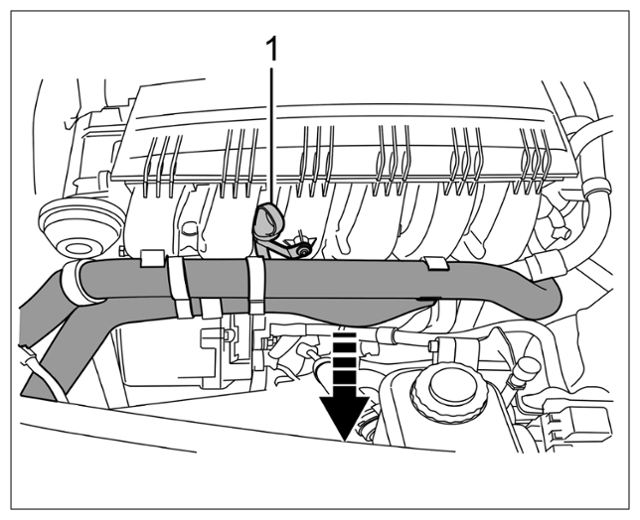

Remove transport stoppers on water and vacuum connection pieces on new engine. Re-fit clip on cable guide.

> Tightening torque 10 Nm (7.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing and installing additional coolant pump

> Tightening torque 25 Nm (19 ftlb.)

> Tightening torque 25 Nm (19 ftlb.)

1. Re-fit generator.

   > WM 272219 REMOVING AND INSTALLING GENERATOR (CAYENNE)

2. Re-fit right engine bracket. > Fastening screws

   > Tightening torque 45 Nm (33 ftlb.)

3. Re-fit belt tensioner.

   > WM, 137319 REMOVING AND INSTALLING BELT TENSIONER

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

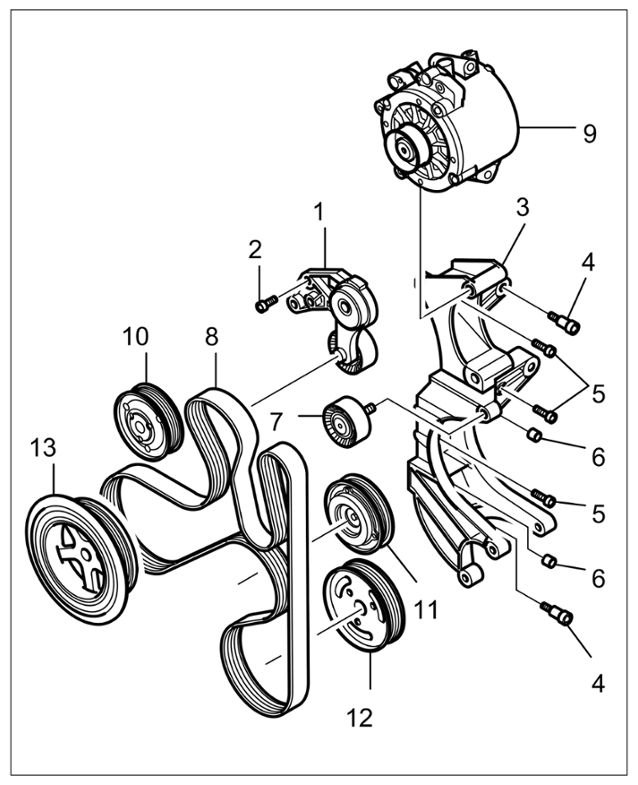

   Removing and installing auxiliary units and bracket for auxiliary units

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

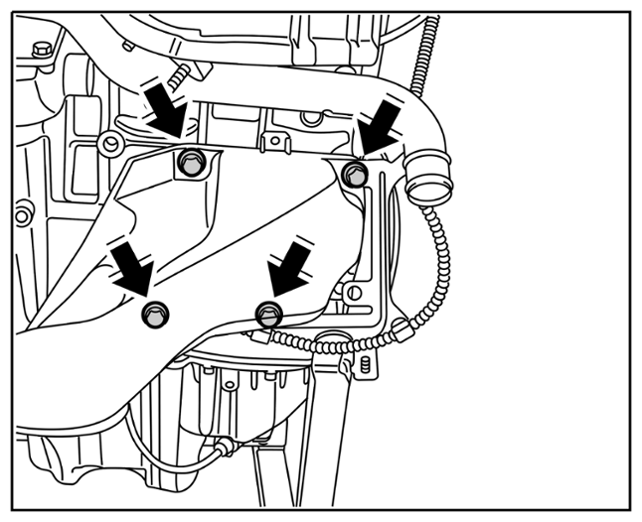

   Fastening screws

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

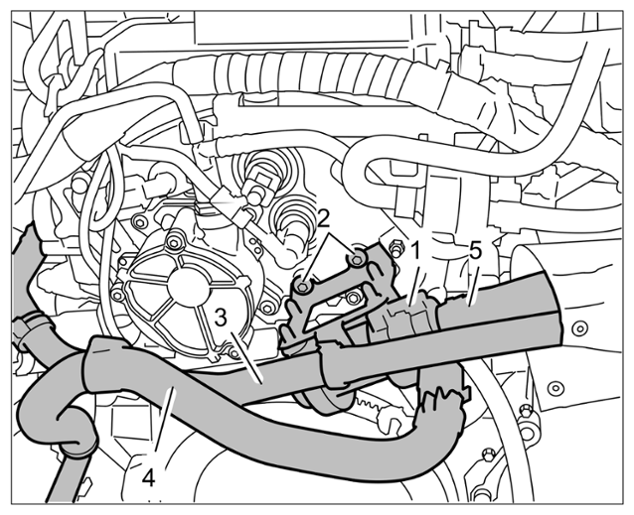

Coolant hoses

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

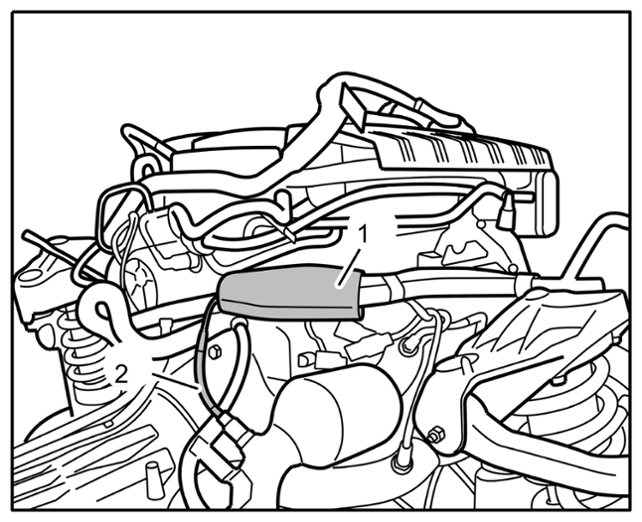

Heat protection on cable

> 100127 Removing engine from transmission and mounting engine on transmission - MOUNTING
