Subsequent Work

Install crankcase ventilation line.
1. 1.1. 2WD: Tightening torque Item 2
  2WD: Tightening torque Item 3 Initial tightening 4 Nm (3 ftlb.) Final tightening 90°
2. 1.2. 4WD: Tightening torque Item 2

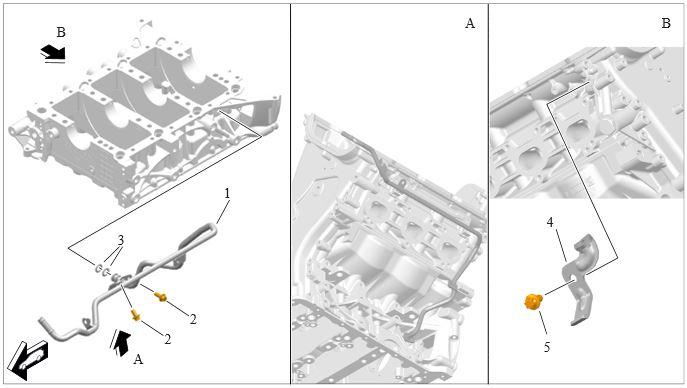

  Fig 1: Exploded View Of Crankcase Ventilation - 2WD
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

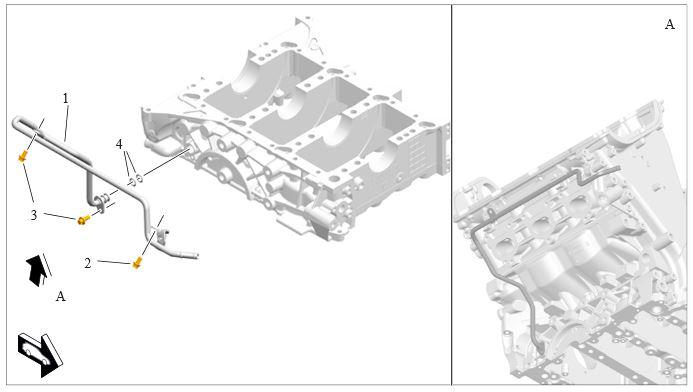

  Fig 2: Exploded View Of Crankcase Ventilation - 4WD
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure secondary-air line at the cylinder head.
1. 2.1. Tightening torque Item 4 Tightening torque 10 Nm (7.5 ftlb.)

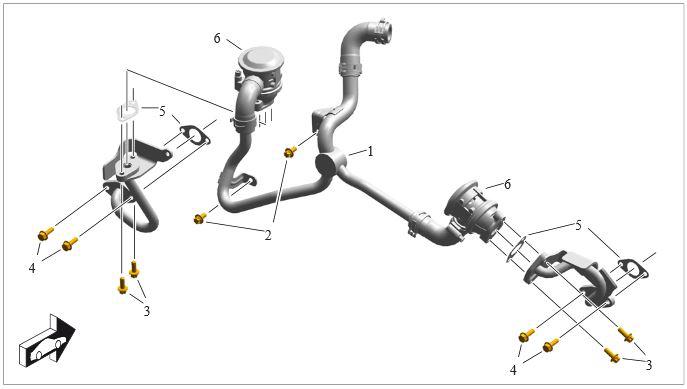

  Fig 3: Exploded View Of Air Injection System
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure coolant vent line on the cylinder head.
1. 3.1. Tightening torque Item 2 Tightening torque 10 Nm (7.5 ftlb.)

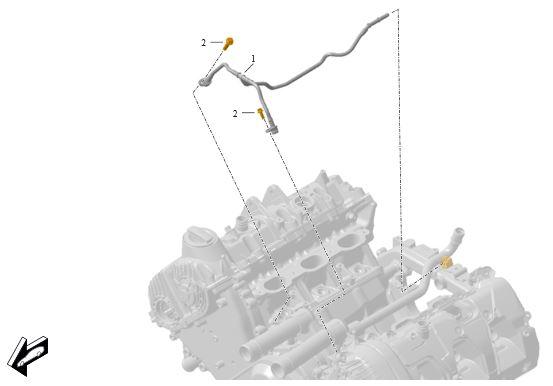

  Fig 4: Identifying Coolant Vent Line
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect electric plug connections.
Secure fuel connection line on the fuel collection pipe.→ Installing Fuel Distributor Pipe
Install deflector rail and tensioning rail on the cylinder head. → Installing Guide And Tensioning Rails
Install timing chain. → Installing Drive Chain For Timing Drive Mechanism
Install timing-case cover. → Installing Timing-Case Cover
Install camshafts. → 150520 REMOVING AND INSTALLING CAMSHAFTS
Install intake-air distributor. → Installing Intake-Air Distributor
Install upper part of oil pan. → Installing Oil Guide Housing
Install turbocharger. → Installing Turbocharger
Install engine and transmission. → Installing Engine
