Installing Drive Chain For Timing Drive Mechanism

Information

For tightening torques, tightening sequence and assembly overview, see → 1001IN TIGHTENING TORQUES, TIGHTENING SEQUENCES, ASSEMBLY OVERVIEWS

  1. Install drive chain for timing drive mechanism.
    NOTE: Timing chain running direction not maintained
    • Risk of damage to sprockets

    → Mark running direction of timing chains.

    1. 1.1. Fit drive chain for timing drive mechanism onto the drive chain sprockets according to the markings applied during removal.
    2. 1.2. Install guide rail and tighten screws -1-  .
    3. 1.3. Install chain tensioner and tighten screws -2-  .
    4. 1.4. Press guide rail for chain tensioner for the drive chain in -direction of arrow-  and pull locking pin T40071  out of the chain tensioner.

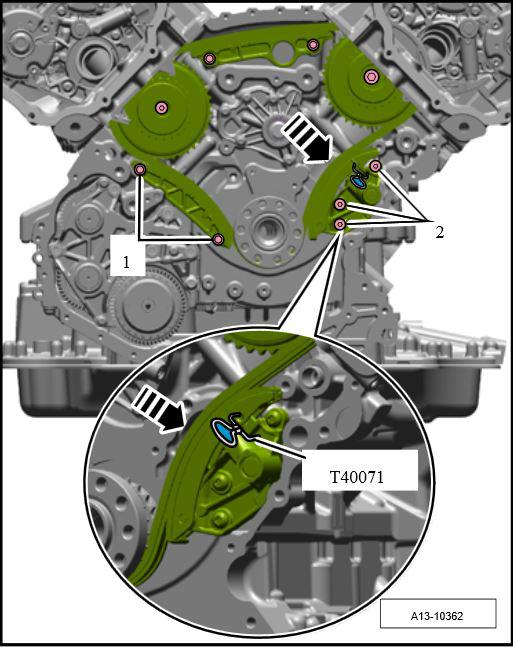

      Fig 1: Identifying Guide Rail For Chain Tensioner
      G09804585Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Further installation is performed in reverse order.
