Installing Front Door Window

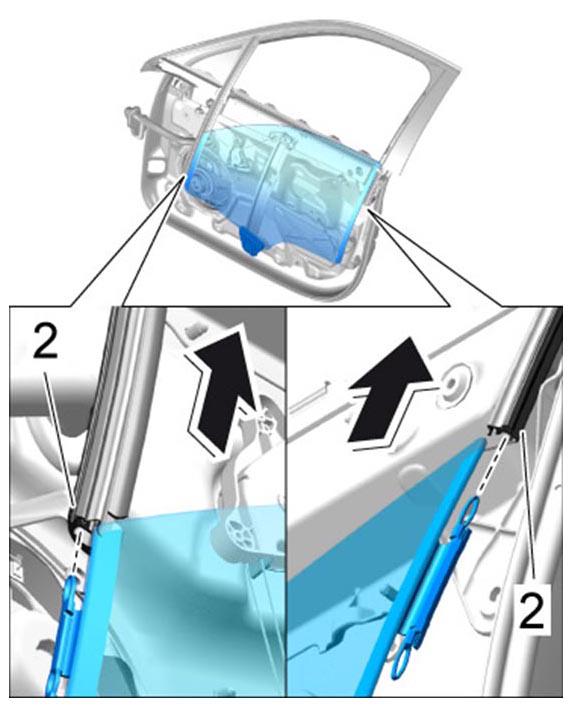

Fig 1: Inserting Door Window Glass Into Guide

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Insert the door window glass into the power windows mounting.

1. 2.1. Roll the door window up fully.
2. 2.2. Align the door window until it is parallel with the B-pillar trim and corner window pane -A-  .
3. 2.3. Check that the catches are adjusted without tension and re-adjust them if necessary -B-  .

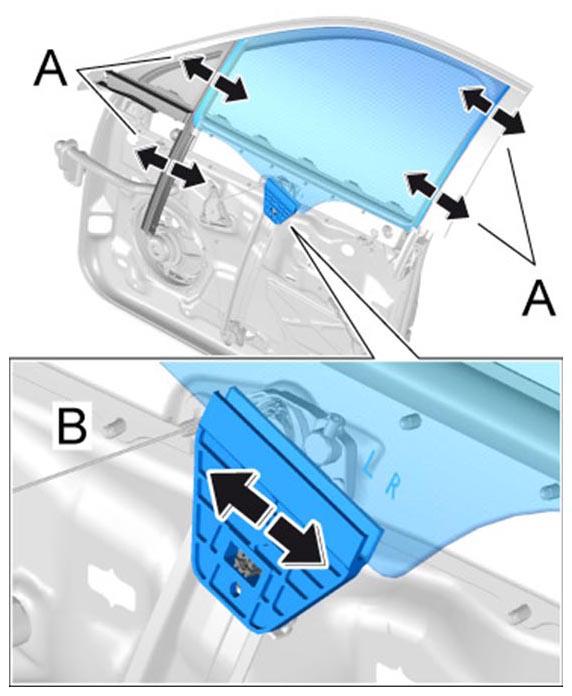

Fig 2: Aligning Door Window Glass
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

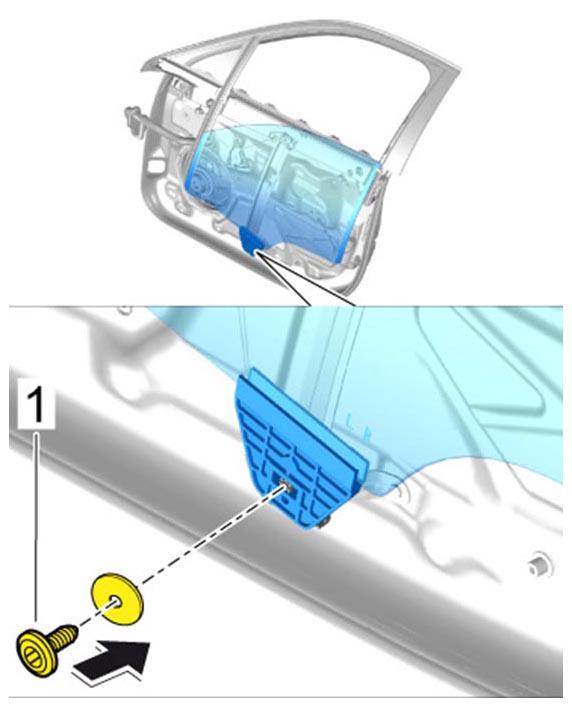

Fig 3: Securing Door Window

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• The door window in the door in question must be closed in order to install the door sub-frame.
• Close the window manually before installing the window regulator motor.
