Installing Power Window Motor

  1. Position power window motor and push into the teeth.
  2. Screw in fastening screws -1-  .
  3. Connect plug connection -A-  until it engages securely.

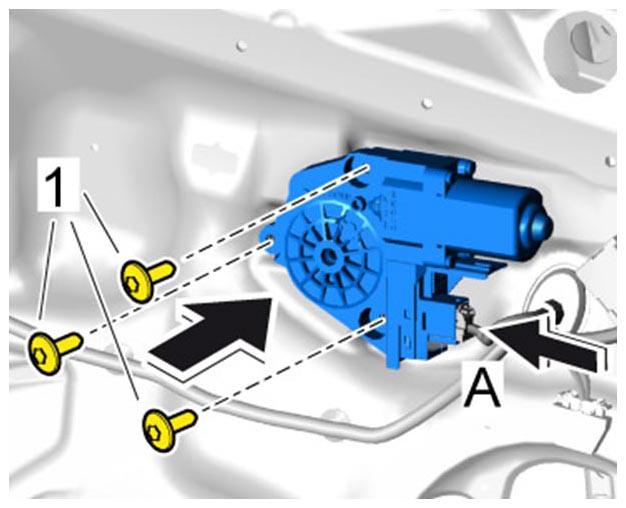

    4. Fig 1: Installing Power Window Motor
    G09811034Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Perform a function test.
  5. Teach end positions of the power window motor.
    1. 5.1. Pull the rocker switch and close the window fully.
    2. 5.2. Pull the rocker switch again. (The upper end position is stored.)
    3. 5.3. Press the rocker switch and open the window fully.
    4. 5.4. Press the rocker switch again. (The lower end position is stored.)
