Installing Upper Part Of Centre Console Cover

  1. Clip in cover.
    1. 1.1. Place cover in installation position.
    2. 1.2. Clip in cover.

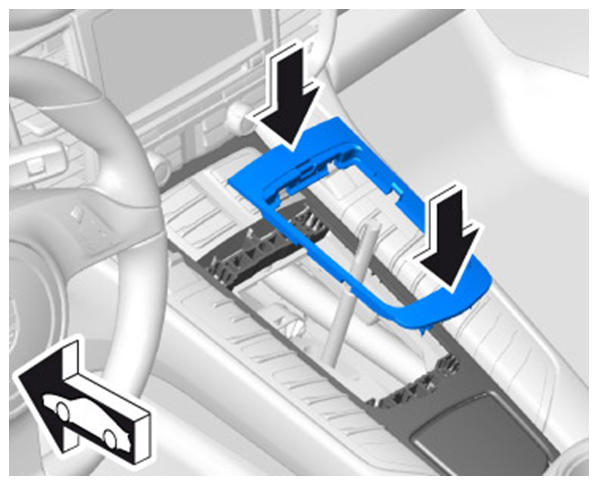

      3. Fig 1: Installing Upper Part Of Centre Console Cover Clip
      G09811608Courtesy of PORSCHE CARS NORTH AMERICA, INC.


  1. Clip in upper part of center console cover.
    1. 1.1. Place cover in installation position.
    2. 1.2. Clip in cover.

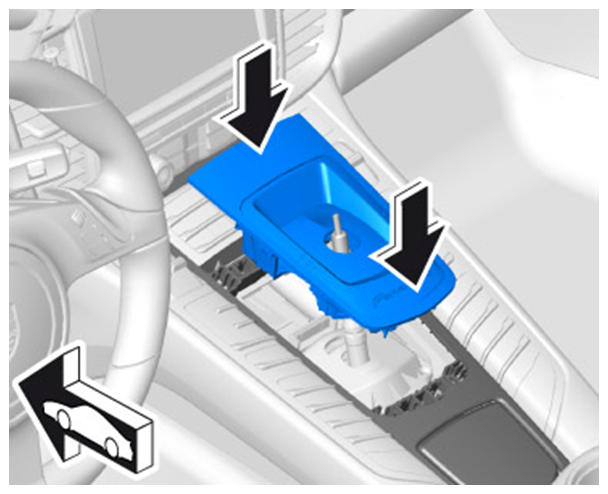

      3. Fig 1: Installing Upper Part Of Centre Console Cover Clip
      G09811622Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Install selector knob. → INSTALLING SELECTOR KNOB
