Installing Selector Knob

  1. Fit selector knob onto the gear selector rod.
  2. Turn locking mechanism at bottom of selector knob by 45 degrees in direction of arrow and lock selector knob.

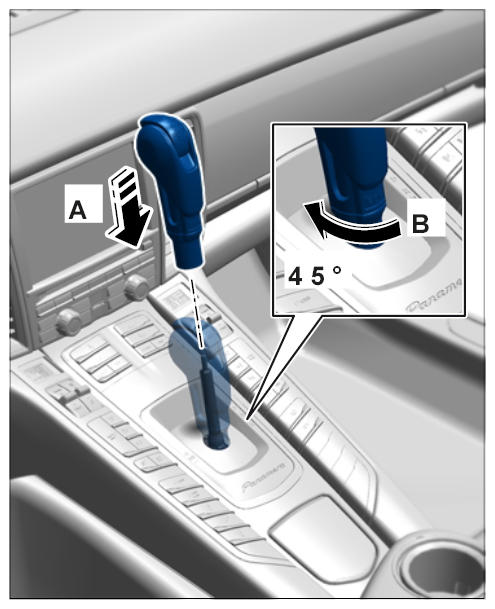

    3. Fig 1: Installing Selector Knob
    G09806786Courtesy of PORSCHE CARS NORTH AMERICA, INC.
