Removing And Installing Optical Contacts: Notes

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove PCM. Installing display and operator control unit PCM 3.0

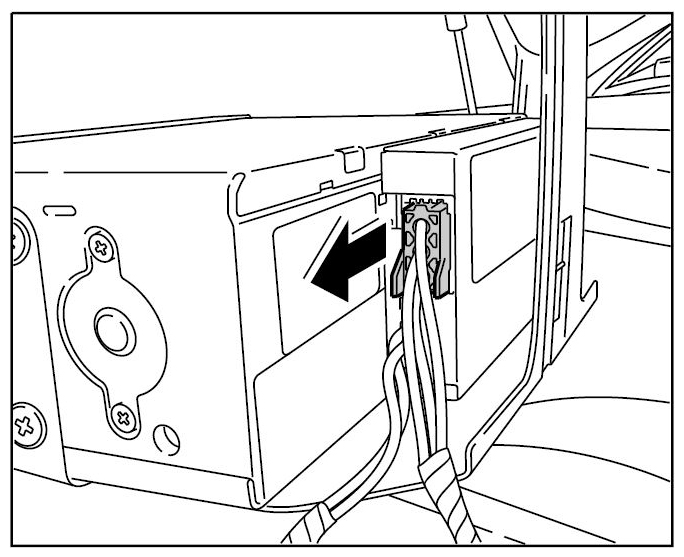

Fig 1: Disconnecting Plug Connection On PCM

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

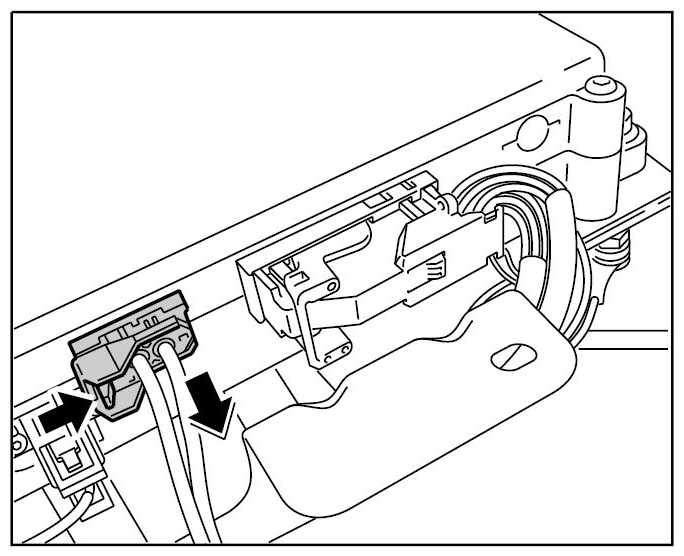

Fig 2: Disconnecting Plug Connection On CD Changer

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

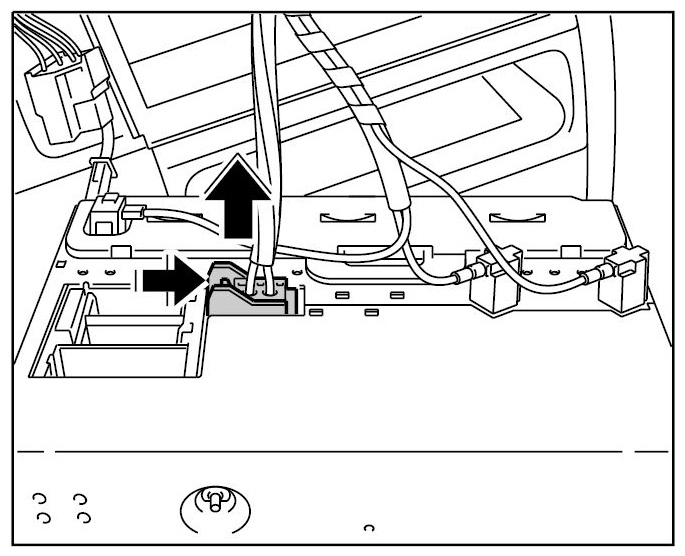

Fig 3: Unplugging Telephone Control Unit Plug Connection

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
