Installing Display And Operator Control Unit PCM 3.0

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. If the PCM unit has to be replaced and a telephone control unit is installed:
    1. 1.1. Install the telephone control unit. → Installing Control unit for telephone
  2. Plug in central connector -5-  for PCM and lock it -arrow-  .

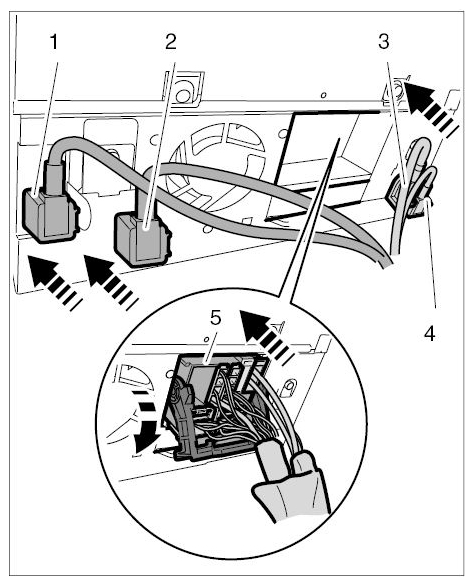

    Fig 1: Connecting Electric Connectors And Antenna Lines
    G09414895Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Plug in antenna connectors one after the other -4, 3, 2, 1-  until they engage securely.
  4. Carefully slide the PCM unit as far as it will go into the housing in the dashboard. Make sure that the lines are not pinched.

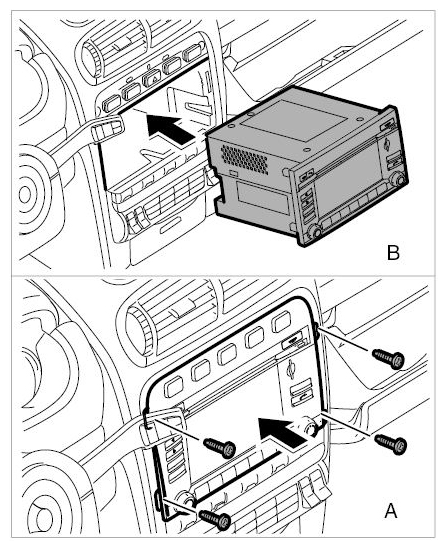

    Fig 2: Sliding PCM Unit And Secure With Fastening Screws
    G09414896Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Secure PCM to the dashboard using the four fastening screws.
  6. Fit the covering frame and press into place until it engages securely.

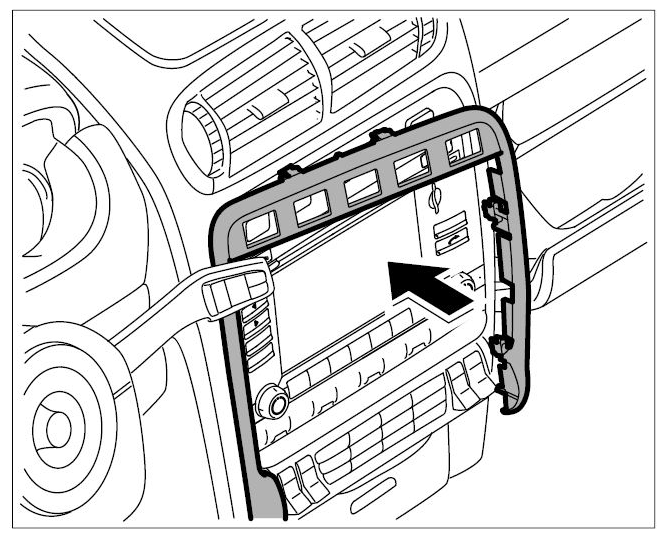

    Fig 3: Fitting Covering Frame
    G09414897Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Switch on PCM.
