Removing Cover For 2/3-Split Folding Rear Backrest

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

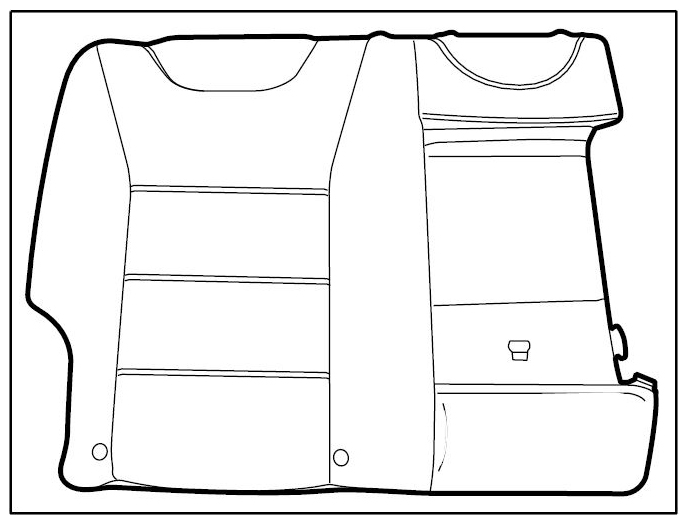

Fig 1: Identifying 2/3-Split Folding Rear Backrest Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove padding for 2/3-split folding rear backrest. → Removing Padding For 1/3-Split Folding Rear Backrest

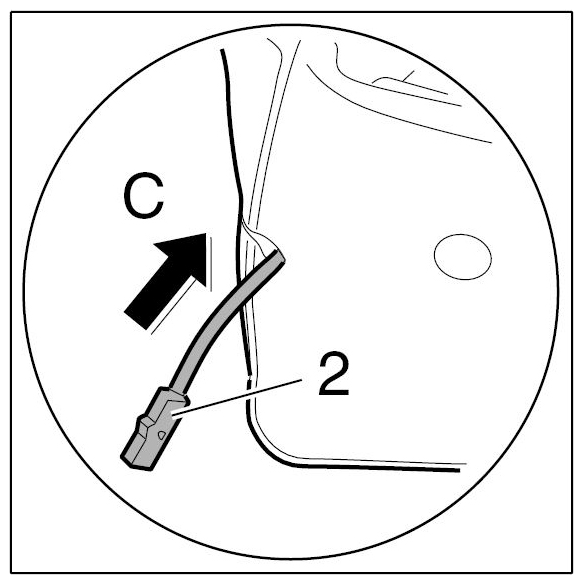

Push the seat heating wiring harness -2- through the cover to the inside -Arrow C- .

Fig 2: Pushing Seat Heating Wiring Harness Through Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

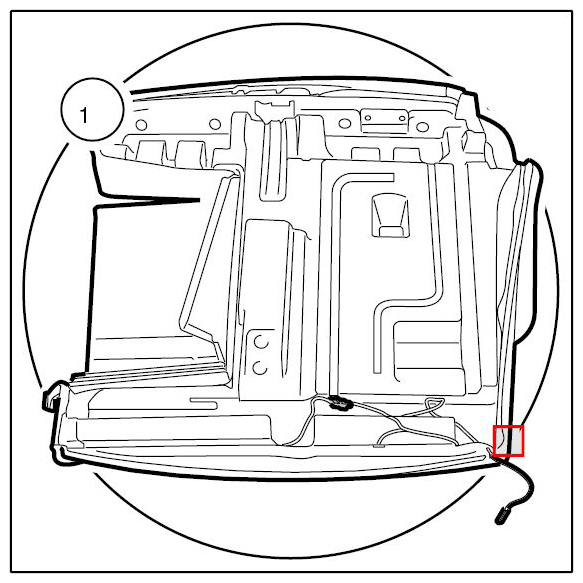

Fig 3: Identifying Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

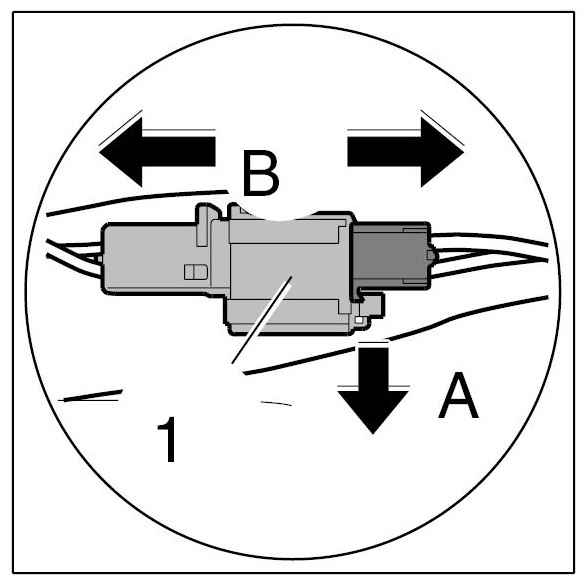

Release plug connection -1- (-Arrow A- ) and disconnect it -Arrow B- .

Fig 4: Releasing 2/3-Split Folding Rear Backrest Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

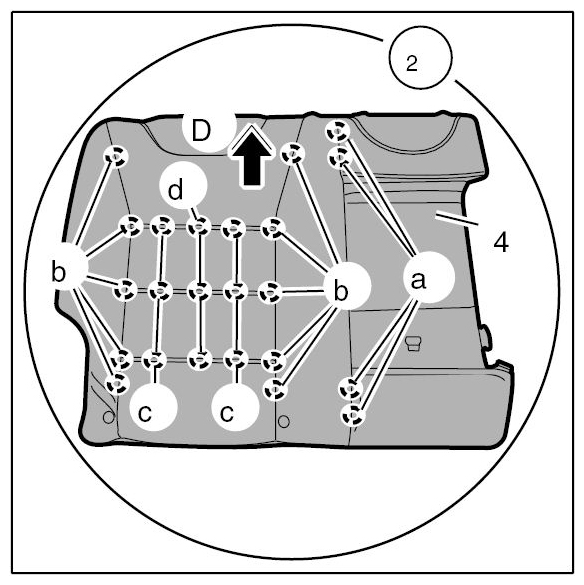

Cut open the cushion clips -3- in the sequence shown -a to d- and at the positions indicated -circle marks- using side cutters and remove the cover -4- from the padding -Arrow D- . Remove remaining pieces of the cushion clips 00000 -3- .

Fig 5: Removing Rear Backrest Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

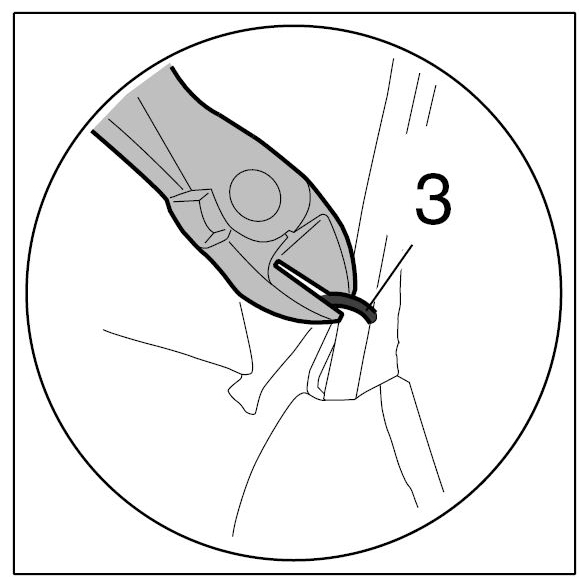

Fig 6: Removing Cushion Clips Using Tool
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
