Removing Padding For 1/3-Split Folding Rear Backrest

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

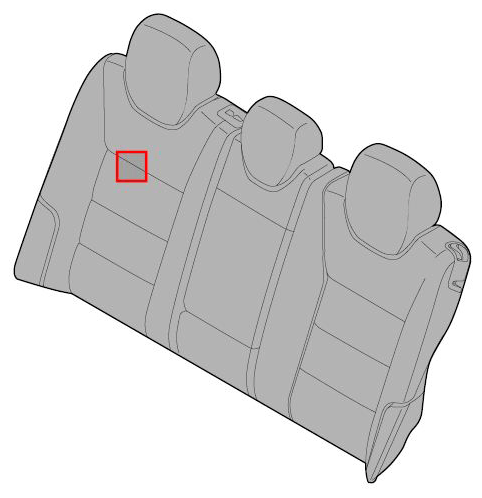

Fig 1: Identifying 1/3-Split Folding Rear Backrest Pad
G09414031Courtesy of PORSCHE CARS NORTH AMERICA, INC.

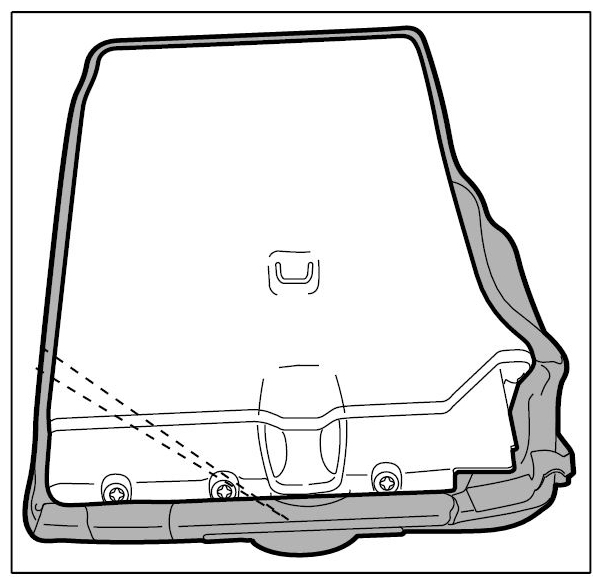

Fig 2: Identifying 1/3-Split Folding Rear Seat
G09414032Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Remove backrest. → Removing rear backrest
  2. Remove locking mechanism for rear backrest. → Removing lock for 1/3-split folding rear backrest
  3. Removing headrest
  4. Remove support: Undo fastening screws -2-  .

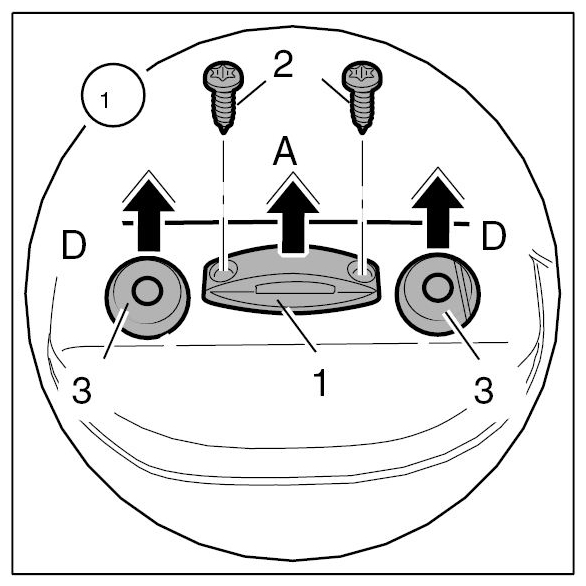

    Fig 3: Removing Headrest Support Fastening Screw (2)
    G09414033Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Remove the support -1- -Arrow A-  .

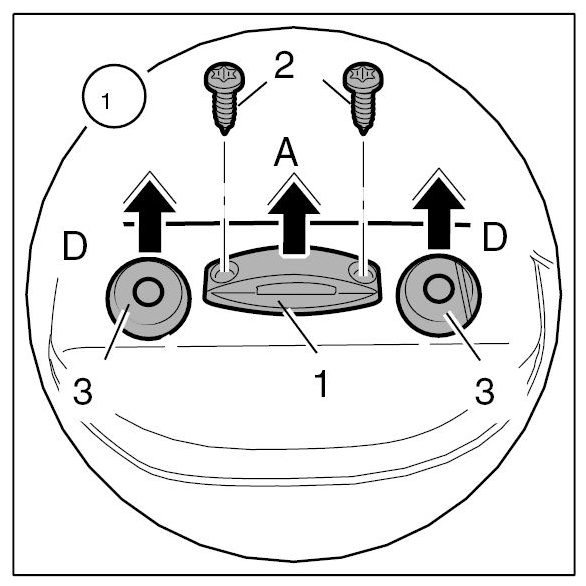

    Fig 4: Removing Headrest Support Fastening Screw (1)
    G09414034Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Removing headrest guides: Insert screwdriver (width 2 mm) from inside into bore above locking tab.
  7. Press screwdriver in direction of arrow -Arrow B-  and release locking tab -Arrow C-  .

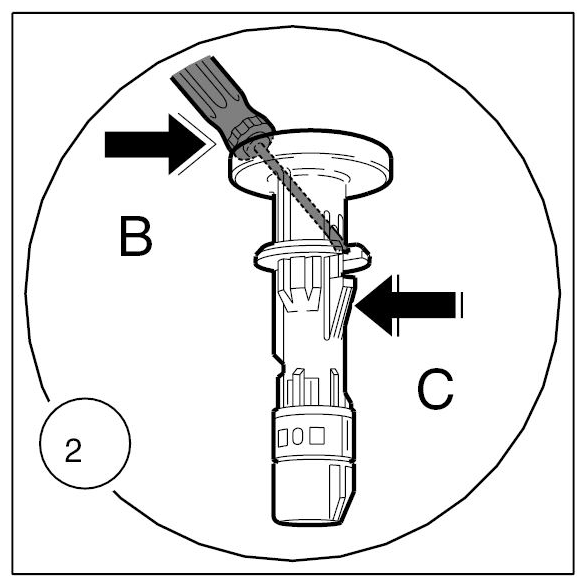

    Fig 5: Removing Headrest Locking Tab Using Screwdriver
    G09414035Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Pull out headrest guides -3- -Arrow D-  .

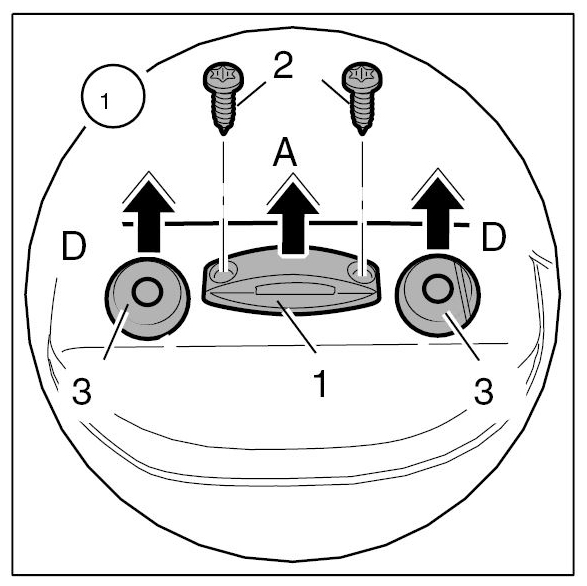

    Fig 6: Pulling Out Headrest Guides (3)
    G09414036Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  9. Remove padding for backrest: Lever out piping -4-  of cover for seat -5-  with a plastic wedge at the upper left corner -Arrow E-  .

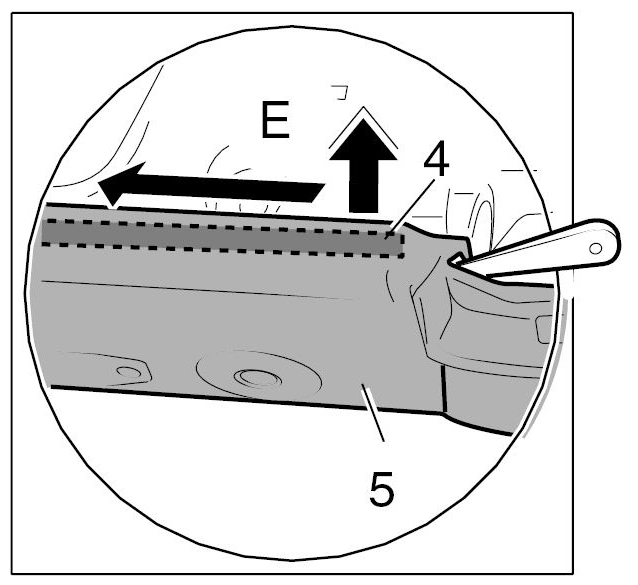

    Fig 7: Removing Padding For Backrest Using Tool
    G09414037Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  10. Pull piping -4-  of cover for backrest -5-  out completely in the direction of the arrow.
    Fig 8: Pulling Piping -4 Of Backrest Cover
    G09414038Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  11. Pull cover for backrest -5-  over the pin -6- -Arrow F-  .

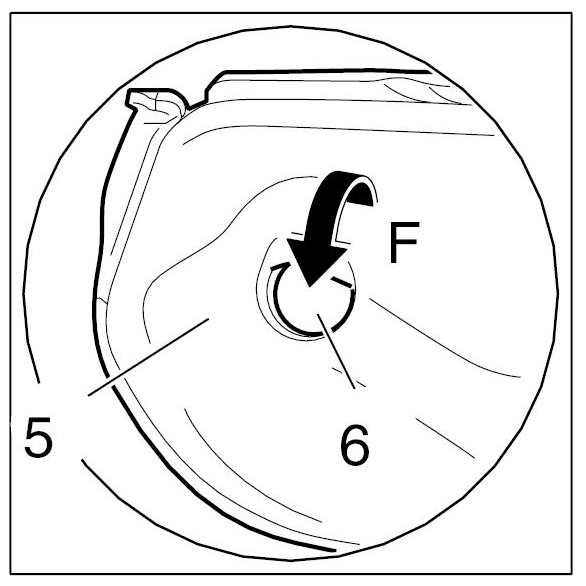

    Fig 9: Pulling Cover For Backrest - 5 Over Pin - 6
    G09414039Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  12. Pull cover for backrest -5-  over the holder for child-lock button -7- -Arrow G-  .

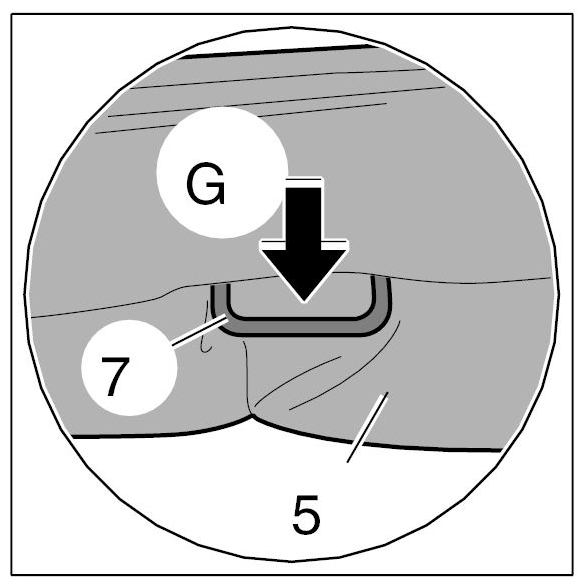

    Fig 10: Pulling Backrest Cover Over Child-Lock Button Holder
    G09414040Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  13. Remove backrest frame -8-  from the padding with cover for backrest -5- -Arrow H-  .

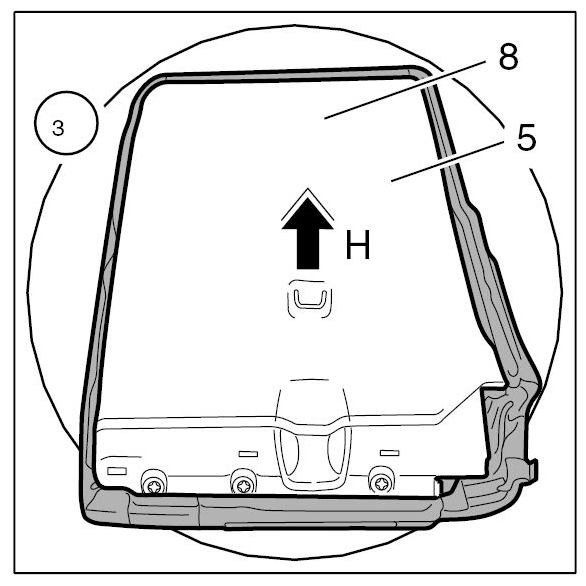

    Fig 11: Removing Backrest Frame - 8 From Padding
    G09414041Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  14. Remove cover for rear backrest. → Removing Cover For Rear Backrest
