Removing Cover For 1/3-Split Folding Rear Backrest

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

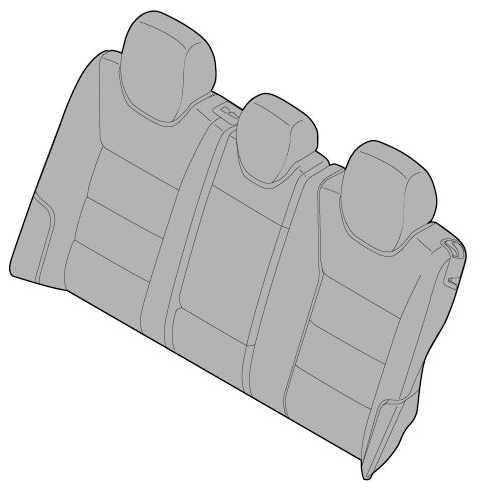

Fig 1: Identifying 1/3-Split Folding Rear Backrest Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

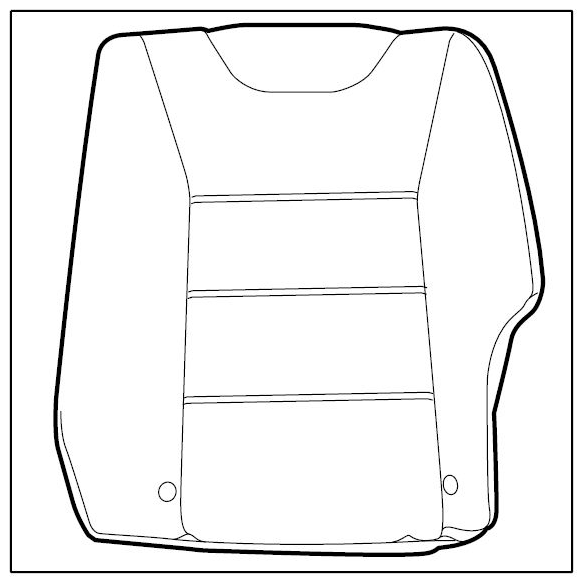

Fig 2: Identifying 1/3-Split Folding Rear Seat

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove padding for rear backrest. → Removing Padding For 1/3-Split Folding Rear Backrest
Only for vehicles with seat heating: Push the seat heating wiring harness -2- through the cover to the inside -Arrow C- .

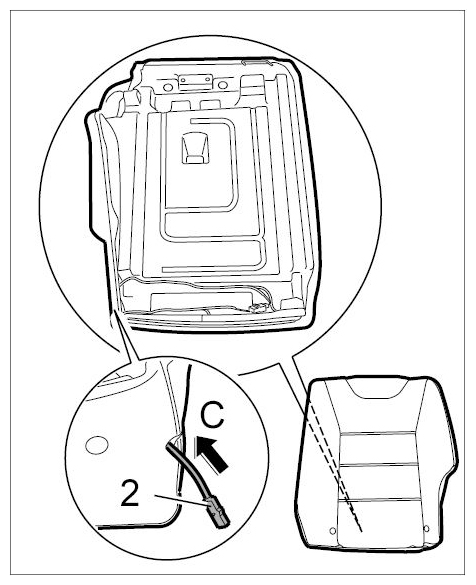

Fig 3: Pushing Seat Heating Wiring Harness Through Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release plug connection -1- -Arrow A- and disconnect -Arrow B- .

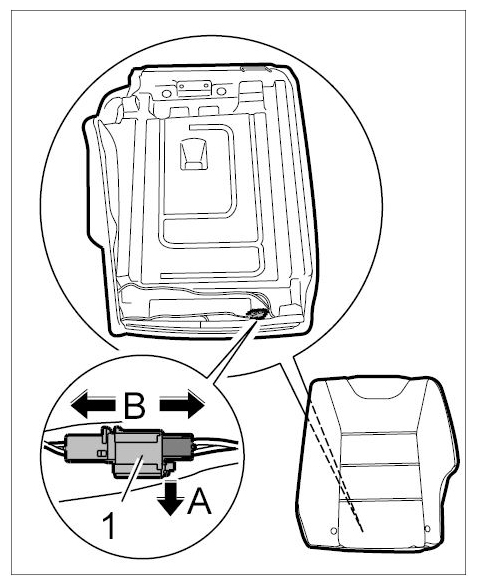

Fig 4: Releasing Heating Seat Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
To remove the cover, cut open the cushion clips 00000 -3- at the positions indicated and in the sequence shown -a to d- using side cutters and remove the cover from the padding. Remove remaining pieces of the cushion clips 00000 -3- .

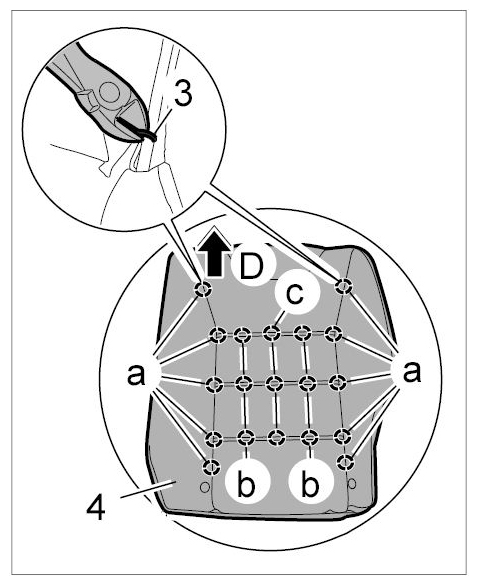

Fig 5: Removing Cushion Clips Using Tool
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
