Installing Cover For 2/3-Split Folding Rear Backrest

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

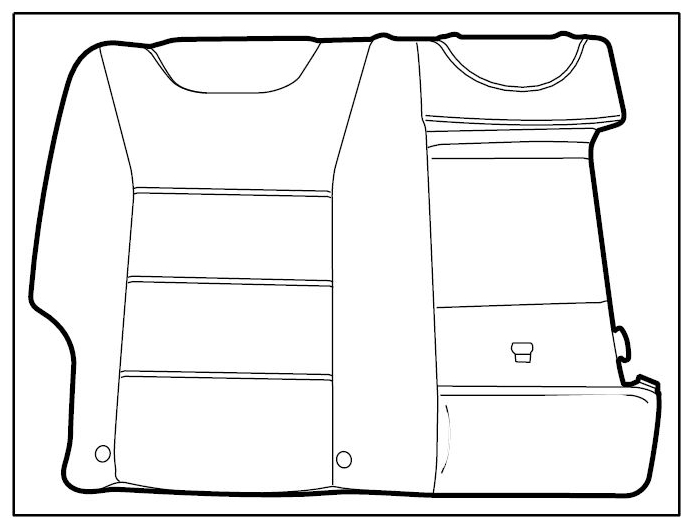

Fig 1: Identifying 2/3-Split Folding Rear Backrest Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Place cover -4- on the padding -arrow A- and align with the contour of the padding.

Fig 2: Placing Cover - 4 On Pad
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

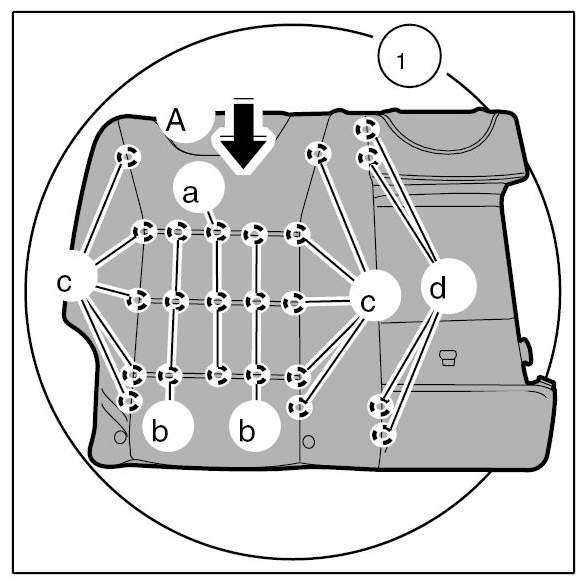

Fasten cover -4- to the padding using cushion clip pliers Nr.130 -5- and new cushion clips 00000 -3- in the sequence shown -a to d- .

Fig 3: Fastening Cover - 4 To Pad
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

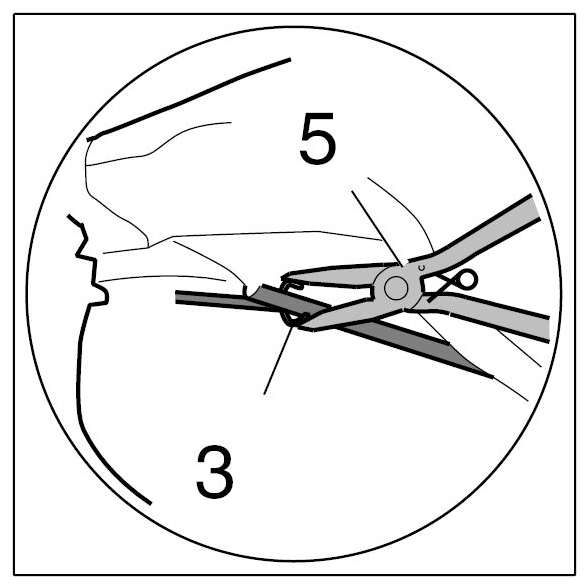

Fig 4: Installing Cushion Clips Using Cushion Clip Pliers
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

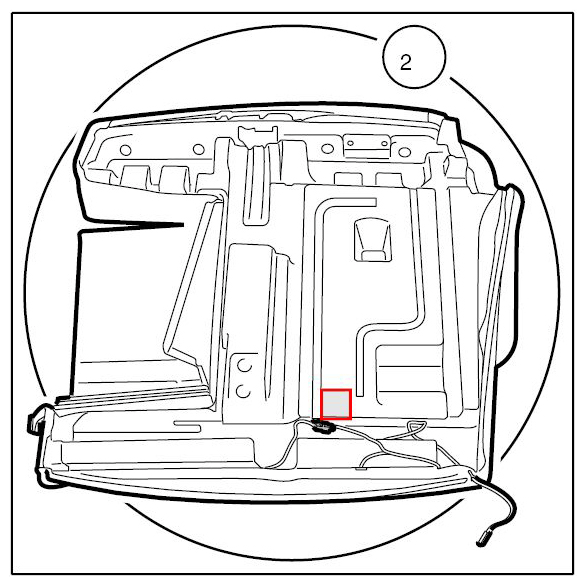

Fig 5: Identifying Seat Heating Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

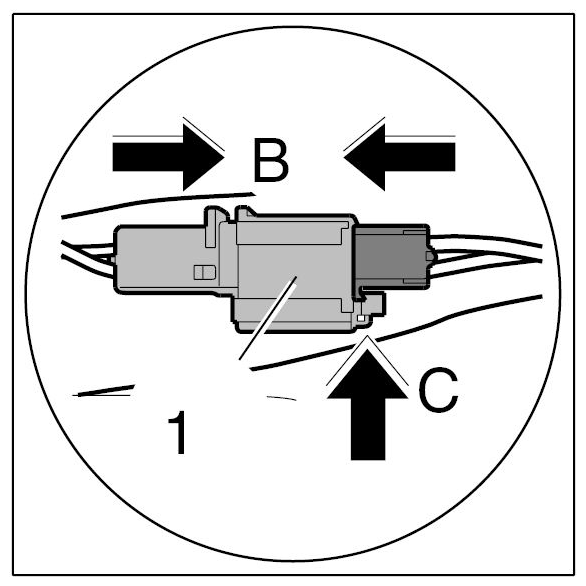

Only for vehicles with seat heating: Push together the plug connection -1- -arrow B- until the locking tab audibly engages -arrow C- .

Fig 6: Engaging Heating Seat Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

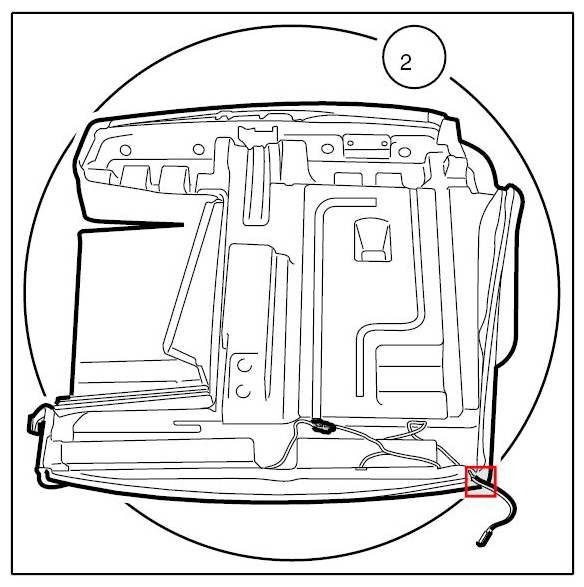

Fig 7: Identifying Seat Heating Wiring Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

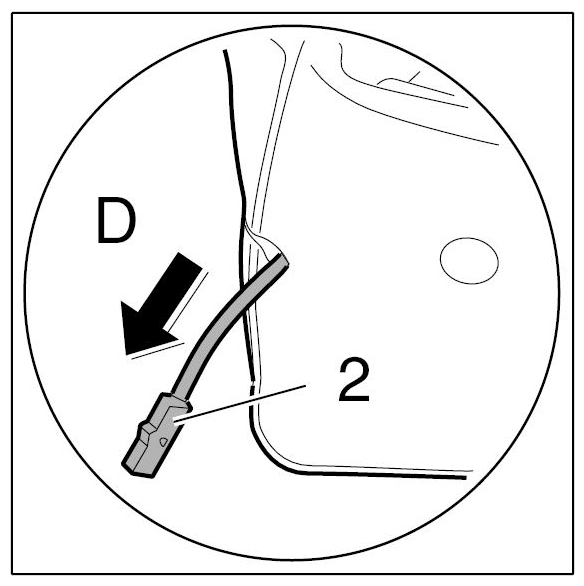

Push the seat heating wiring harness -2- through the cover to the outside -arrow D- .

Fig 8: Pushing Seat Heating Wiring Harness -2 Through Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install padding for 2/3-split folding backrest. → Installing Padding For 1/3-Split Folding Rear Backrest
