Installing Padding For 1/3-Split Folding Rear Backrest

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying 1/3-Split Folding Rear Backrest Pad

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

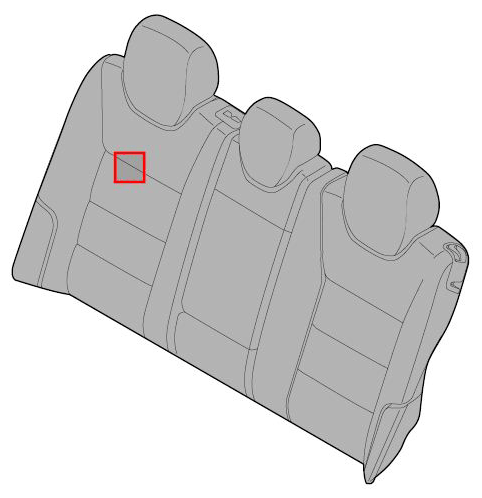

Fig 2: Identifying 1/3-Split Folding Rear Seat

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install cover for rear backrest. → Installing Cover For Rear Backrest
Place backrest frame -8- on the padding with cover for backrest -5- and align -Arrow A- . In doing so, pull cover for backrest -5- over the holder for child-lock button -7- -Arrow C- .

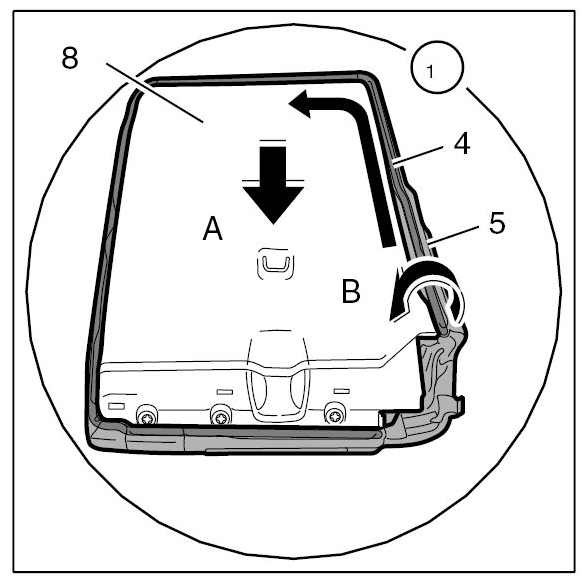

Fig 3: Aligning Backrest Frame With Pad
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

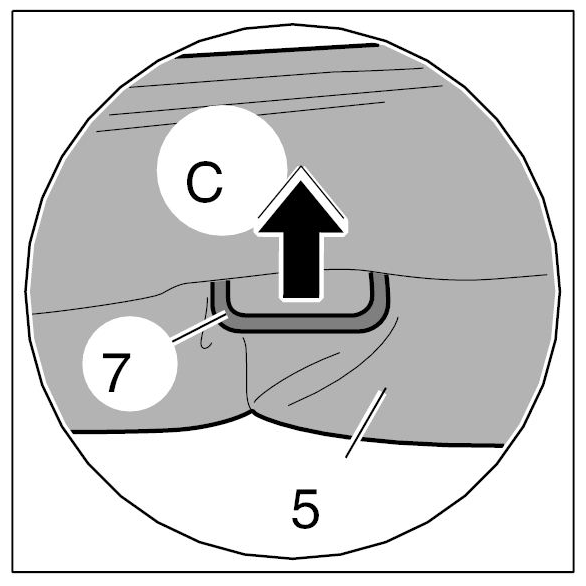

Fig 4: Pulling Backrest Cover Over Child-Lock Button Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull cover for backrest -5- over the pin -6- -Arrow D- .

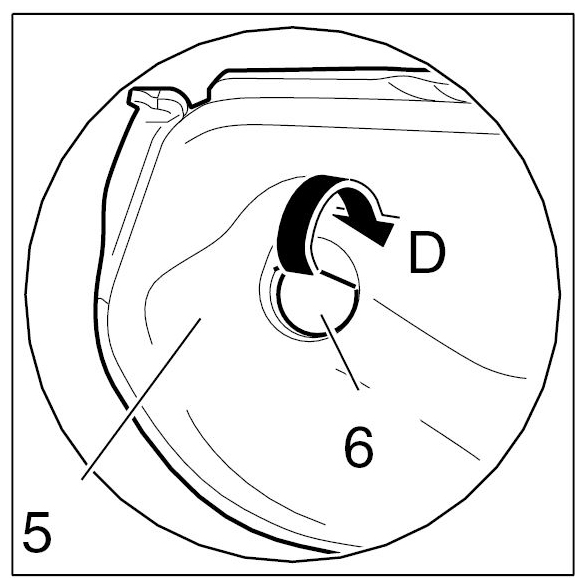

Fig 5: Pulling Backrest Cover - 5 Over Pin - 6
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press piping -4- of cover for backrest -5- completely into the backrest frame in direction of arrow -8- -Arrow B- .

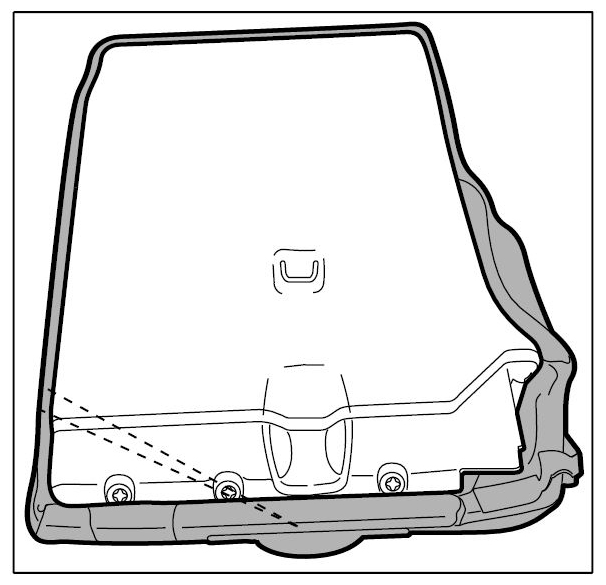

Fig 6: Pressing Backrest Cover Piping
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

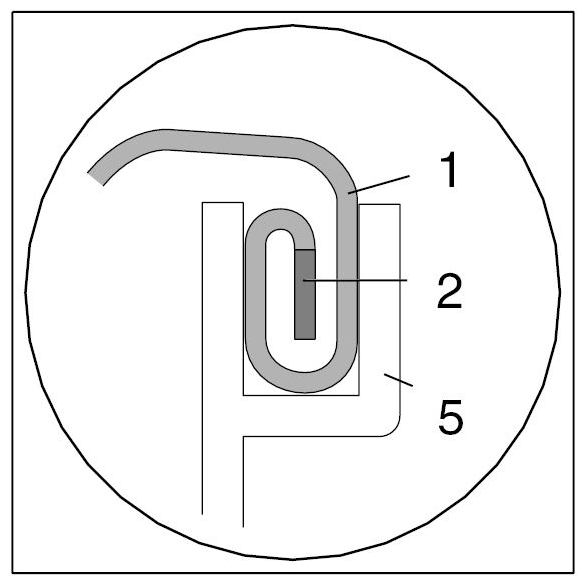

Fig 7: Identifying Backest Cover Piping
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The headrest guide with the headrest release is installed at the left side; the locking tabs of both headrest guides are facing inwards.
Installing headrest guides: Press in headrest guides -3- -Arrows E- , until the locking tabs engage audibly.

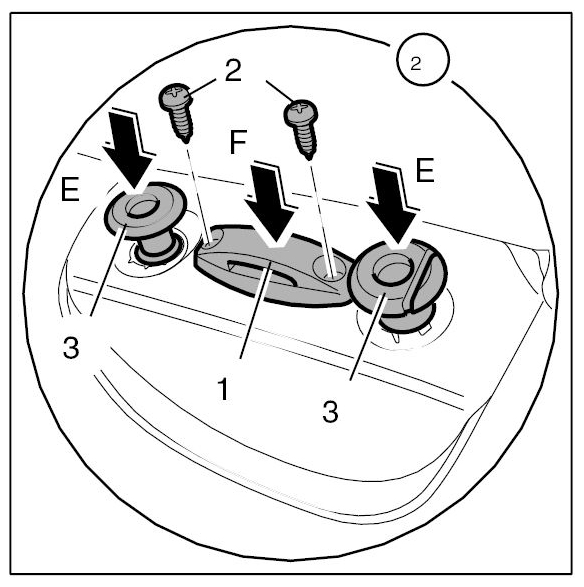

Fig 8: Pressing Headrest Guides - 3
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install support: Position the support -1- -Arrow F- .

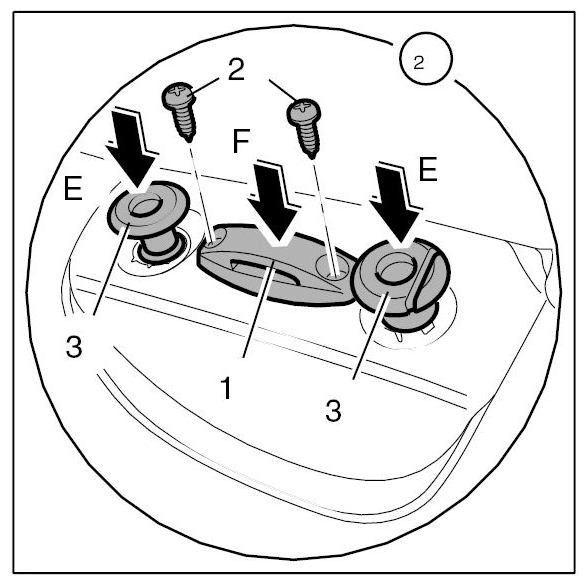

Fig 9: Installing Headrest Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in fastening screws -2- and tighten to the specified torque. → Technical Values

Fig 10: Installing Rear Backrest Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install locking mechanism for rear backrest → Installing lock for 1/3-split folding rear backrest
Install backrest. → Installing rear backrest
