Installing Cover For 1/3-Split Folding Rear Backrest

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

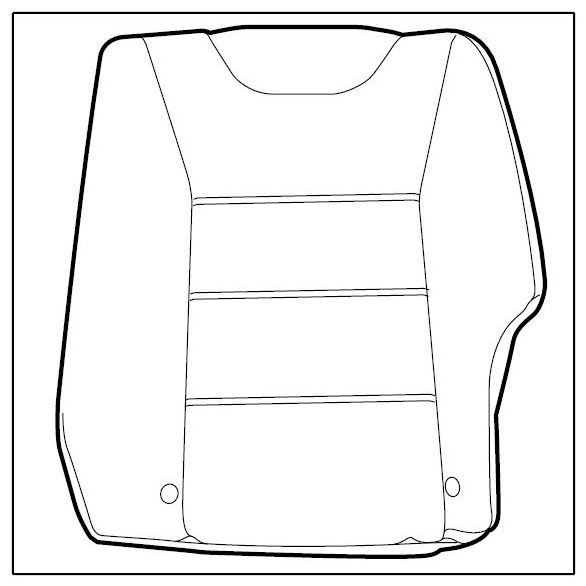

Fig 1: Identifying 1/3-Split Folding Rear Backrest Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

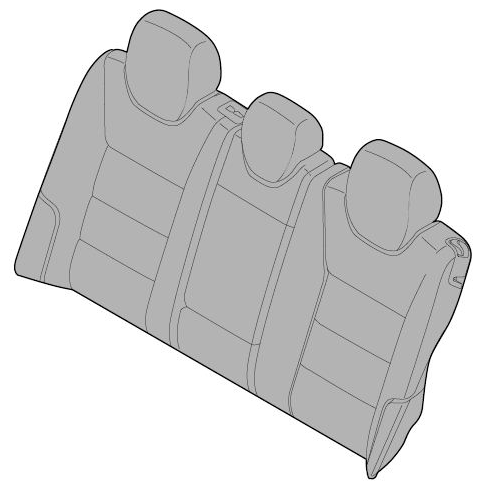

Fig 2: Identifying 1/3-Split Folding Rear Seat

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install cover: Place cover on the padding -arrow A- and align with the contour of the padding.

Fig 3: Placing Cover On Pad
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

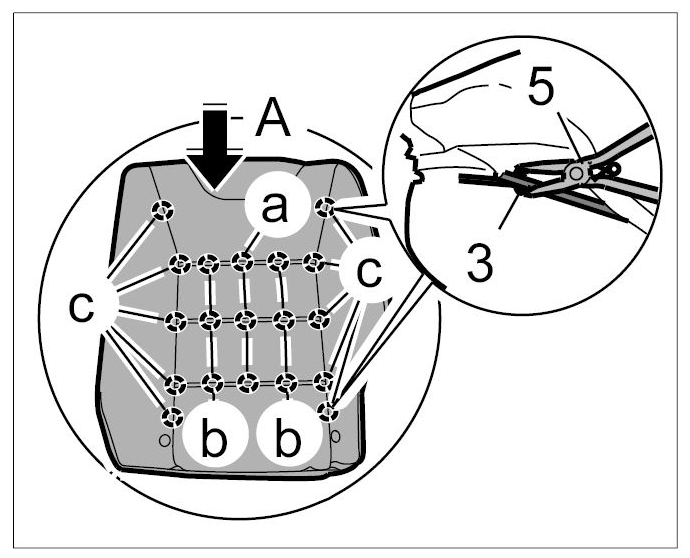

Fasten the cover to the padding using cushion clip pliers Nr.130 -5- and new cushion clips 00000 -3- in the sequence shown -a to c- .

Fig 4: Fastening Cover To Padding Using Cushion Clip Pliers
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

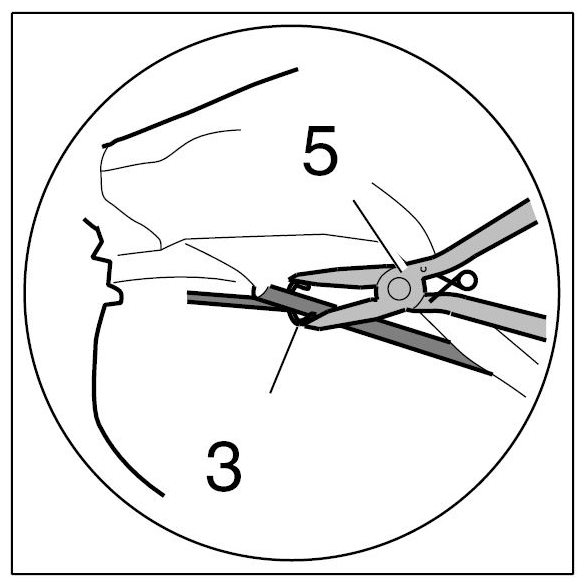

Fig 5: Installing Cushion Clips Using Tool
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

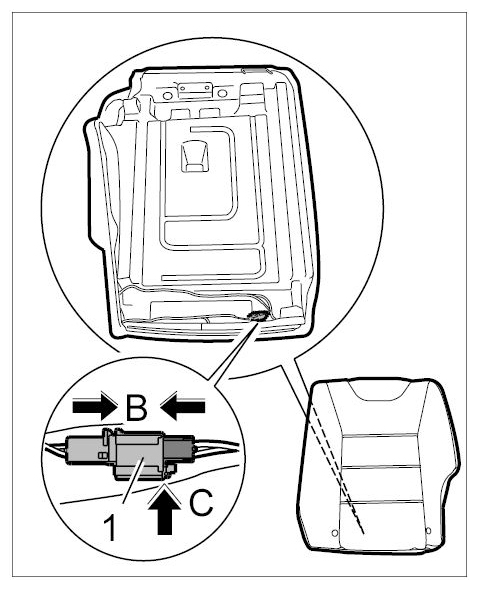

Only for vehicles with seat heating: Push plug connection -1- together -arrows B- until the locking tab audibly engages -arrow C- .

Fig 6: Engaging Heating Seat Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

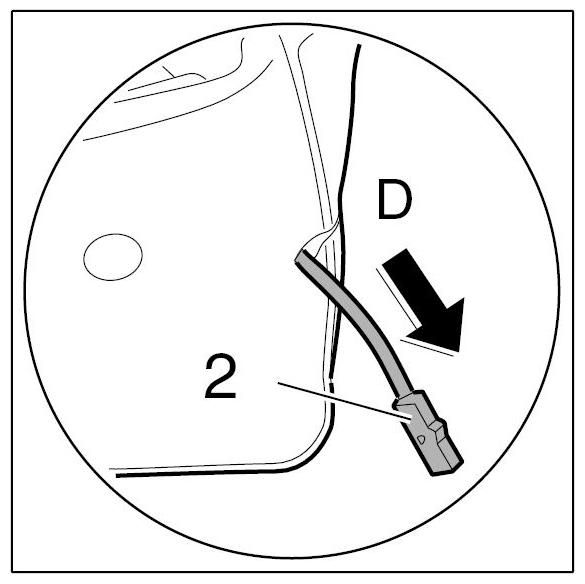

Push the seat-heater wiring harness -2- through the cover to the outside -arrow D- .

Fig 7: Pushing Seat-Heater Wiring Harness -2 Through Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install padding for rear backrest. → Installing Padding For 1/3-Split Folding Rear Backrest
