Installing Padding For 2/3-Split Folding Rear Backrest

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

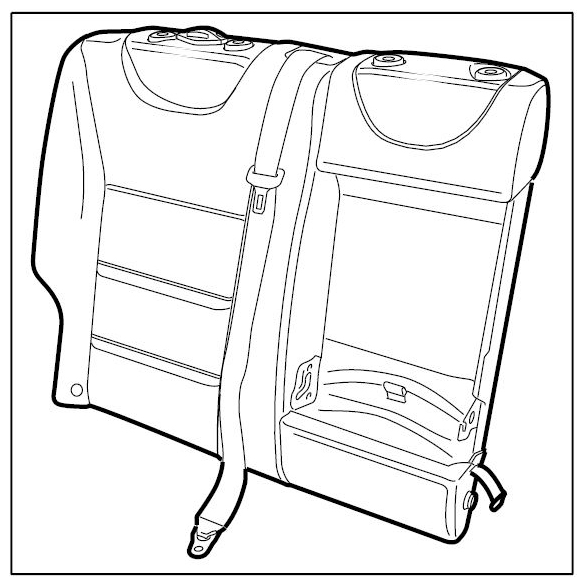

Fig 1: Identifying 2/3-Split Folding Rear Backrest Pad

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install cover for rear backrest: → Installing Cover For Rear Backrest

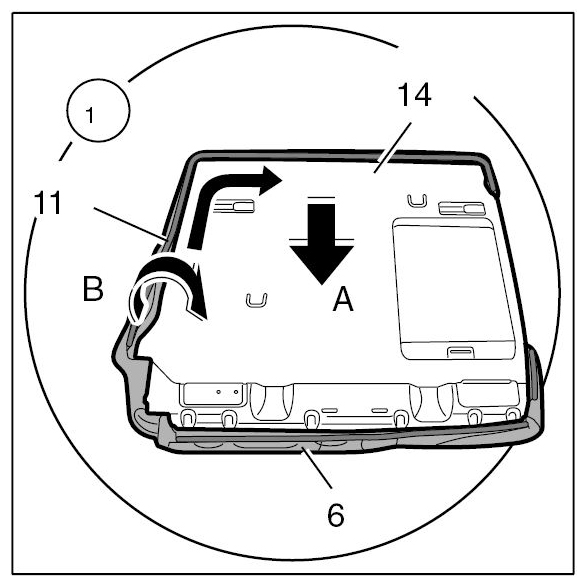

Install padding: Place backrest frame -14- on the padding with cover for backrest -6- and align -Arrow A- . In doing so, pull cover for backrest -6- over the holder for child-lock button -13- -Arrow C- .

Fig 2: Placing Backrest Frame - 14 On Pad
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

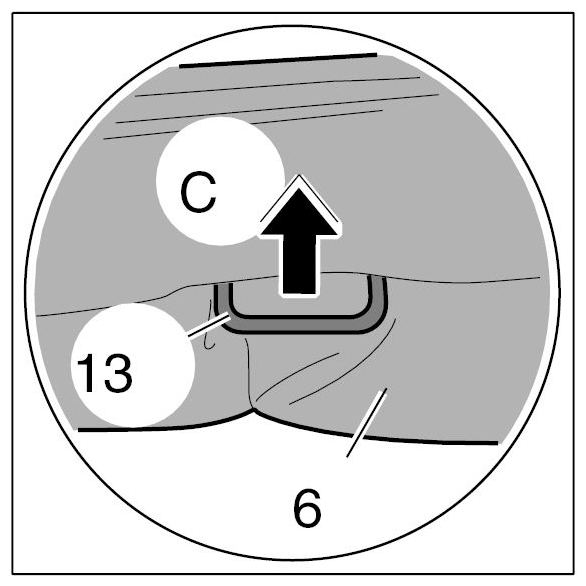

Fig 3: Pulling Backrest - 6 Cover Over Child-Lock Button Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

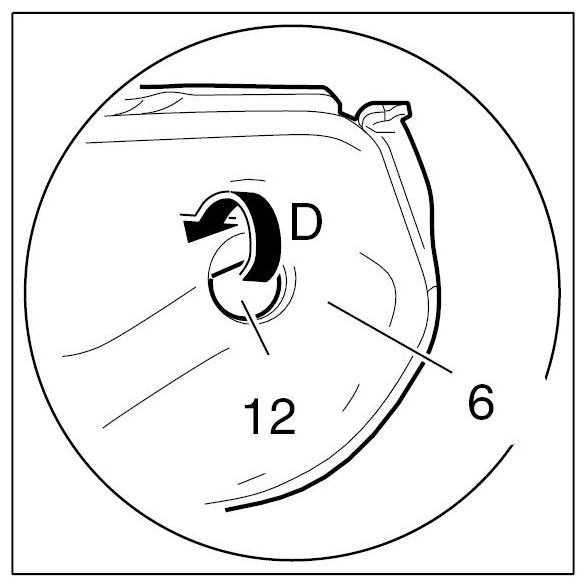

Pull cover for backrest -6- over the pin -12- -Arrow D- .

Fig 4: Pulling Cover For Backrest - 6 Over Pin - 12
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press piping -11- of cover for backrest -6- completely into the backrest frame in direction of arrow -14- -Arrow B- .

Fig 5: Pressing Backrest Cover Piping
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

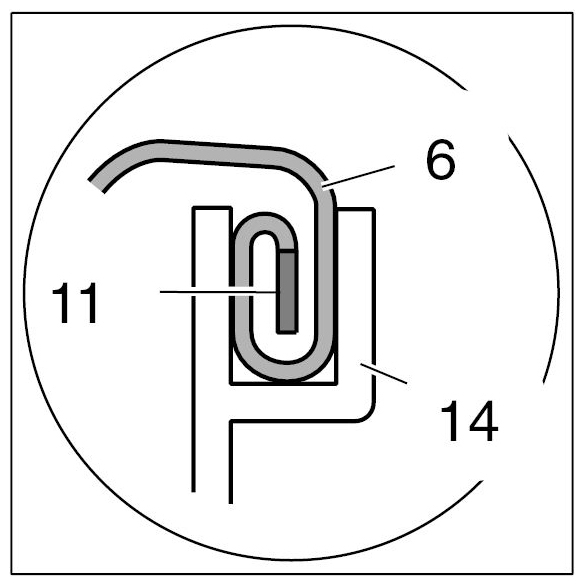

Fig 6: Identifying Backrest Cover Piping
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

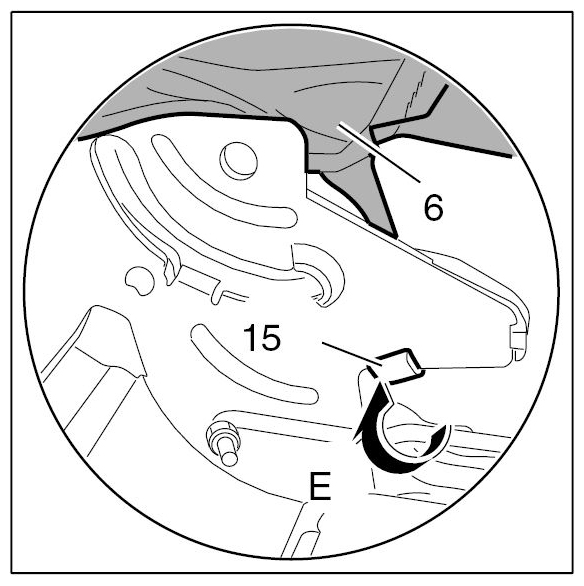

Engage hook -15- of covering for backrest -6- -Arrow E- .

Fig 7: Engaging Backrest Covering Hook
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

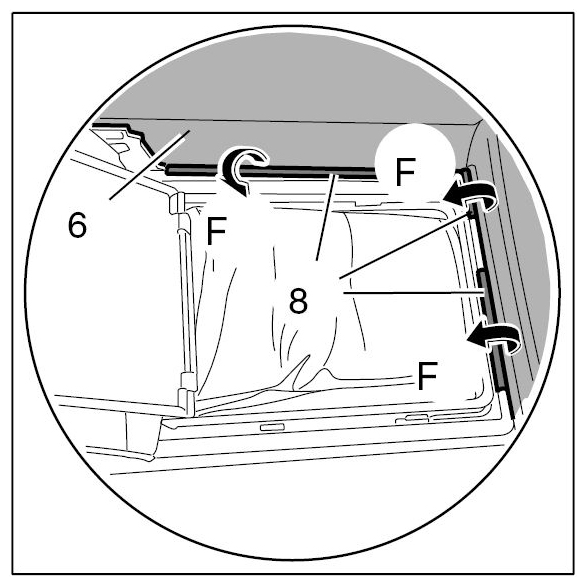

Engage plastic strips -8- of covering for backrest -6- -Arrows F- .

Fig 8: Engaging Backrest Covering Plastic Strips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

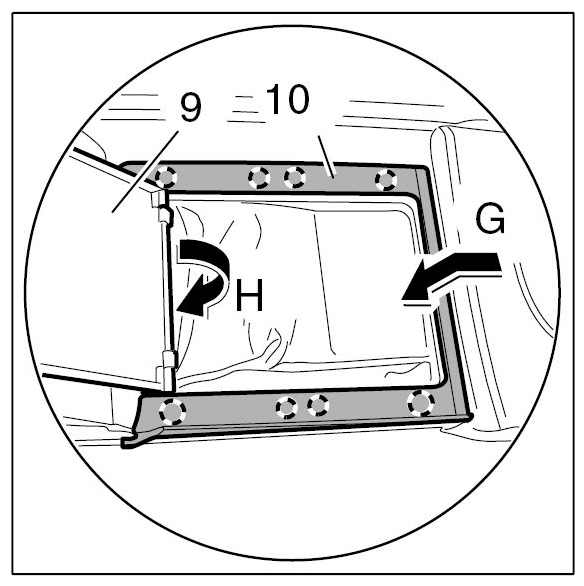

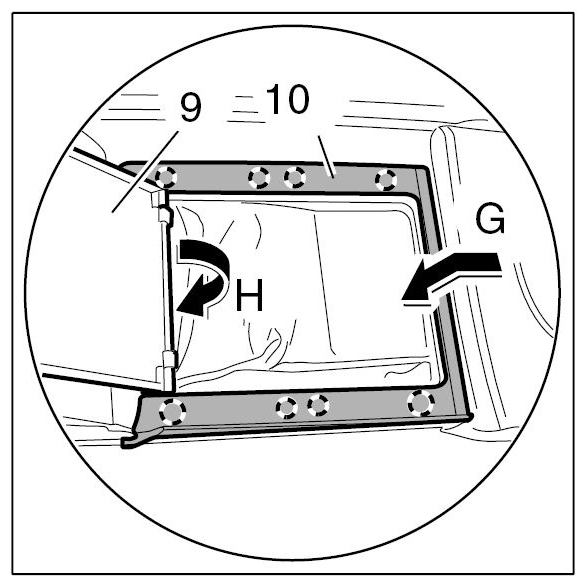

Install cover of load-though provision: Insert cover of load-through provision -10- -Arrow G- and clip in -circle marks- .

Fig 9: Installing Cover Of Load-Though Provision
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close front lid -9- (-Arrow H-) .

Fig 10: Closing Front Lid - 9
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

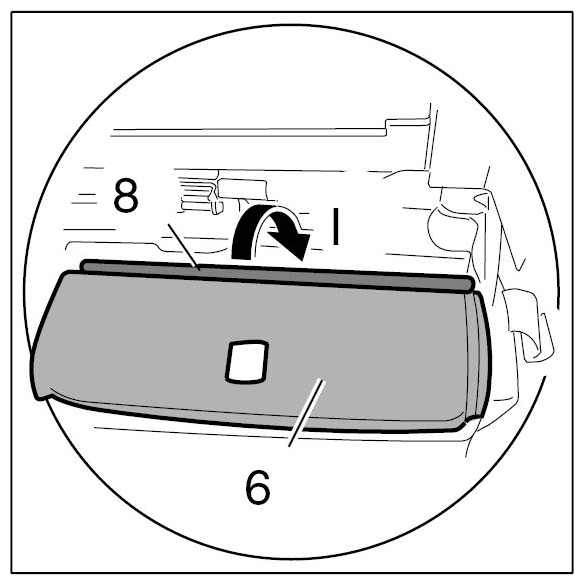

Engage plastic strip -8- of cover for backrest -6- on backrest frame -Arrow I- .

Fig 11: Engaging Plastic Strip - 8 Of Cover For Backrest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

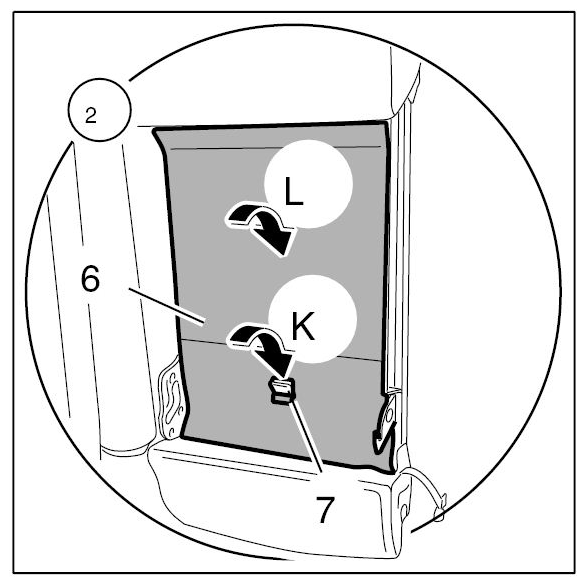

Insert cover for backrest -6- over the holding strap -7- -Arrow K- and fold over -Arrow L- .

Fig 12: Inserting Cover For Backrest - 6 Over Holding Strap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

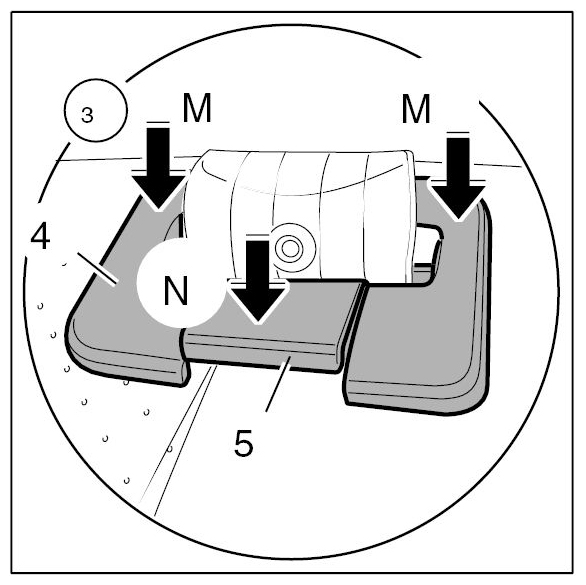

Insert seat belt cover -4- and clip in -Arrows M- .

Fig 13: Inserting Seat Belt Cover - 4
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip in cover -5- -Arrow N- .

Fig 14: Clipping Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

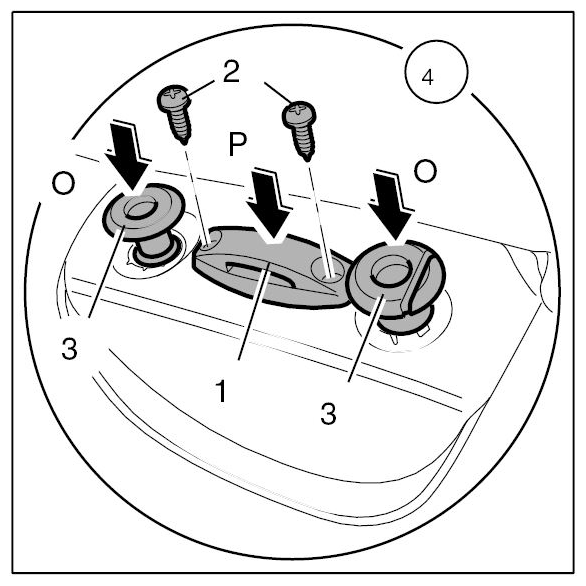

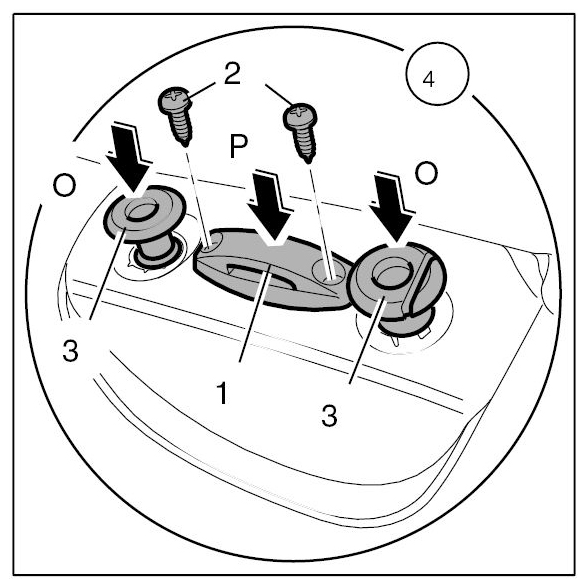

Press in headrest guides-3- -Arrows O- until the locking tabs engage audibly. → Installing Padding For 1/3-Split Folding Rear Backrest

Fig 15: Pressing Headrest Guides - 3
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position the support -1- -Arrow P- .

Fig 16: Positioning Headrest Support - 1
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in and tighten fastening screws -2-. → Tightening torque: 4.5 Nm (3.5 ftlb.)+/-0.5 Sekunden (+/-0.5 ftlb.)

Fig 17: Installing Headrest Support Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
