Removing Lock For 1/3-Split Folding Rear Backrest

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

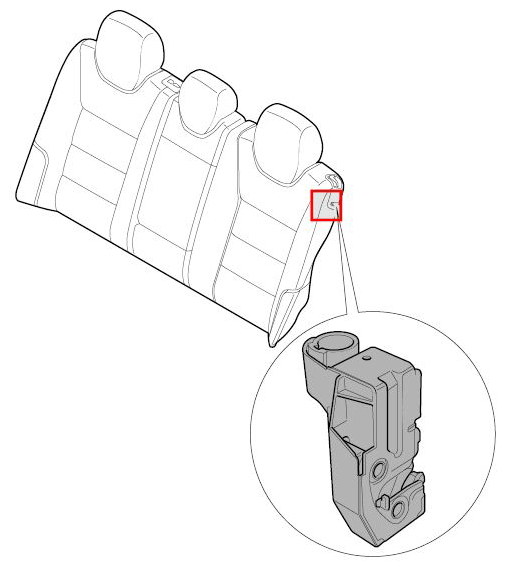

Fig 1: Identifying 1/3-Split Folding Rear Backrest

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Folding rear backrest forward
Remove cover for rear backrest.

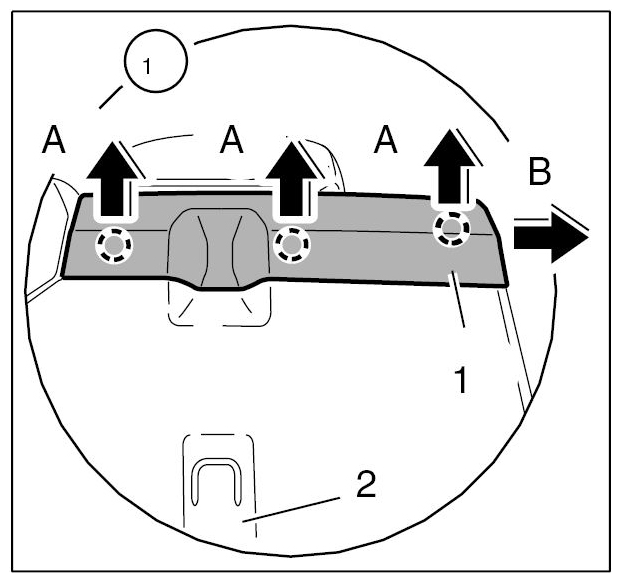

1. 2.1. Unclip cover for rear backrest -1- at fastening clips -2- -Arrows A- and pull out to the right -Arrow B- .

  Fig 2: Removing Rear Backrest Cover Clip
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

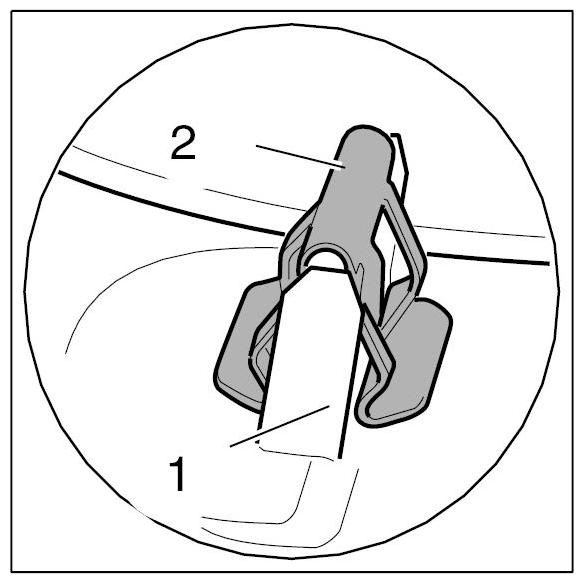

  Fig 3: Identifying Rear Backrest Cover And Fastening Clips
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove cover of lock for rear backrest.

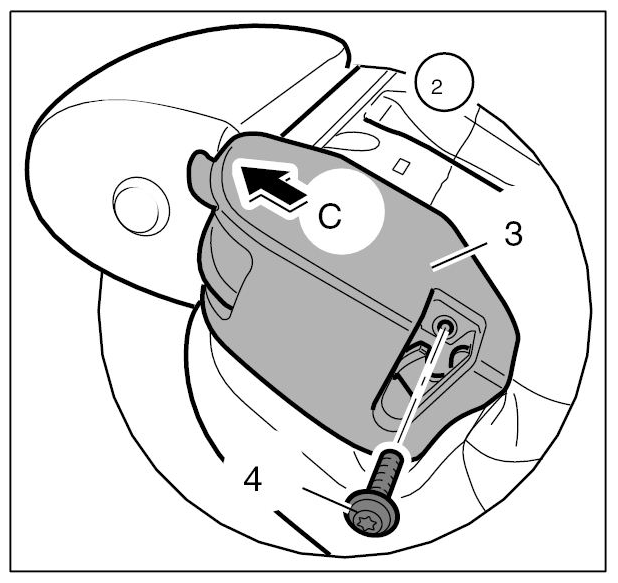

1. 3.1. Unscrew fastening screws -4- , -5- .
2. 3.2. Remove cover of lock for rear backrest -3- by pulling it forwards -Arrow C- .

  Fig 4: Removing Rear Backrest Lock Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

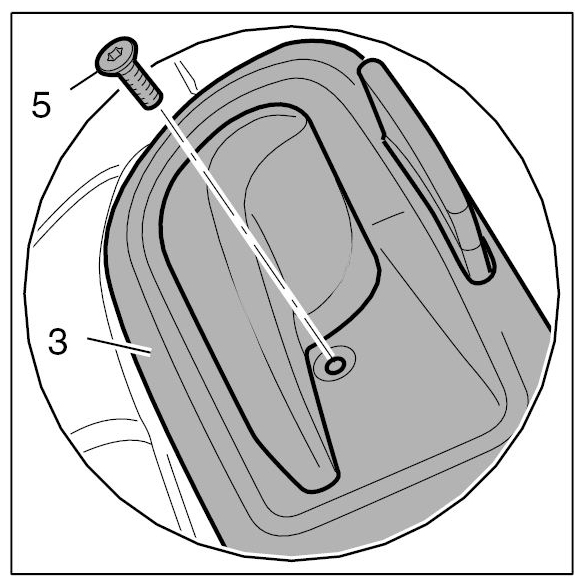

  Fig 5: Identifying Rear Backrest Lock Cover Fastening Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

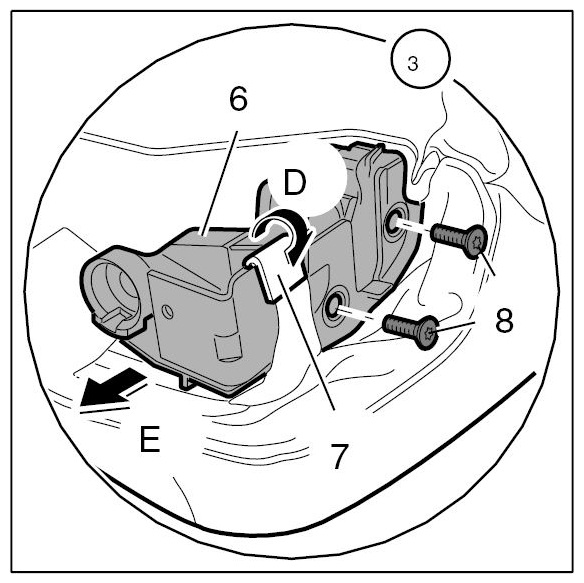

Disengage cover piping -7- -Arrow D- .

Fig 6: Disengaging Cover Piping
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Undo fastening screws -8- .

Fig 7: Identifying Cover Piping Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull out lock for backrest -6- -Arrow E- .

Fig 8: Removing Backrest Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
