Installing Lock For 1/3-Split Folding Rear Backrest

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

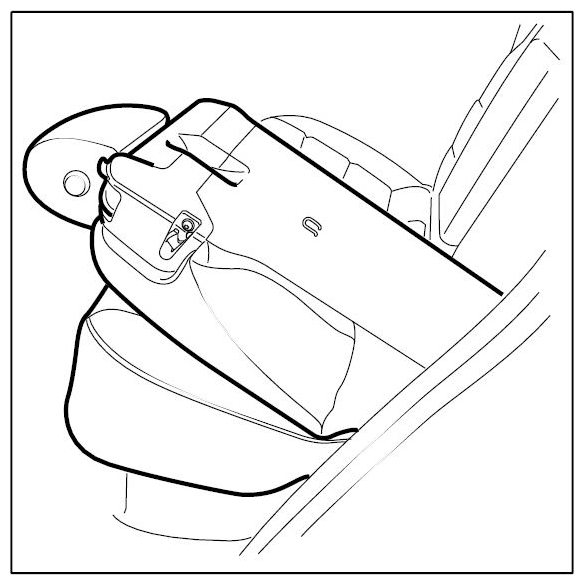

Fig 1: Identifying 1/3-Split Folding Rear Backrest

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

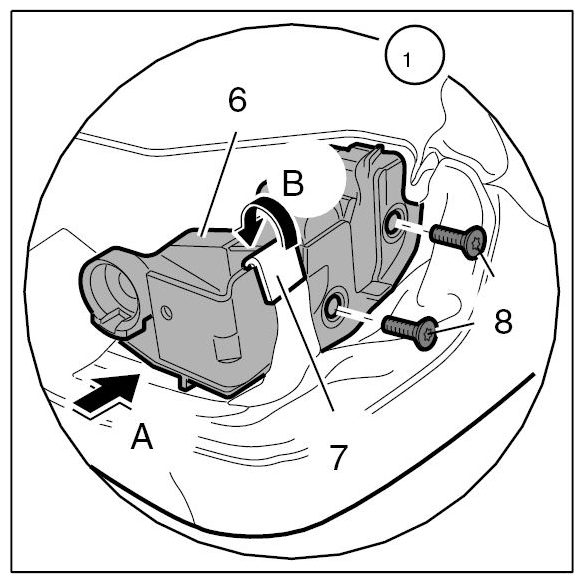

Insert lock for backrest -6- -Arrow A- .

Fig 2: Inserting Backrest Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in fastening screws -8- and tighten to the specified torque. → Tightening torque: 20 Nm (15 ft lbs.)+/-2 Nm (+/-1.5 ft lbs.)

Fig 3: Installing Backrest Lock Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

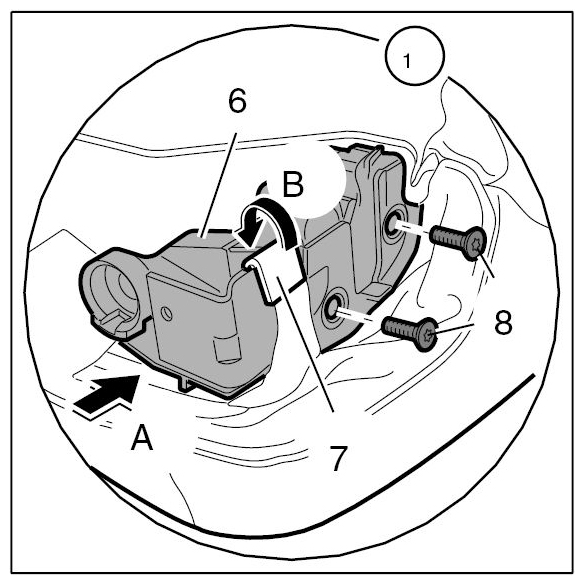

Engage cover piping -7- -Arrow B- .

Fig 4: Engaging Cover Piping
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

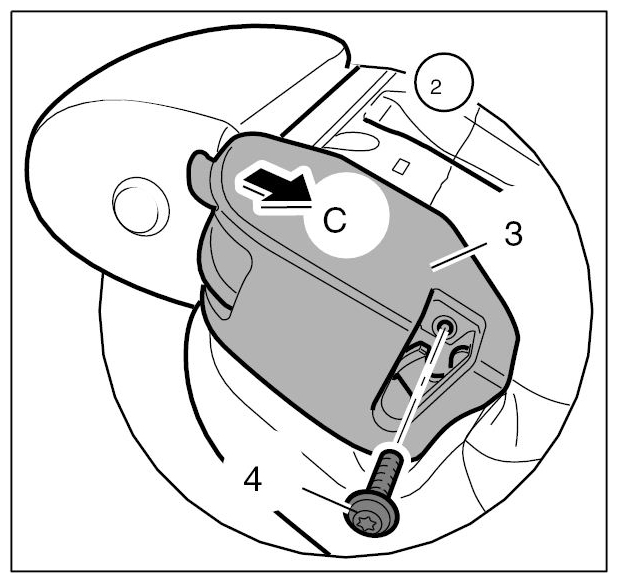

Insert cover of lock for rear backrest -3- -Arrow C- . The release lever guides -9- must engage perfectly in the supports of the locking mechanism -10- .

Fig 5: Inserting Cover Of Lock For Rear Backrest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

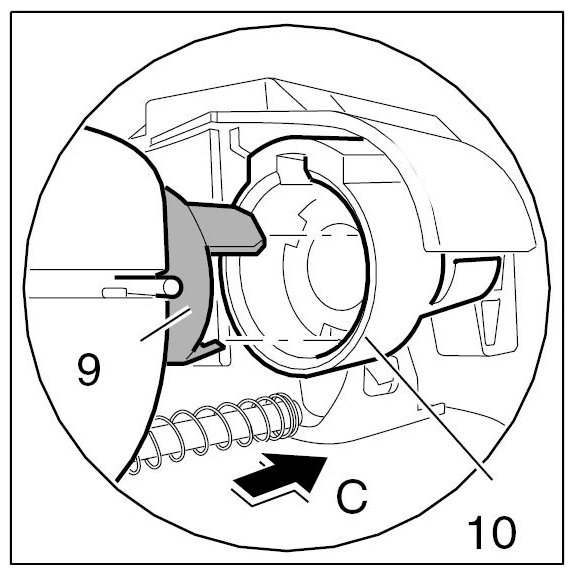

Fig 6: Installing Release Lever Guides Into Locking Mechanism
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

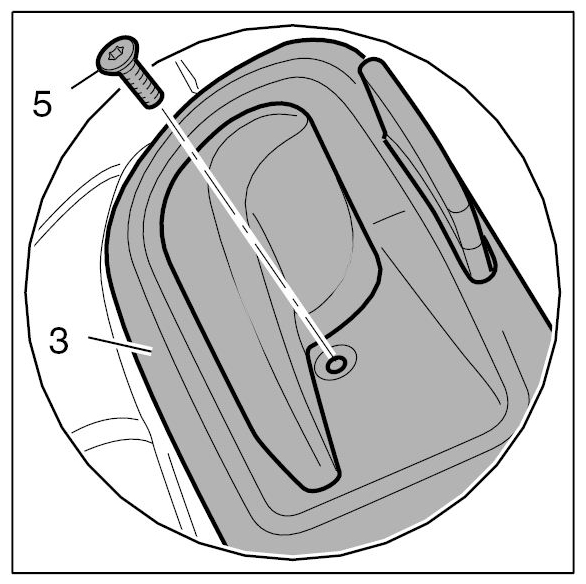

Screw in fastening screws -4- , → Tightening torque: 4.5 Nm (3.5 ft lbs.)+/-0.5 Nm (+/-0.5 ft lbs.) Screw in fastening screw -5- . → Tightening torque: 2.5 Nm (2.0 ft lbs.)+/-0.2 Nm (+/-0.2 ft lbs.)

Fig 7: Installing Rear Backrest Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 8: Identifying Rear Backrest Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install cover for rear backrest.

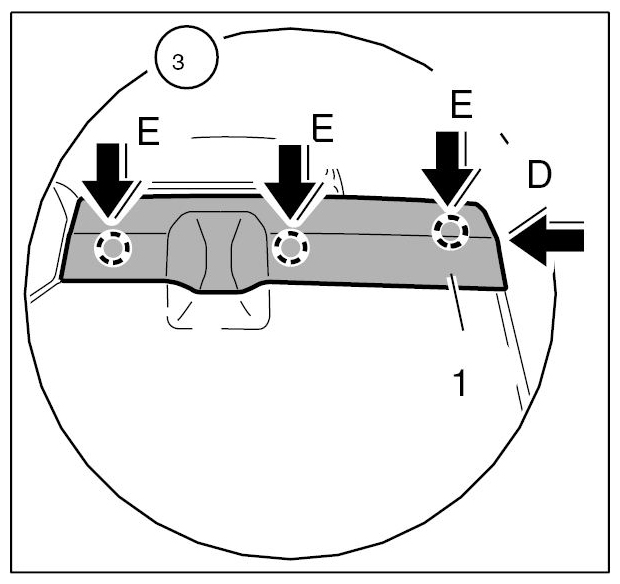

1. 6.1. Insert cover for rear backrest -1- -Arrow D- and clip in on the fastening clips -2- -Arrows E- .

  Fig 9: Installing Rear Backrest Cover Fastening Clips
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

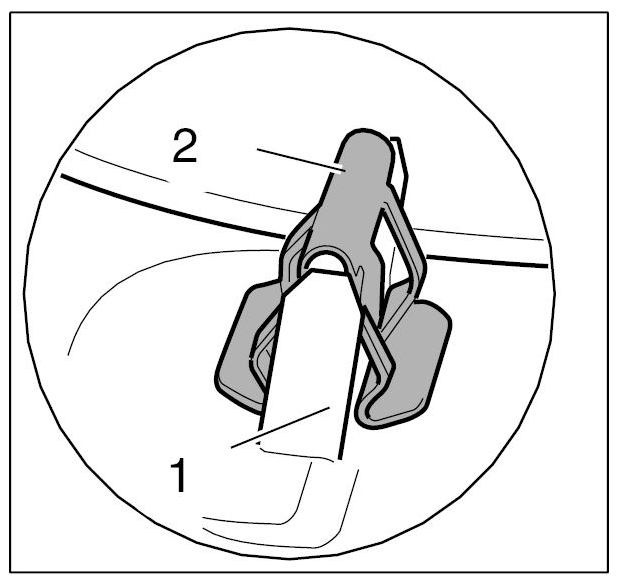

  Fig 10: Identifying Rear Backrest Cover And Clips
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fold rear backrest back.
