Installing Cover For 2/3-Split Folding Rear Bench

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

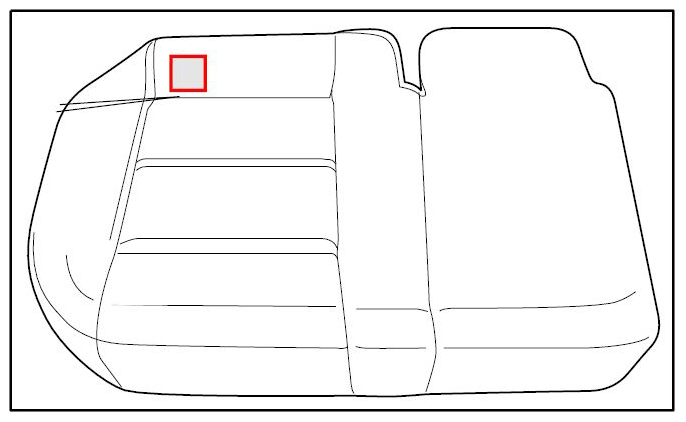

Fig 1: Identifying 2/3-Split Folding Rear Bench Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

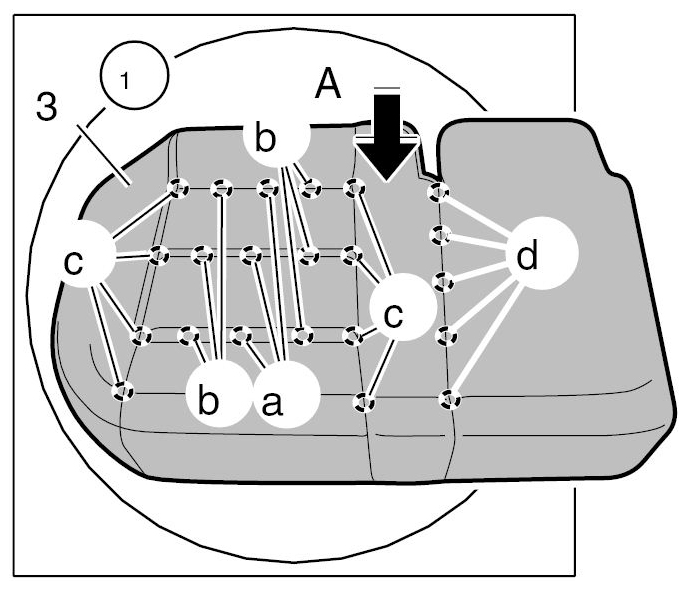

Install cover: Place cover -3- on the padding -Arrow A- and align with contour of padding.

Fig 2: Placing Cover On Padding
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

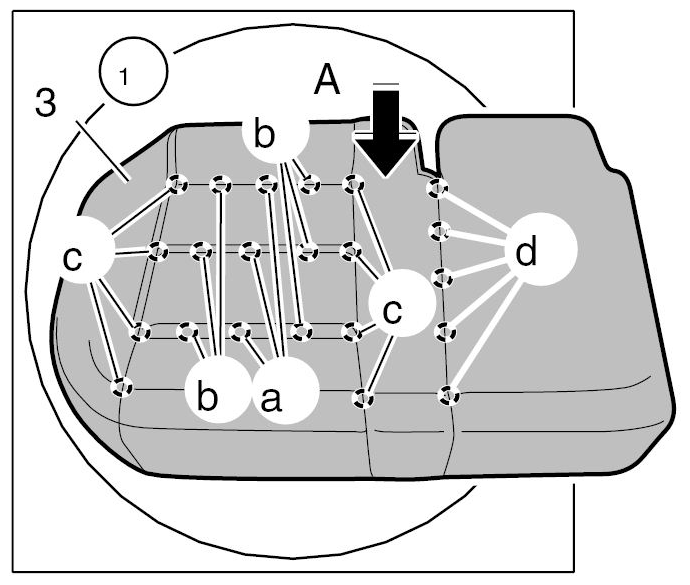

Fasten cover -3- to the padding using cushion clip pliers -4- and new cushion clips -2- in the order shown -a to d- . → 745019 REMOVING AND INSTALLING PADDING FOR 2/3-SPLIT REAR BENCH

Fig 3: Installing Padding For 2/3-Split Rear Bench
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

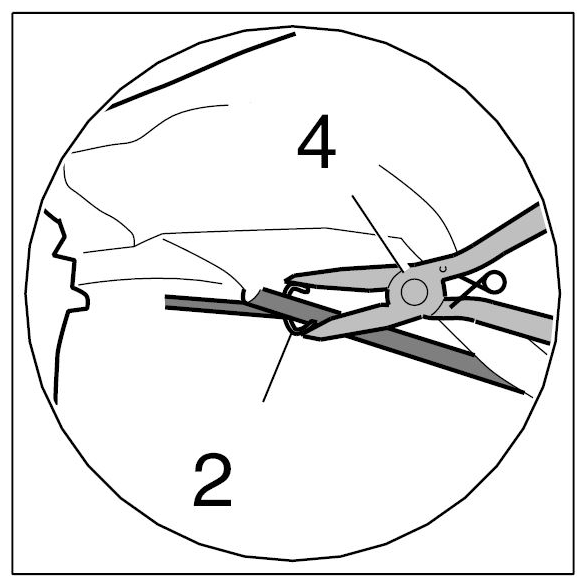

Fig 4: Installing Cushion Clips Using Cushion Clip Pliers
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

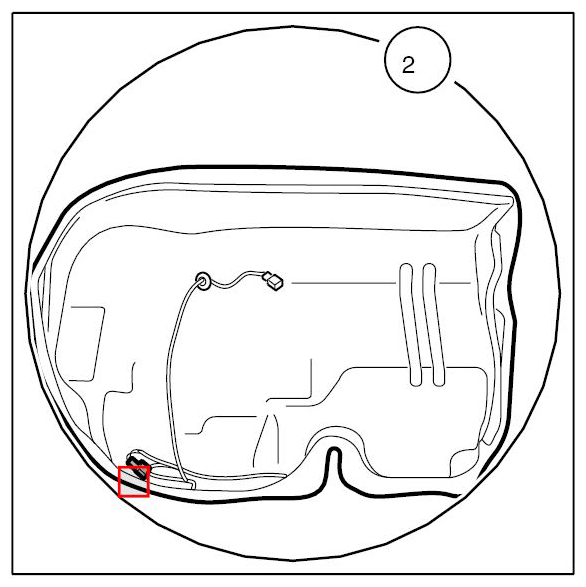

Fig 5: Installing Cover For 2/3-Split Folding Rear Seat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

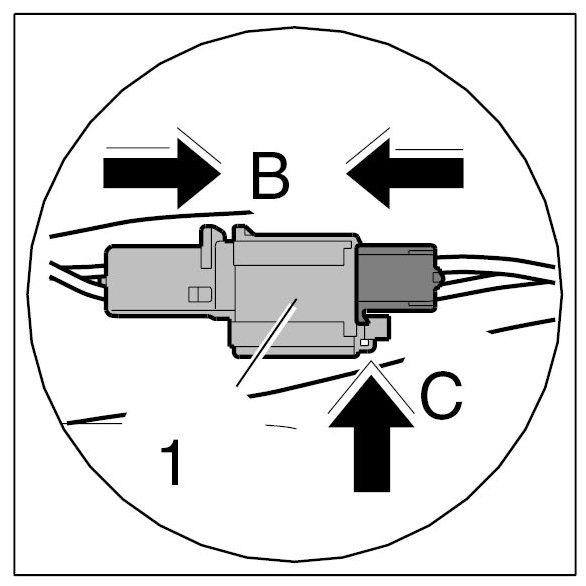

Connect plug connection (only for vehicles with heated seats): Push together the plug connection -1- -Arrows B- until the locking tab audibly engages -Arrow C- .

Fig 6: Pushing 2/3-Split Folding Rear Seat Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install padding for rear seat: → Installing Padding For 1/3 Split Folding Rear Seat

Model year as of 2003
