Installing Padding For 2/3-Split Folding Rear Seat

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

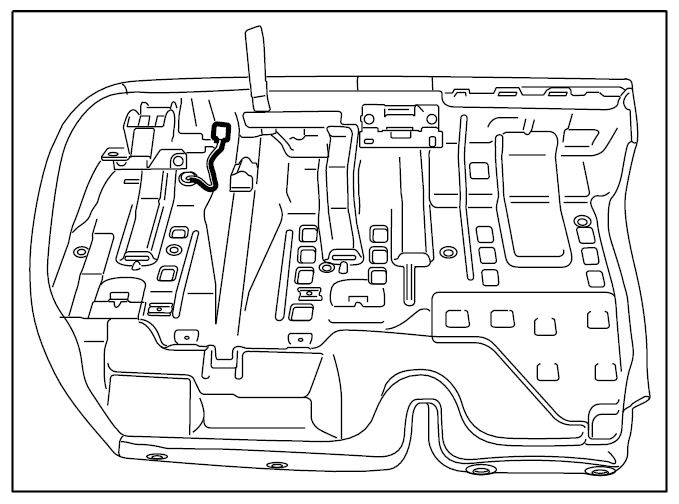

Fig 1: Identifying 2/3-Split Folding Rear Seat

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install cover for rear seat.

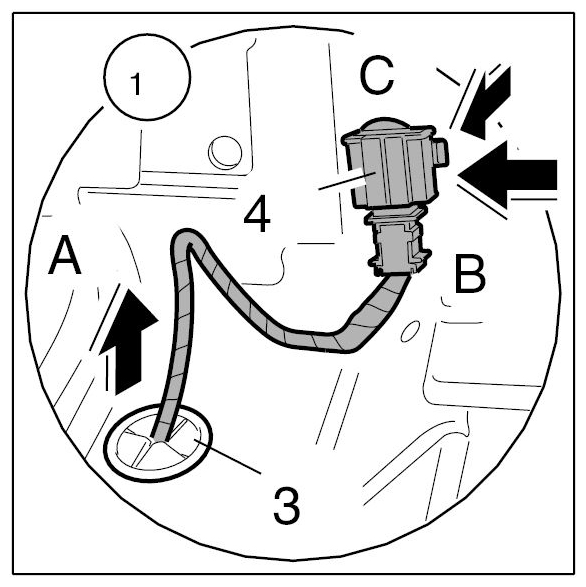

Fasten wire harness for seat heater (only for vehicles with seat heater): Insert connector -4- into the seat frame and fit the grommet -3- -Arrow A- .

Fig 2: Inserting Connector - 4 Into Seat Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push connector -4- into the fastening clip -Arrow B- until the locking tab -Arrow C- engages audibly.

Fig 3: Pushing Connector -4 Into Fastening Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

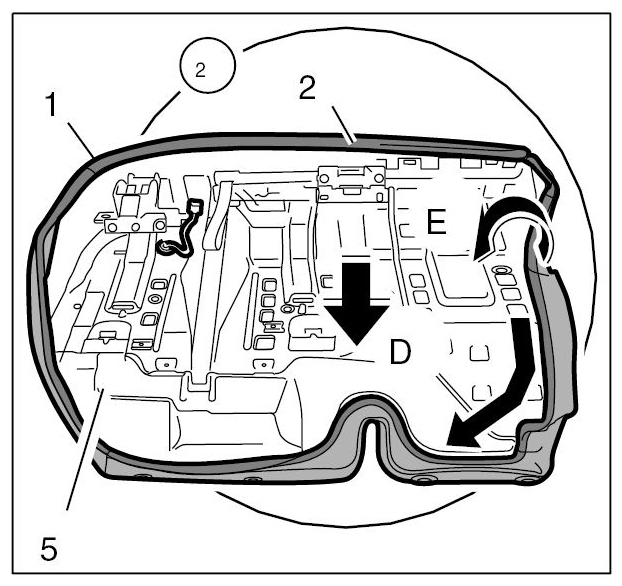

Place seat frame -5- on the padding with cover -1- and align -Arrow D- .

Fig 4: Placing Seat Frame - 5 On Padding
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

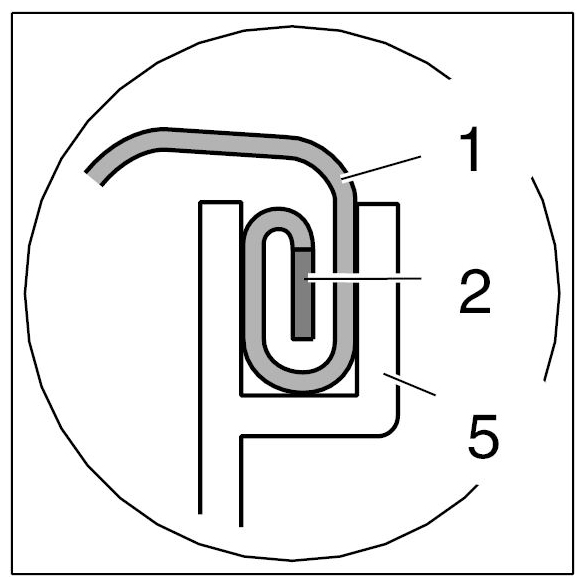

Press piping -2- of cover for rear seat -1- completely into the seat frame in direction of arrow -Arrow E- .

Fig 5: Identifying Rear Seat And Piping
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 6: Press Rear Seat Cover Piping
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install rear seat. → Installing back seat
