Removing Heating Element For Backrest

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

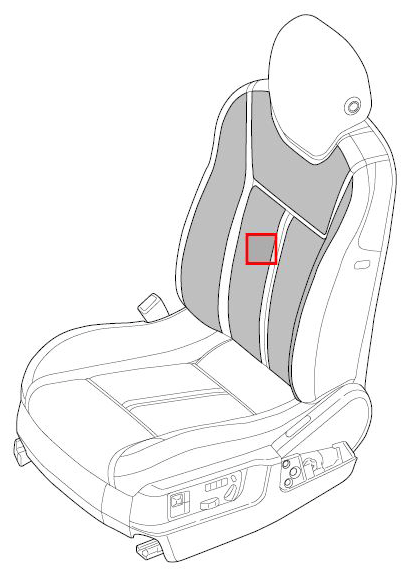

Fig 1: Identifying Backrest Heating Element

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove cover for front backrest.
→ Removing Cover For Front Backrest

Information
- The heating elements beneath the neck rest -1- and backrest side bolsters -2- are connected by electrical leads and can only be replaced together.

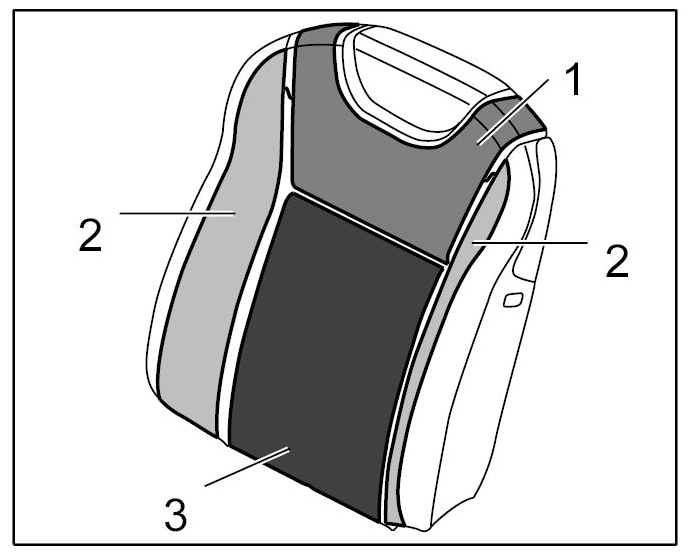

  Fig 2: Identifying Backrest Heating Element Related Components
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- The heating element is sewn into the covering in the area of the backrest surface -3- and can only be replaced together with the covering.
- Remove the heating elements with care, otherwise the padding will be damaged.
- If necessary, carefully warm the heating elements with a hot-air gun. The temperature must not exceed 50 °C
Remove the backrest side bolster heating elements -2- starting from below -Arrows A- .

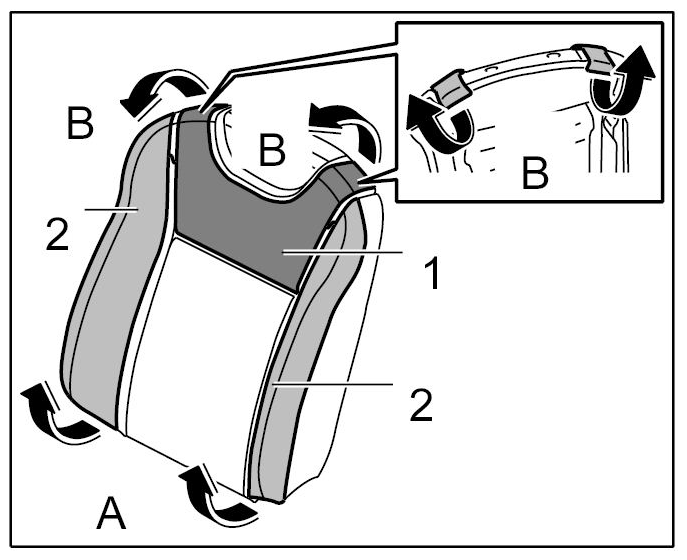

Fig 3: Removing Backrest Side Bolster Heating Elements
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the heating element under the neck rest -1- starting from the rear -Arrows B- .

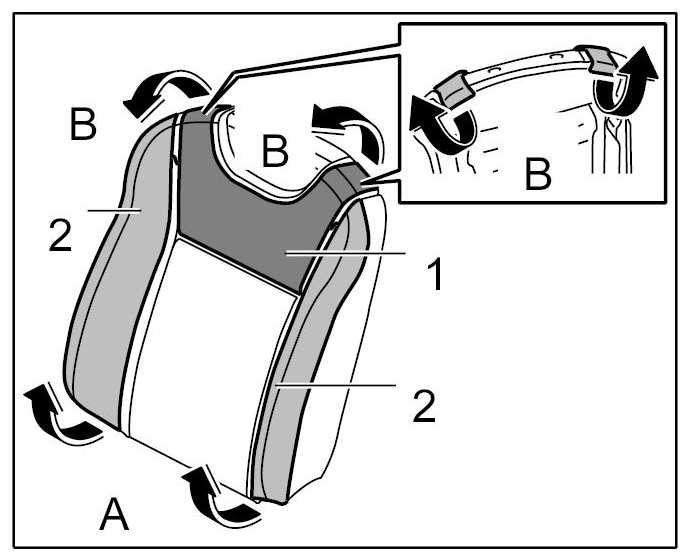

Fig 4: Removing Heating Element Under Neck Rest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
