Removing Cover For Front Backrest

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

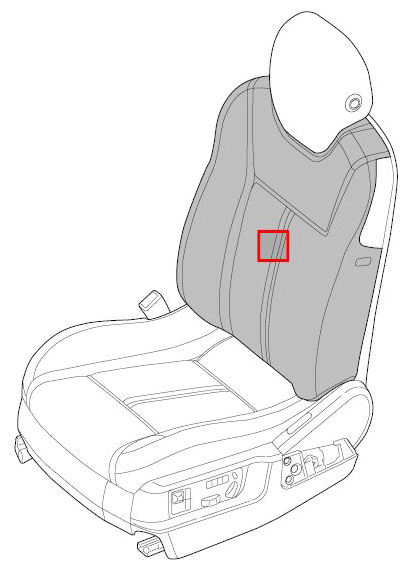

Fig 1: Identifying Front Backrest Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove padding for backrest. → Removing Padding For Front Backrest
Information
- Only in cars with seat heating!

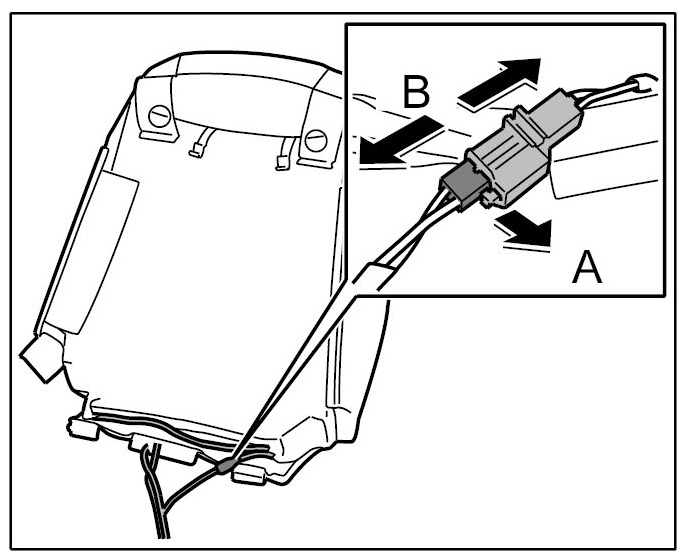

Release plug connection -Arrow A- and disconnect -Arrows B- .

Fig 2: Release Backrest Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

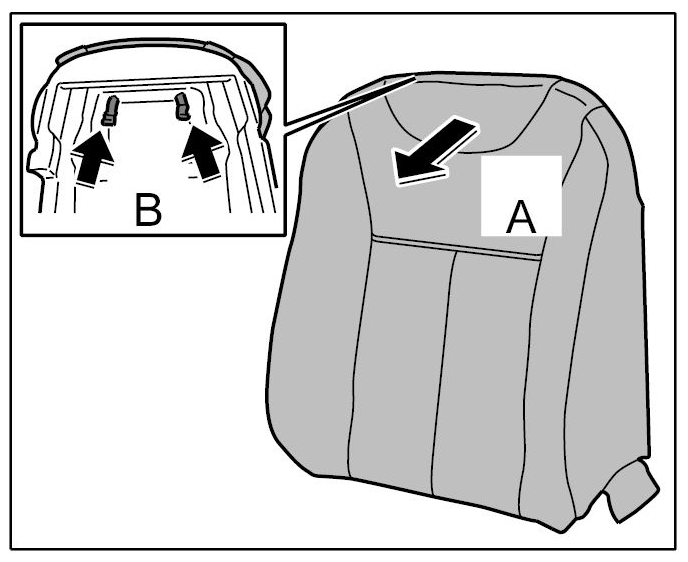

Pull the cover forwards -Arrow A- and push the retaining straps forward through the padding -Arrows B- .

Fig 3: Pulling Backrest Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Detach covering, starting from the outside of the padding.
- Do so in the following sequence: left/right, top/bottom, middle.

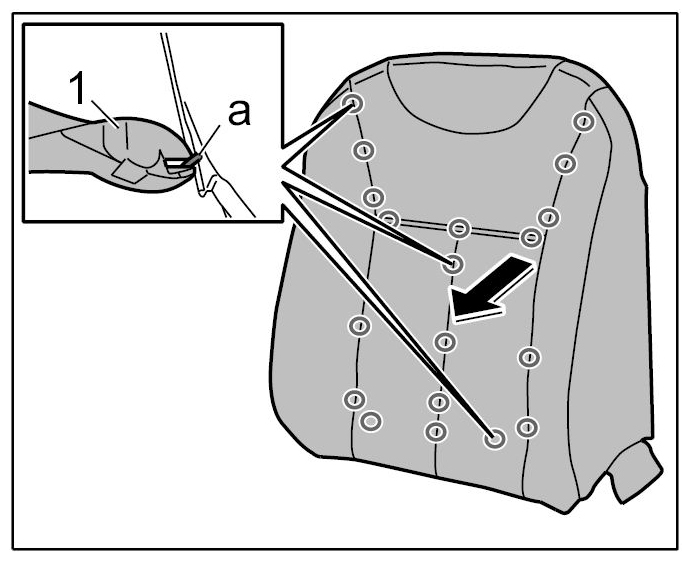

Cut open cushion clips -a- with side cutters -1- and remove cover from padding -arrow- .

Fig 4: Removing Cover From Padding Using Tool
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
