Installing Cover For Backrest

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Place cover on the padding -arrow- and align with contour of padding.

Fig 1: Placing Cover On Padding Using Tool
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Fasten covering to the padding, starting from the middle.
- Do so in the following sequence: middle, top/bottom, left/right.

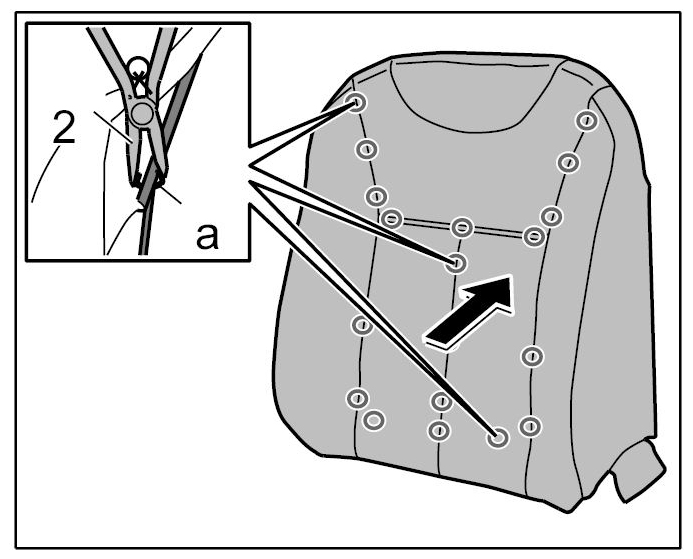

Remove cover using cushion clip pliers Nr.130 -2- → Installing Cover For Front Backrest → -a- to the padding.

Fig 2: Removing Backrest Cover Using Cushion Clip Pliers
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

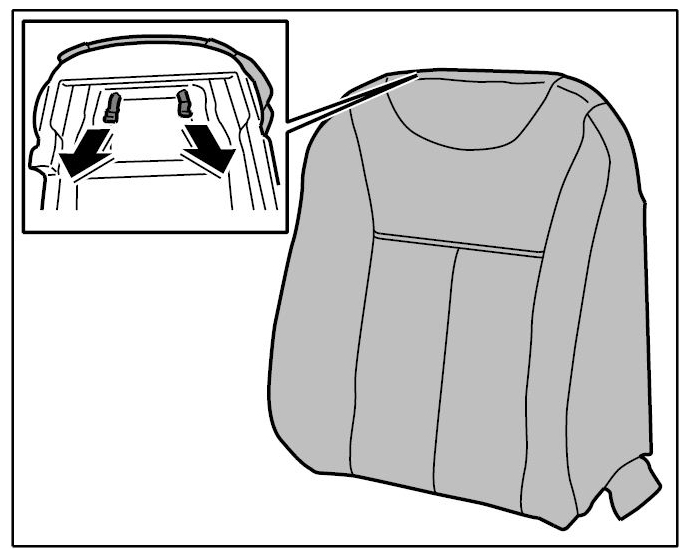

Pull the retaining straps to the rear through the openings in the padding -arrow- .

Fig 3: Pulling Pad Retaining Straps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Only in cars with seat heating!

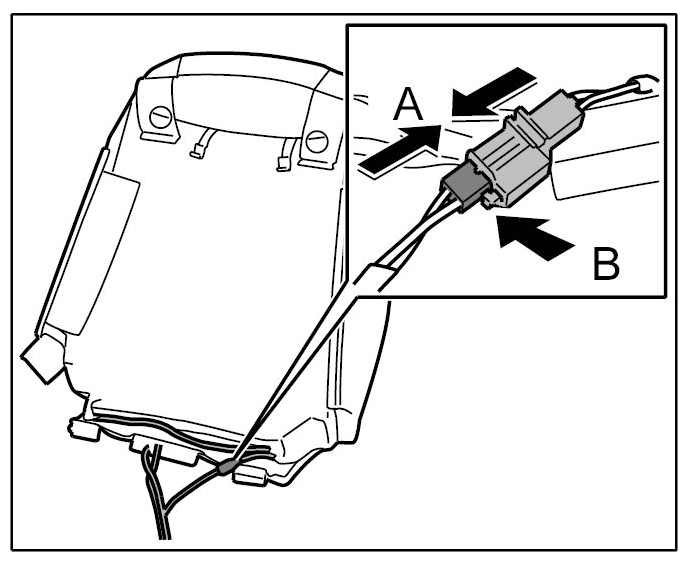

Connect plug connection -arrows A- until locking tab -B- is felt to engage.

Fig 4: Connecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install padding for backrest. → Installing Padding For Front Backrest
